Firing Order (Van & Pickup 2.4L)

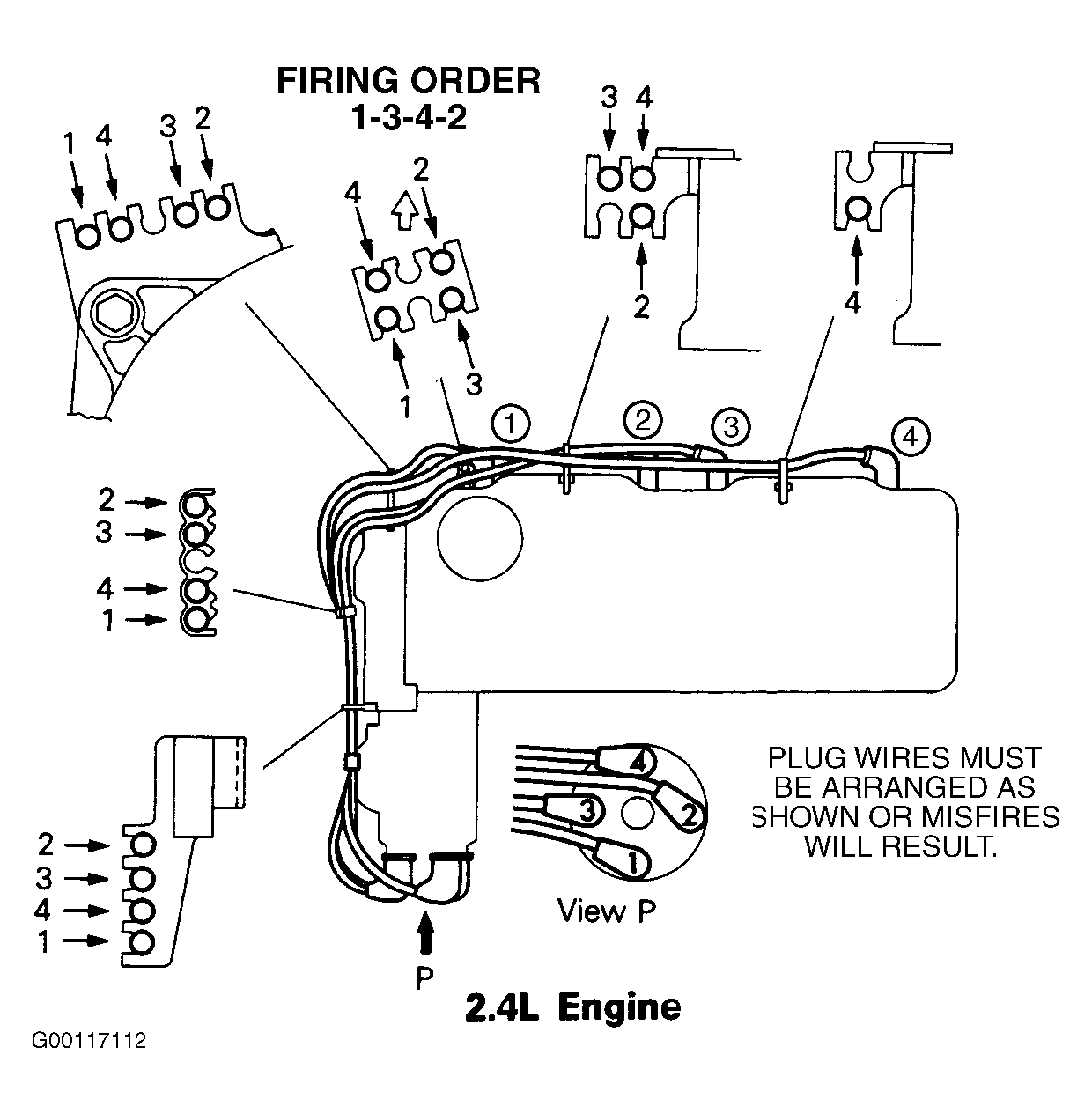

Fig 1: Firing Order & Plug Wire Routing (Van & Pickup 2.4L)
G00117112Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
