Ignition Coil Resistance (Eclipse 2.0L)

Using a DVOM, measure primary coil resistance between ignition coil connector terminals No. 2 and No. 4 (coils for cylinders No. 1 and No. 4) and between terminals No. 4 and No. 1 (coils for cylinders No. 2 and No. 3). See Fig 1 -Fig 2 .

Measure secondary coil resistance between coil towers for cylinders No. 1 and No. 4 and between coil towers for cylinders No. 2 and No. 3. See Fig 3 . Primary and secondary coil resistance should be within specification. See DIS IGNITION COIL RESISTANCE table.

DIS IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)

Application	Primary	Secondary
All Models	.77-.95	10.3-13.9

Fig 1: All Models Except Eclipse 2.0L Testing Ignition Coil Primary Resistance (DIS Models)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

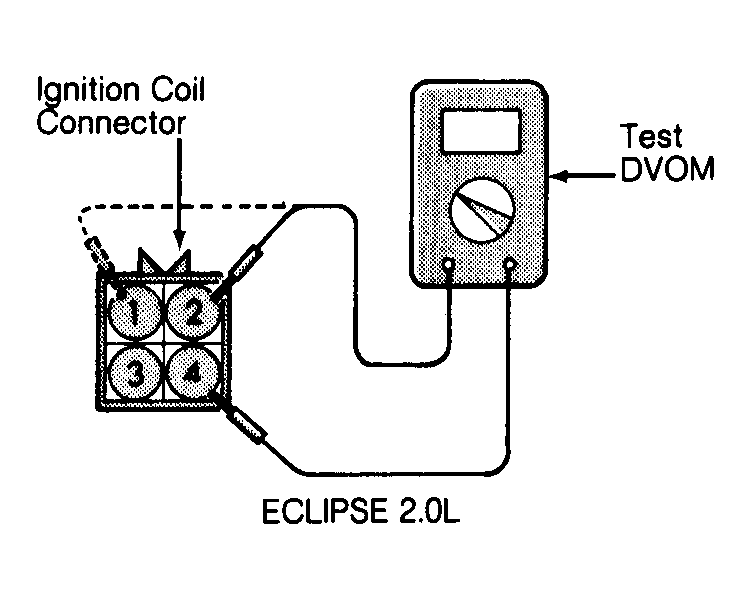

Fig 2: Eclipse 2.0L Testing Ignition Coil Primary Resistance (DIS Models)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Testing Ignition Coil Secondary Resistance (DIS Models)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
