Dr-1: Testing For Fault Codes

Fig 1: Circuit Diagram DR-1 (2.4L)
G90C19978

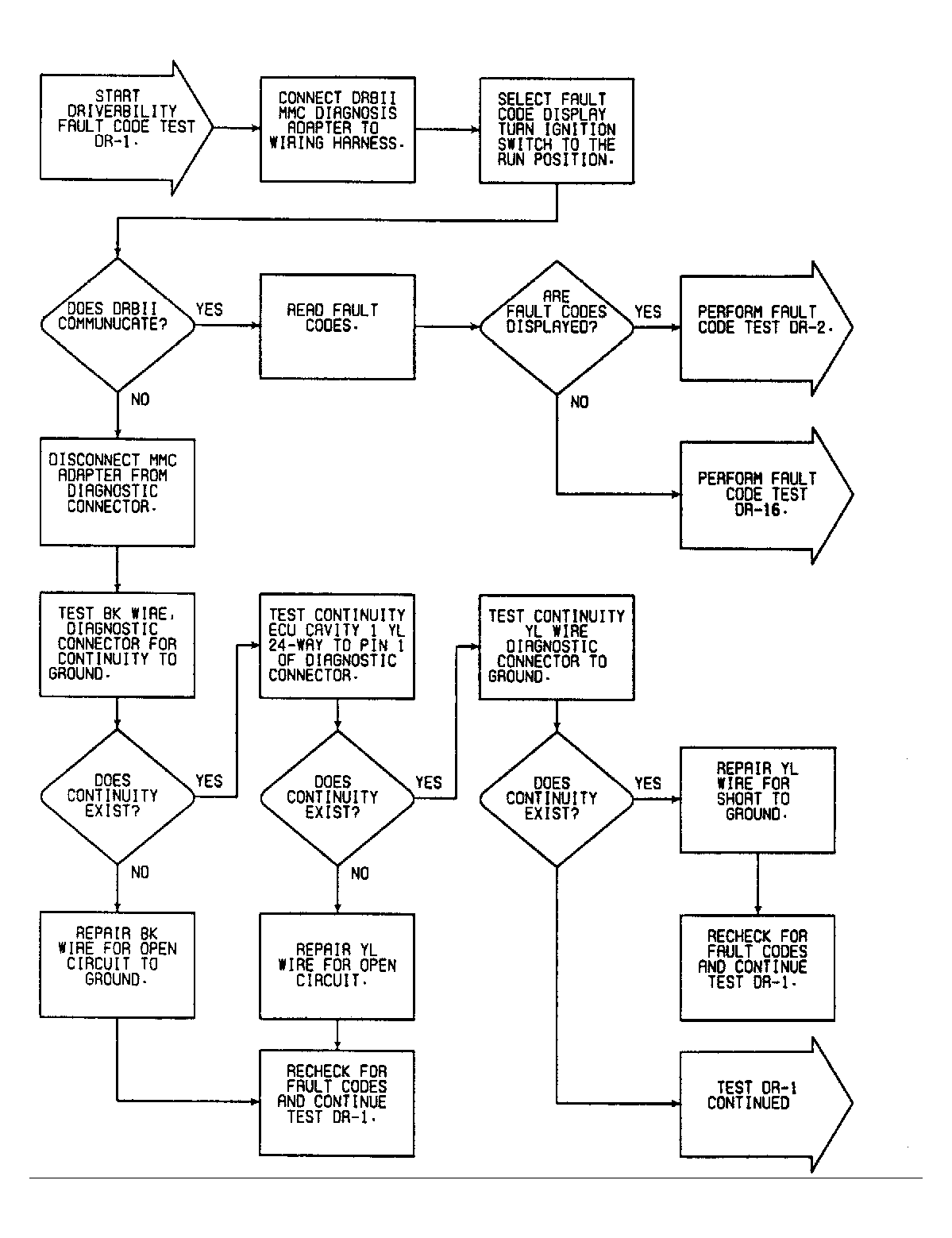

Fig 2: Flow Chart DR-1 (2.4L) (1 of 2)
G90C20018

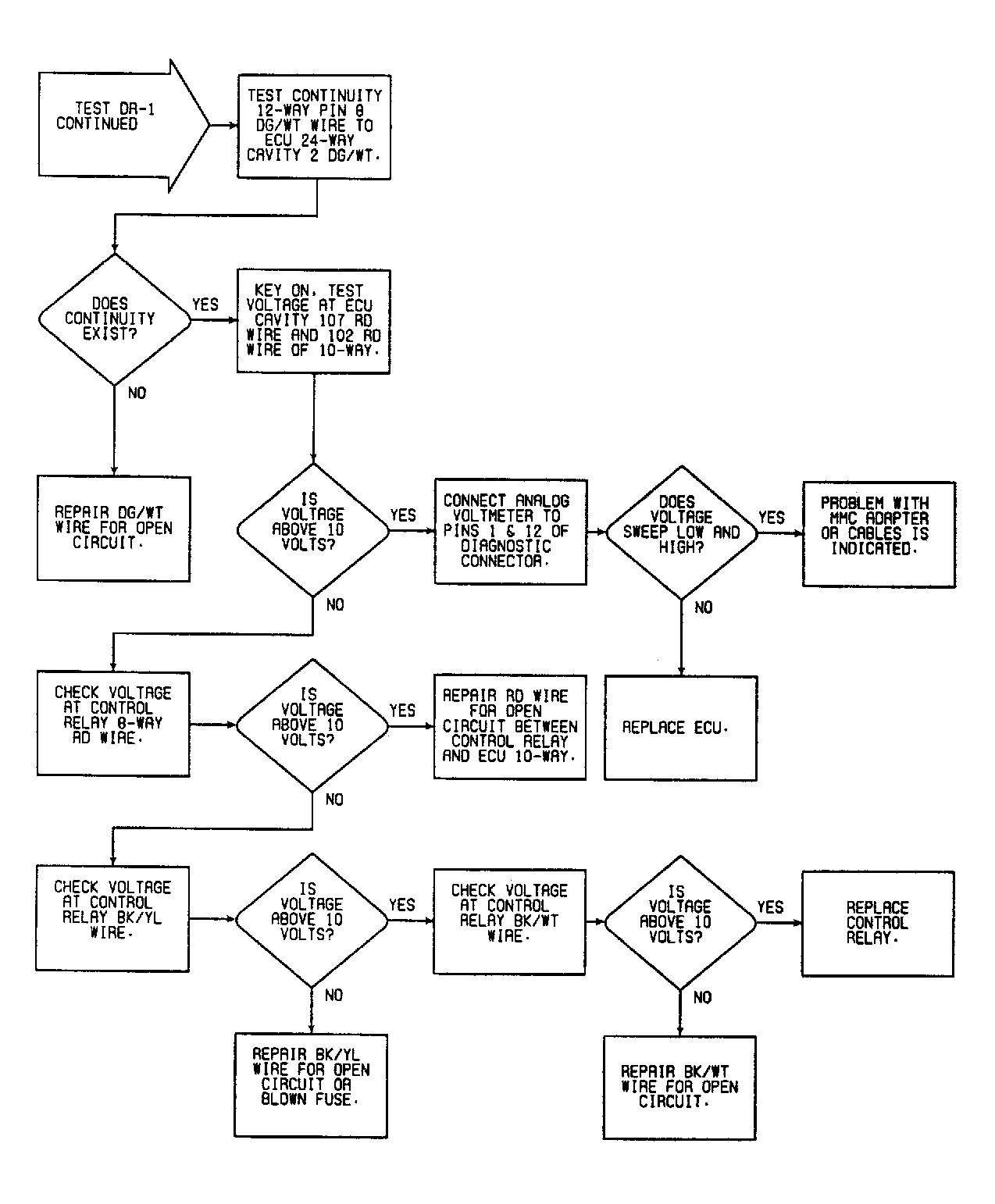

Fig 3: Flow Chart DR-1 (2.4L) (2 of 2)
G90D20019
