Dr-10: Code 23 Top Dead Center Sensor Circuit

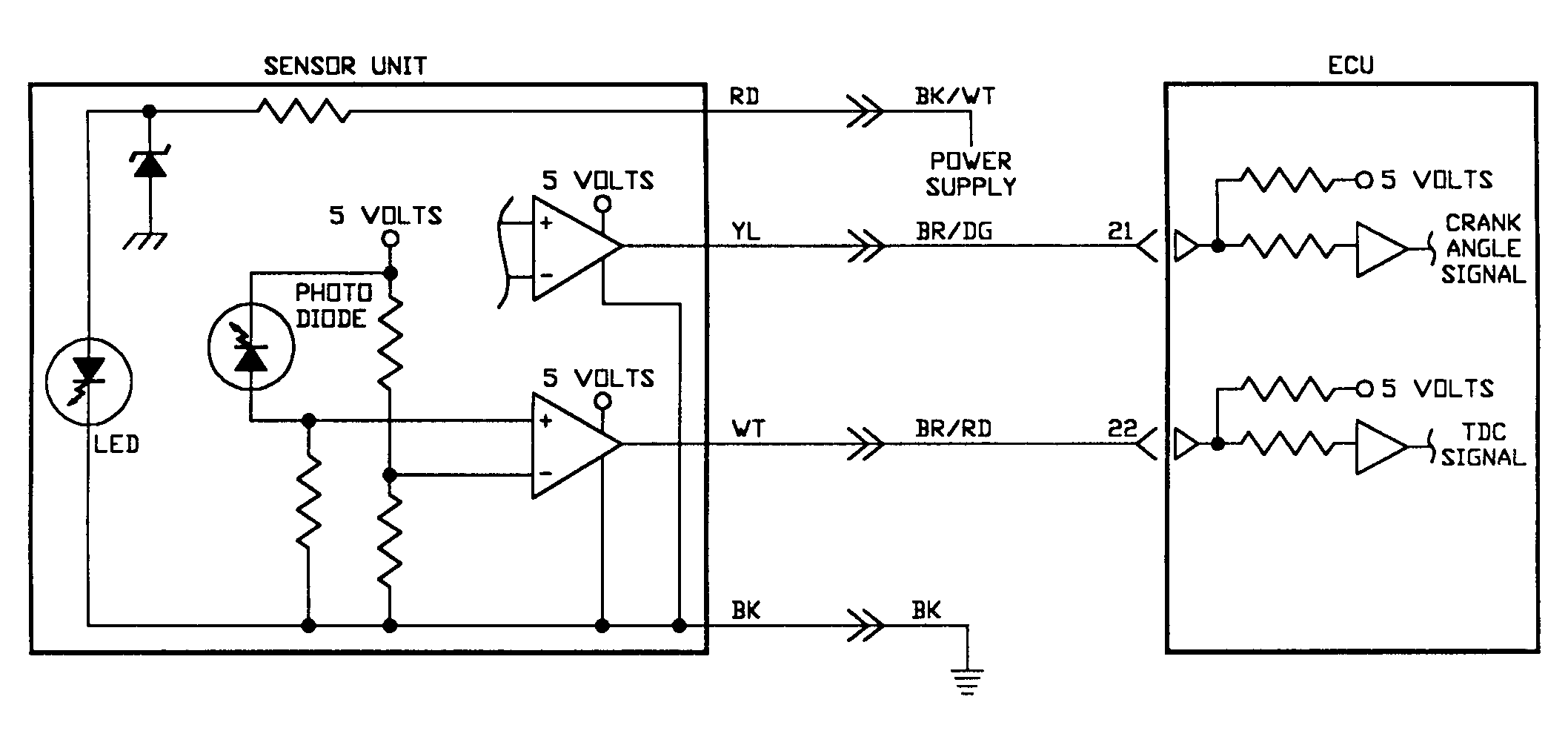

Fig 1: Circuit Diagram DR-10 (2.4L)
G90A19992

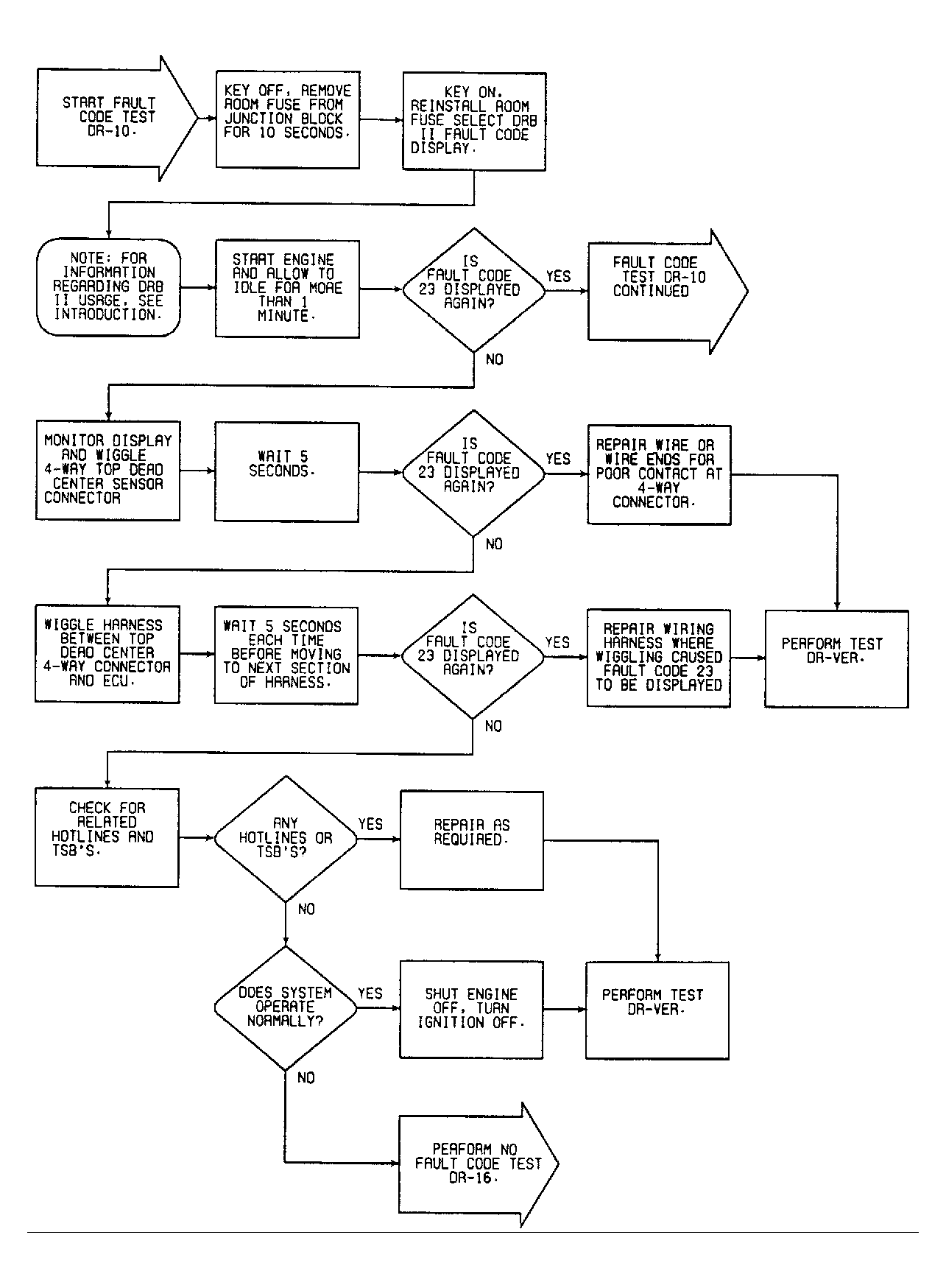

Fig 2: Flow Chart DR-10 (2.4L) (1 of 2)
G90G20038

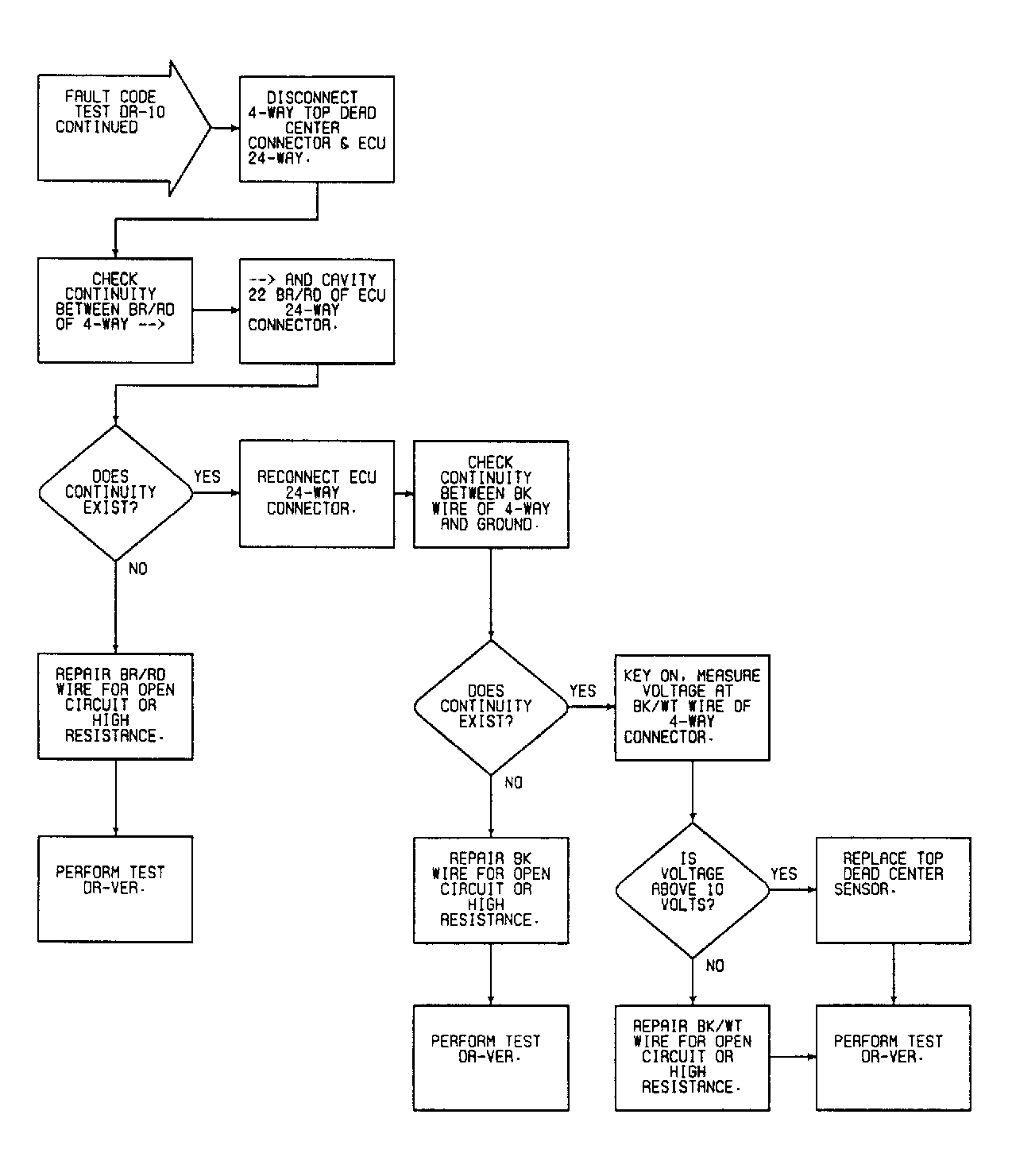

Fig 3: Flow Chart DR-10 (2.4L) (2 of 2)
G90H20039
