Dr-4: Code 12 Airflow Sensor Circuit

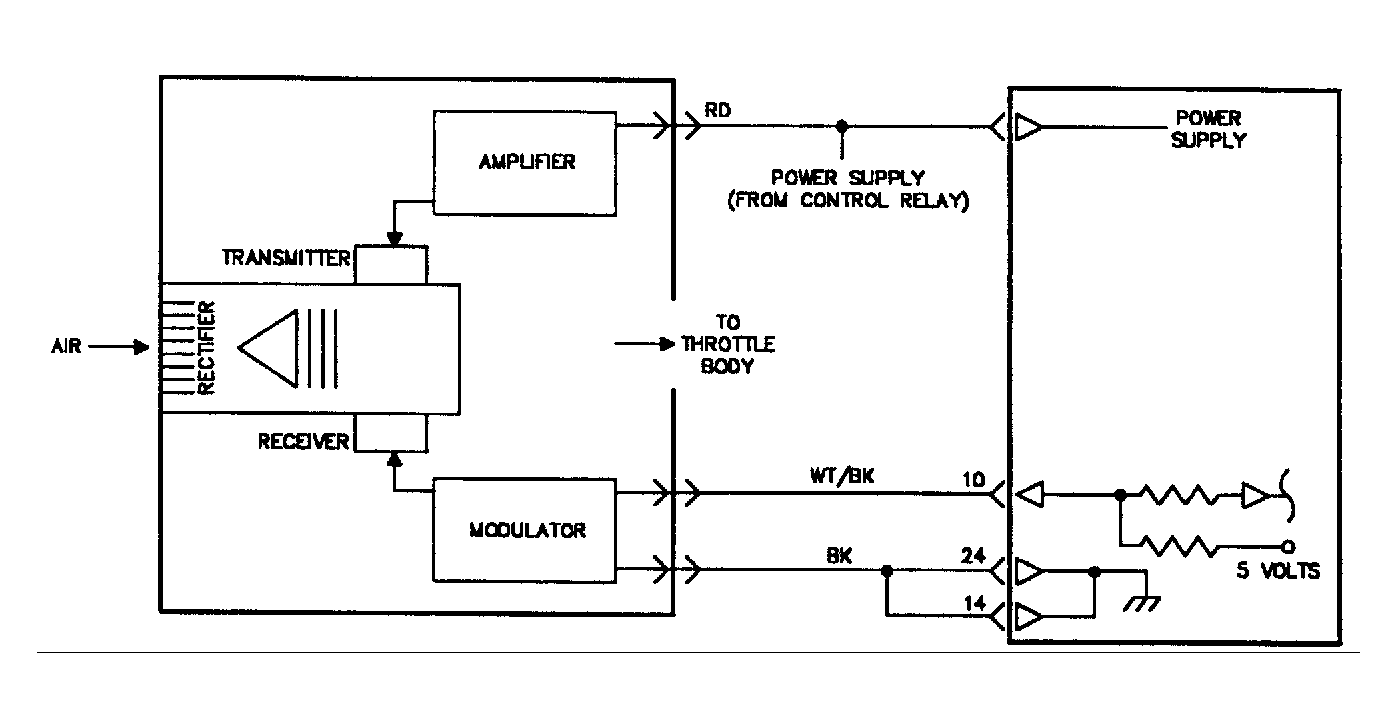

Fig 1: Circuit Diagram DR-4 (2.4L)

G90C19986

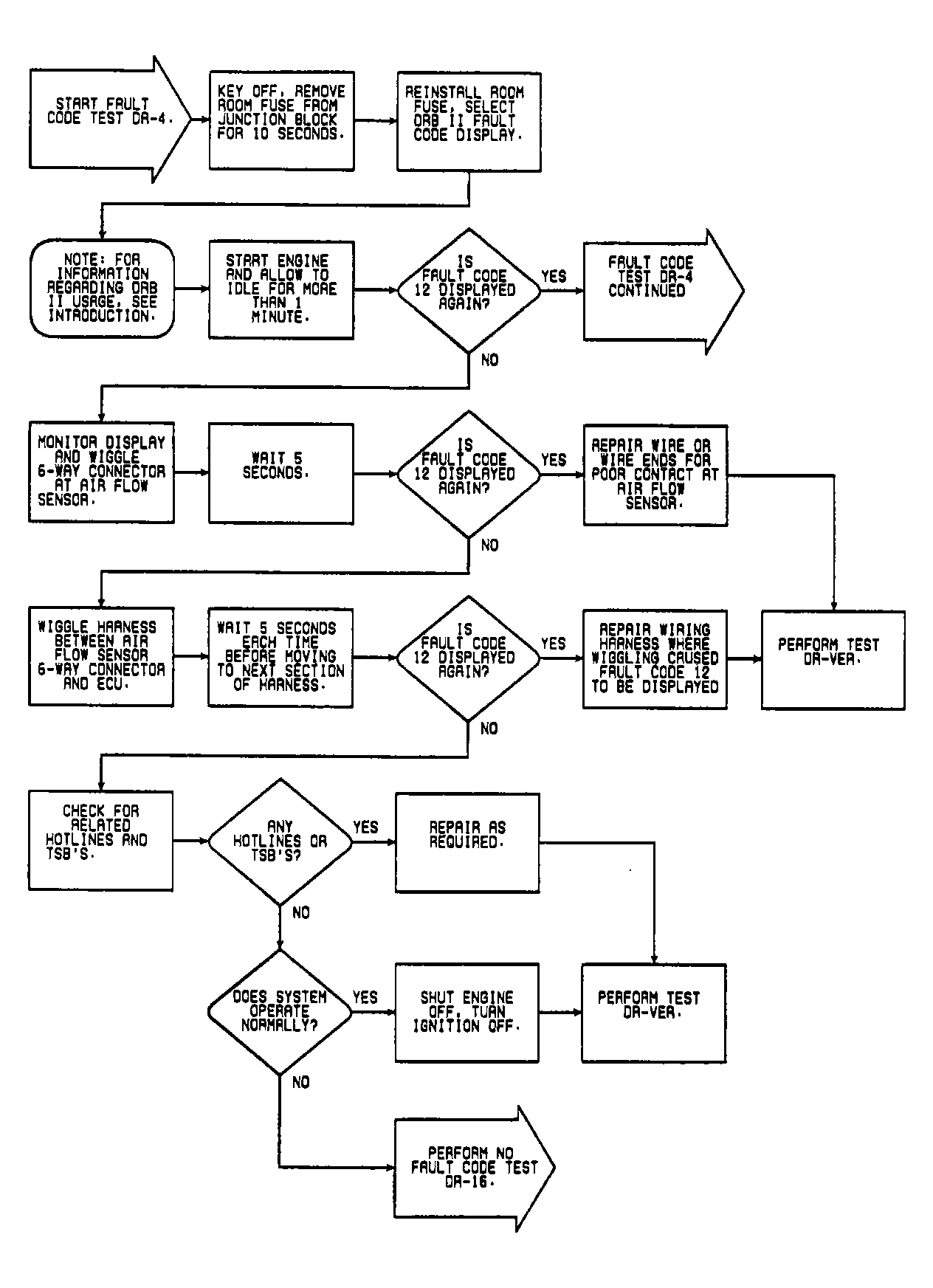

Fig 2: Flow Chart DR-4 (2.4L) (1 of 3)

G90A20024

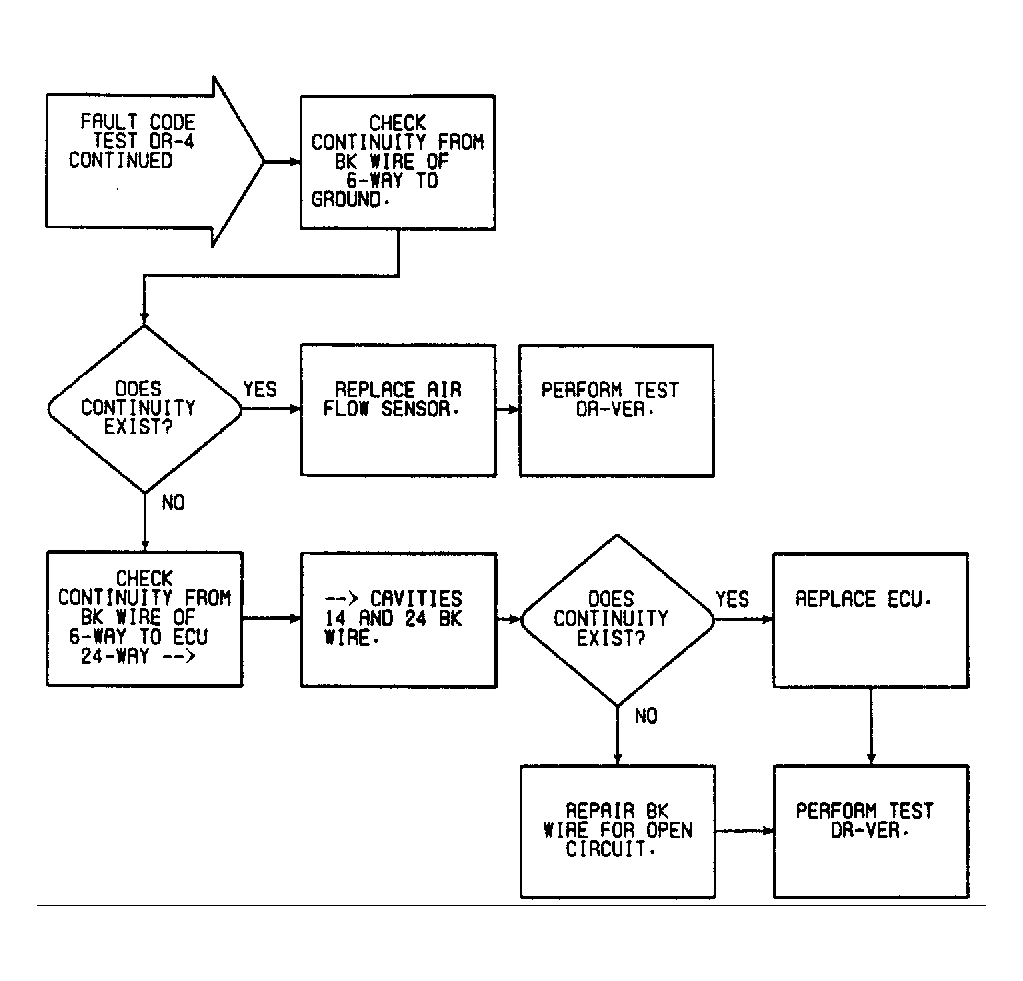

Fig 3: Flow Chart DR-4 (2.4L) (2 of 3)

G90B20025

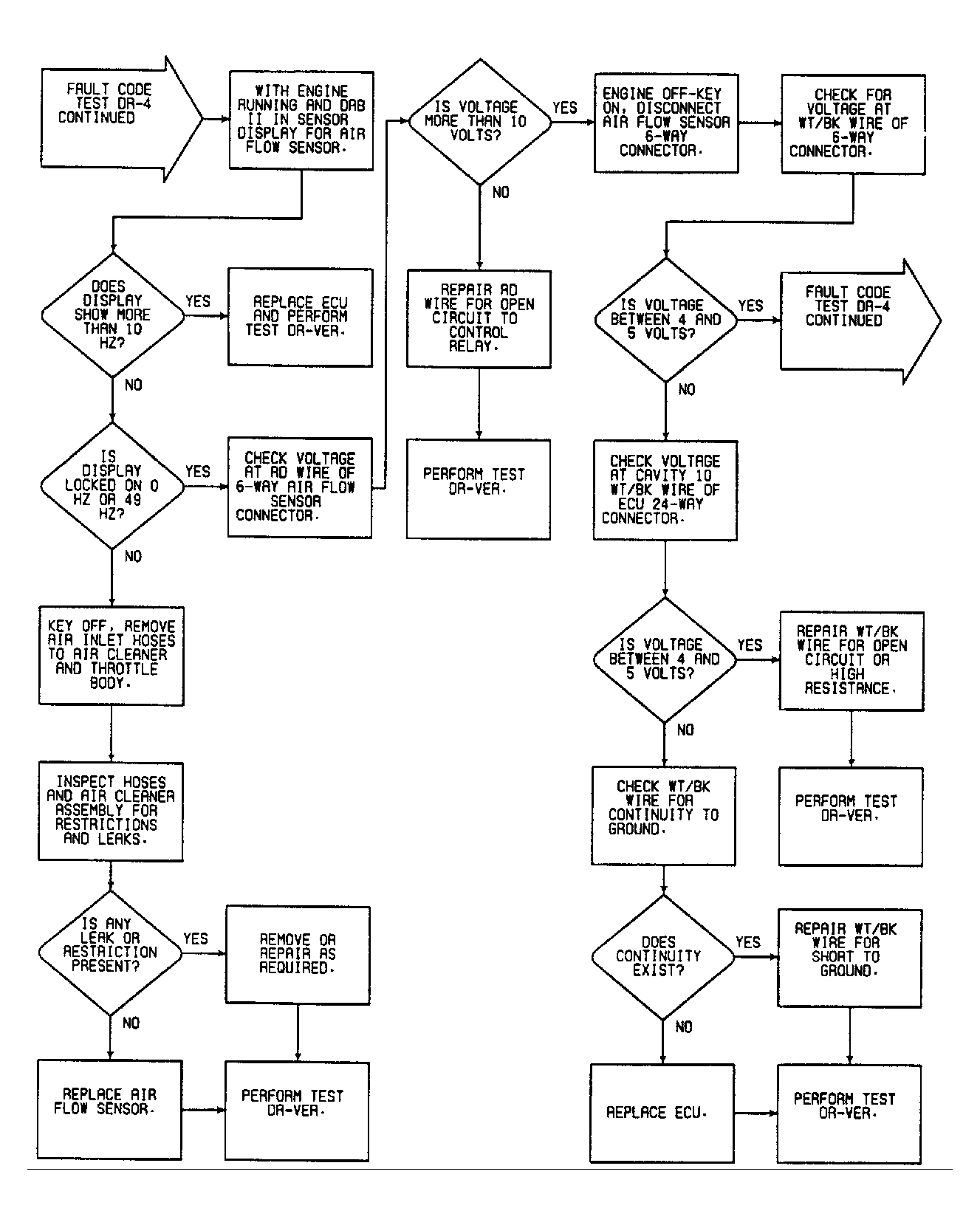

Fig 4: Flow Chart DR-4 (2.4L) (3 of 3)

G90C20026
