Dr-7: Code 15 Motor Position Sensor Circuit

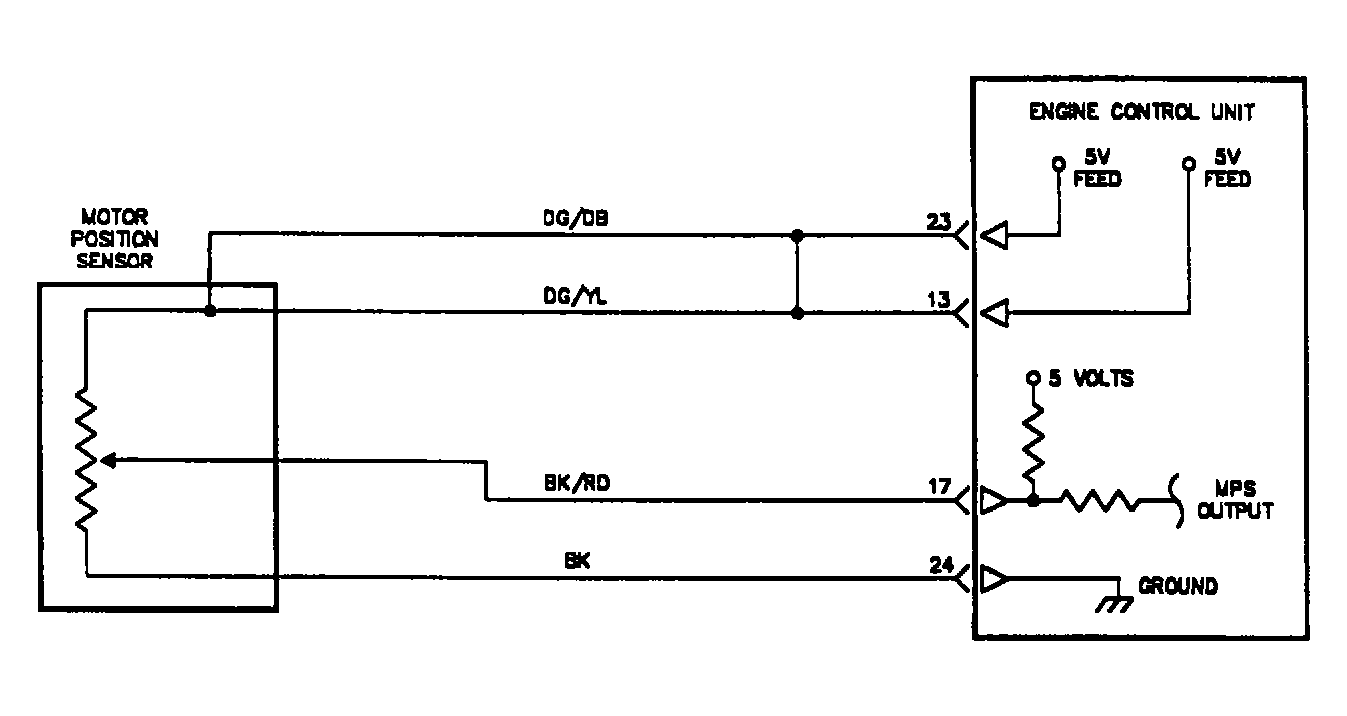

Fig 1: Circuit Diagram DR-7 (2.4L)

G90F19989

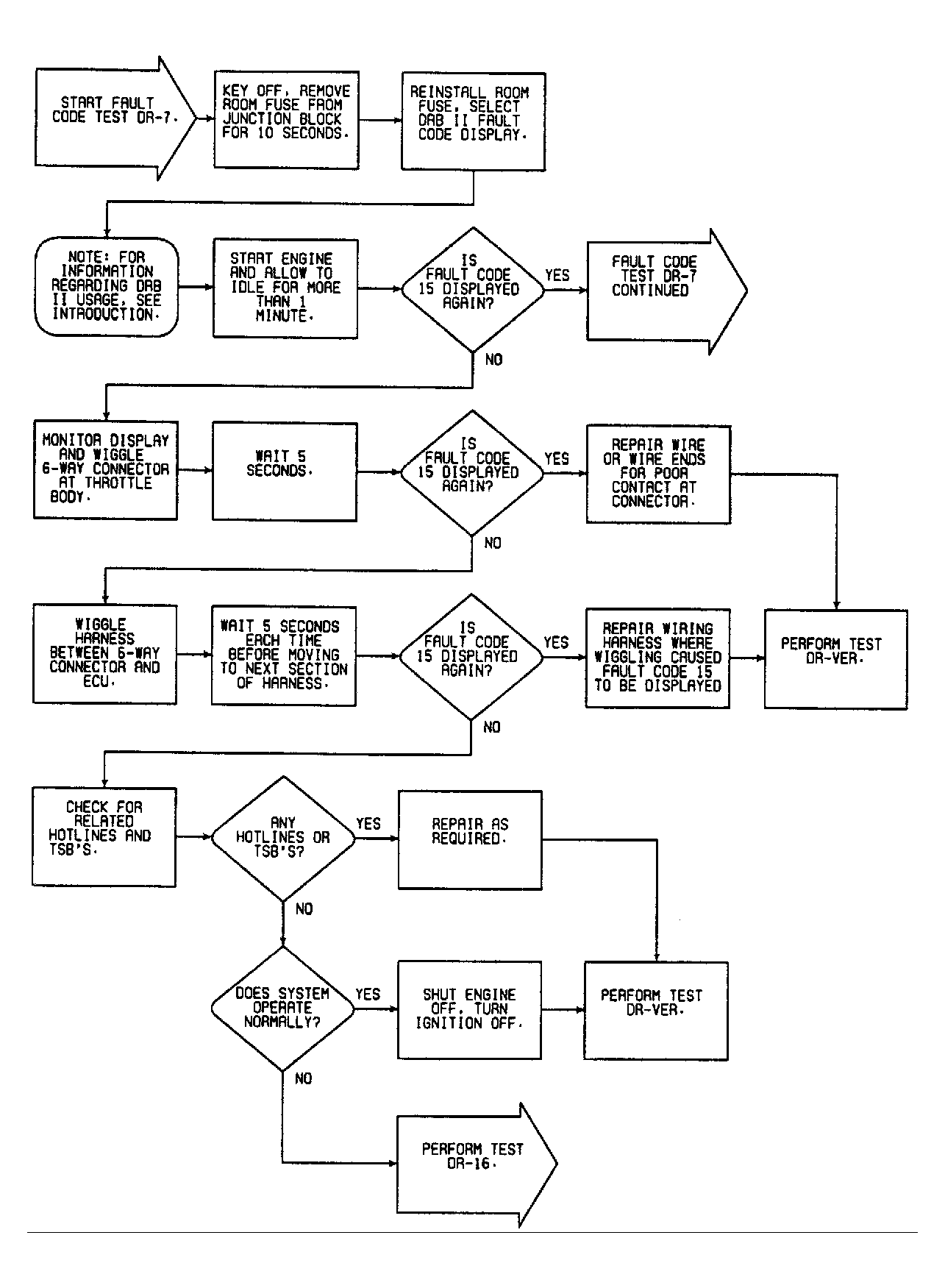

Fig 2: Flow Chart DR-7 (2.4L) (1 of 3)

G90A20032

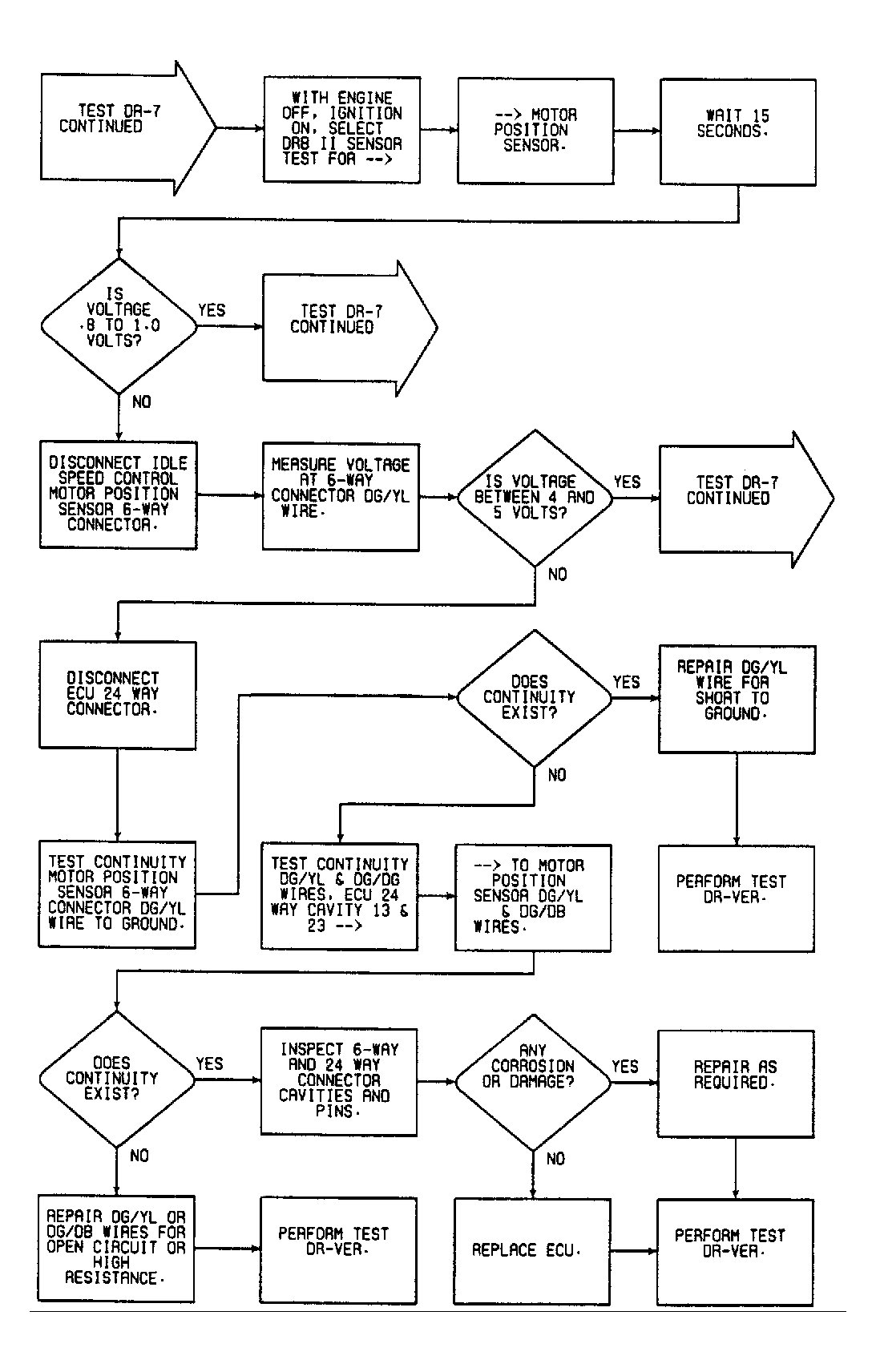

Fig 3: Flow Chart DR-7 (2.4L) (2 of 3)

G90B20033

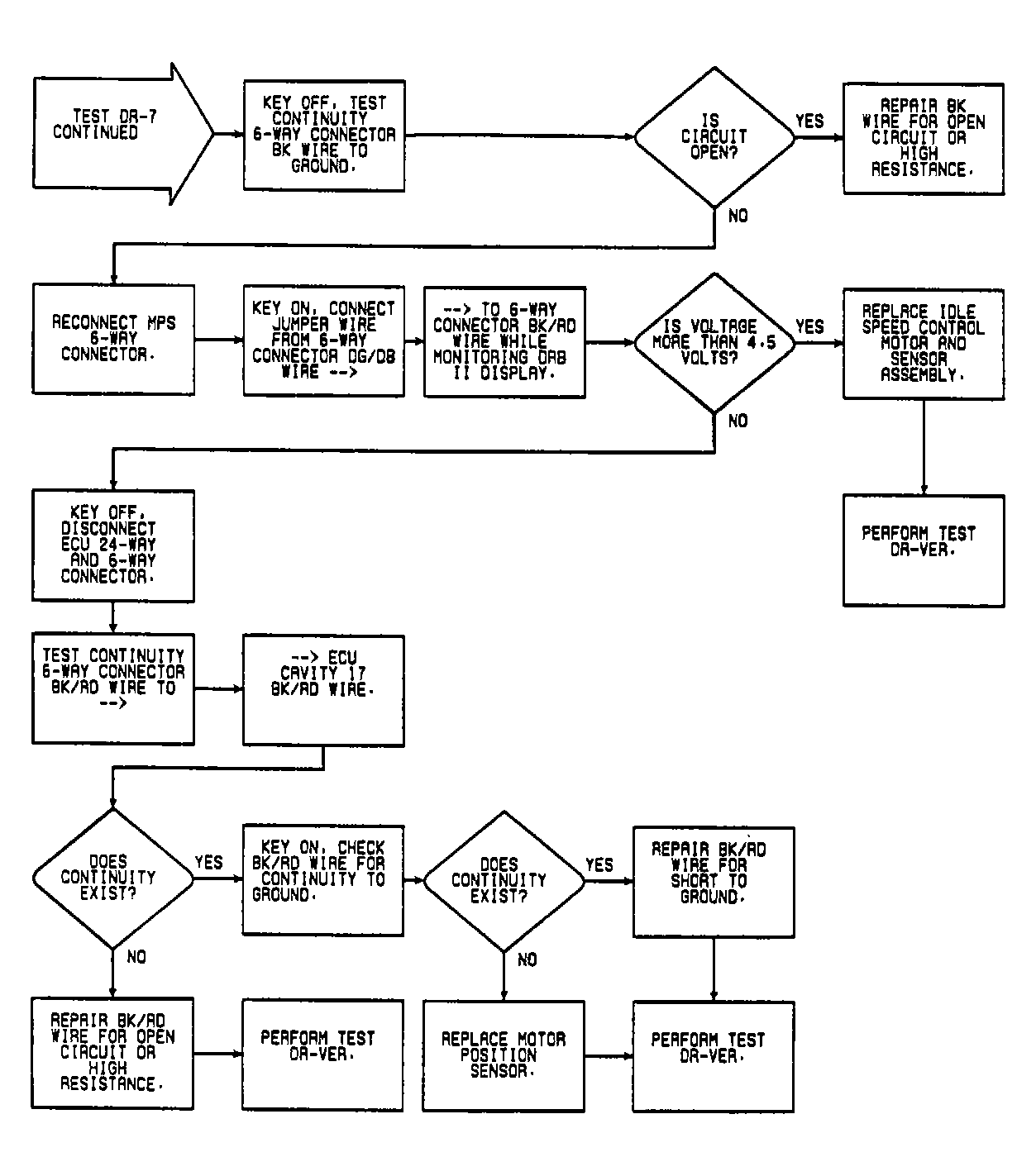

Fig 4: Flow Chart DR-7 (2.4L) (3 of 3)

G90C20034
