NS-4: Checking Control Relay Circuit

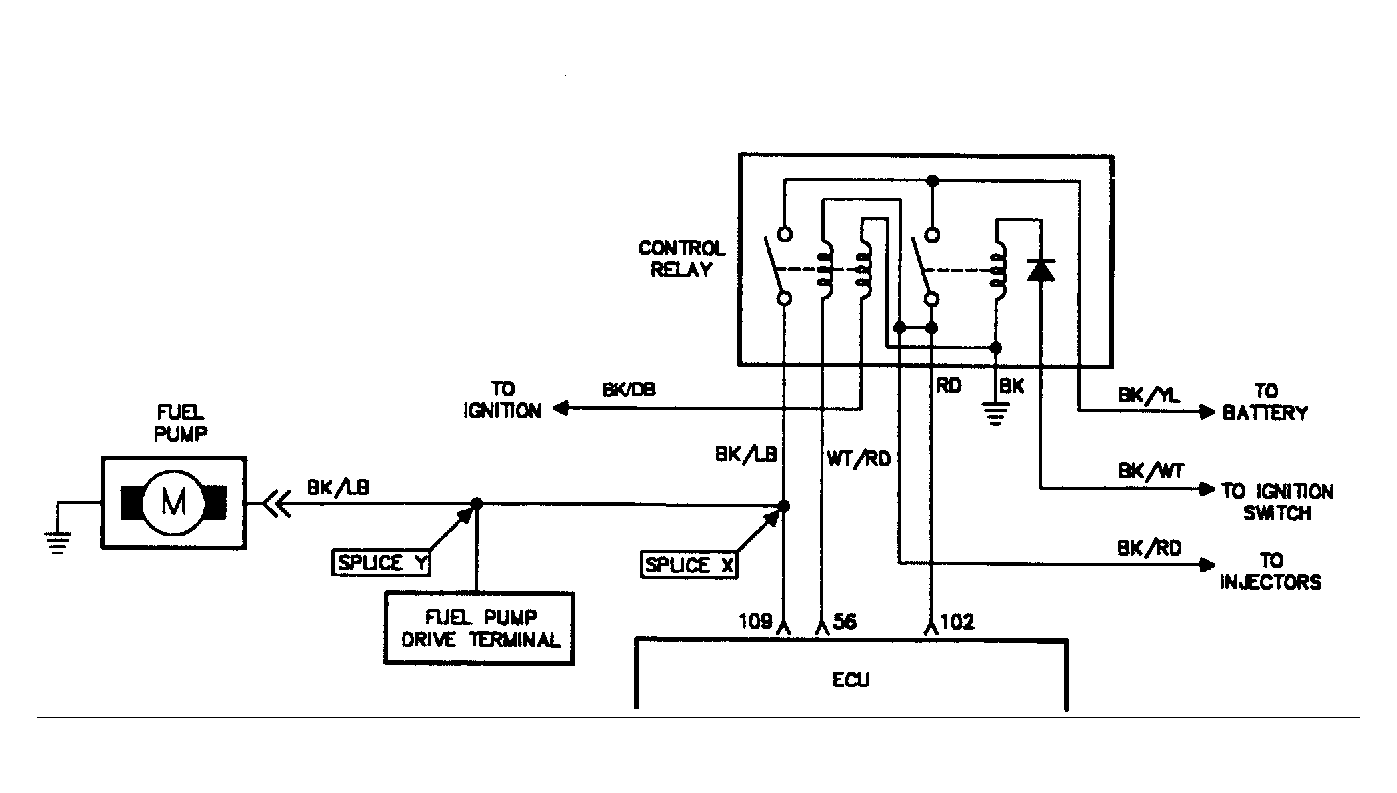

Fig 1: Circuit Diagram NS-4 (2.4L)

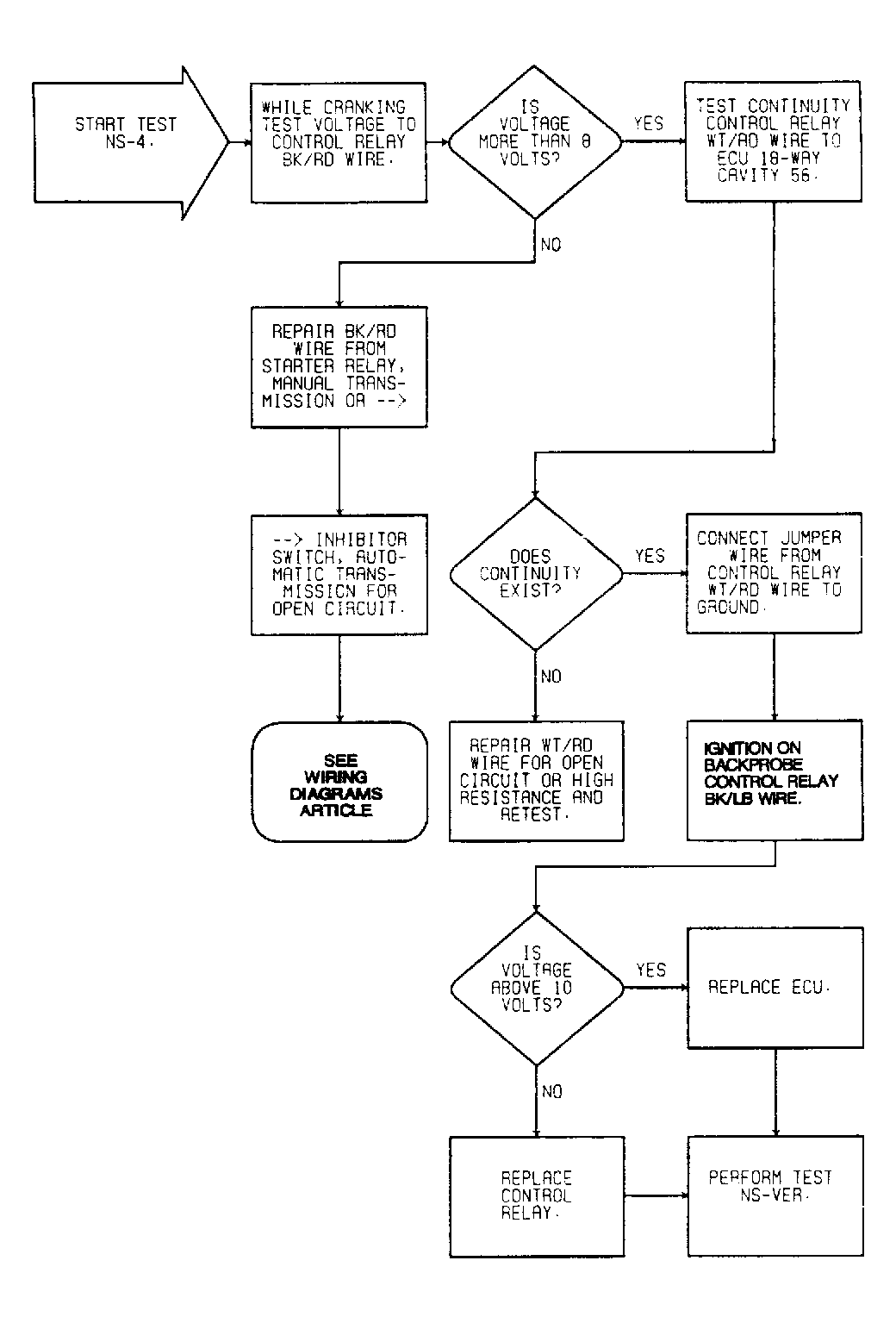

Fig 2: Flow Chart NS-4 (2.4L)
