Dr-1: Testing For Fault Codes

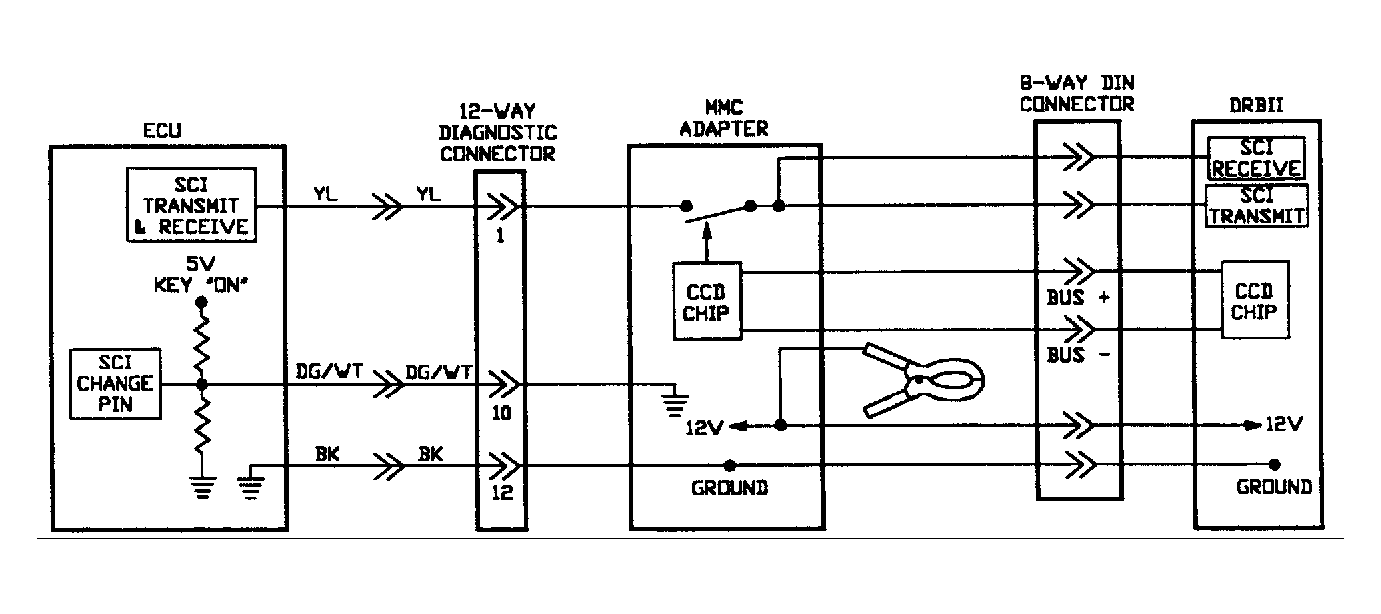

Fig 1: Circuit Diagram DR-1 (3.0L)
G90D20068

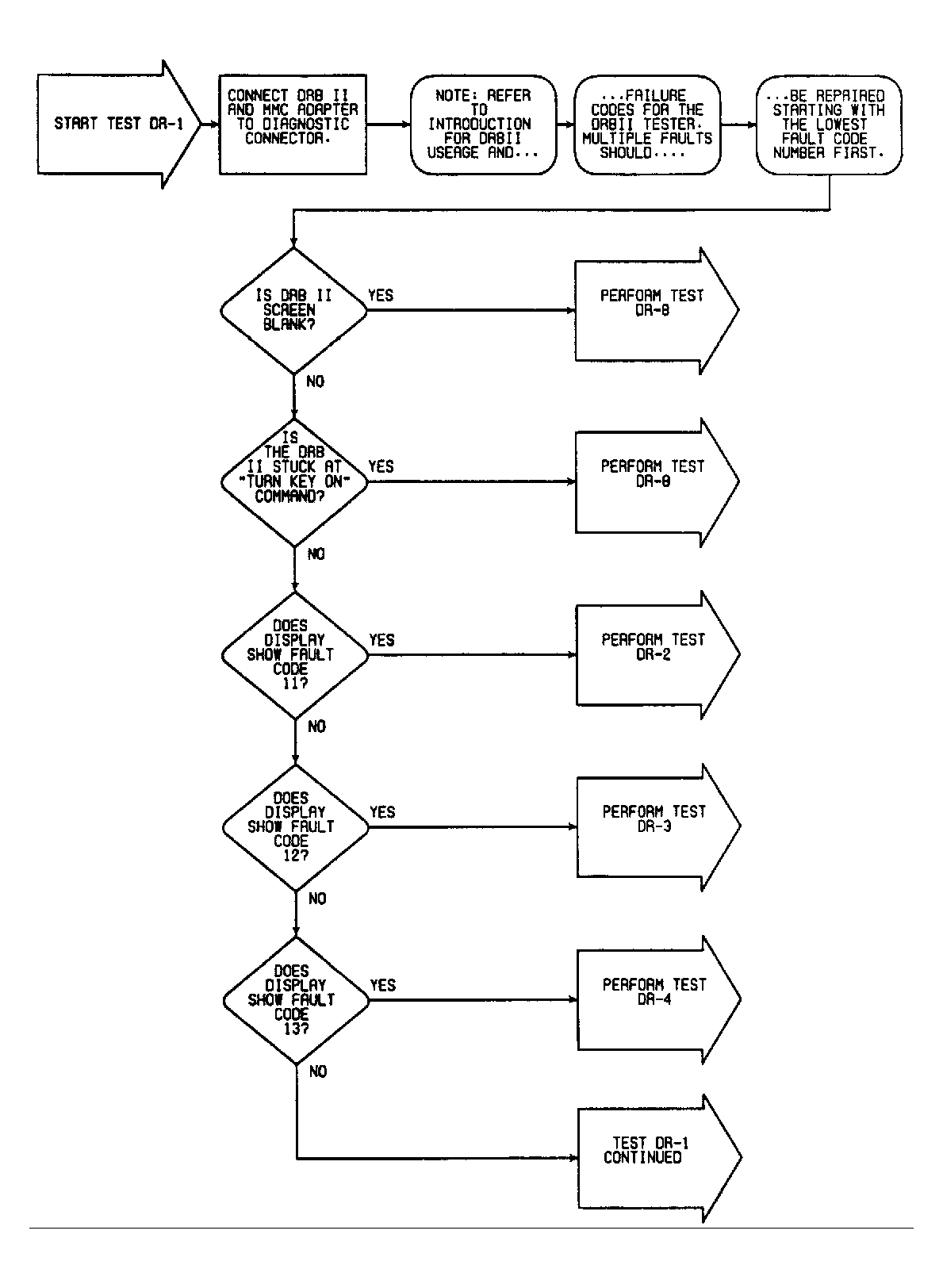

Fig 2: Flow Chart DR-1 (3.0L) (1 of 2)
G90G20103

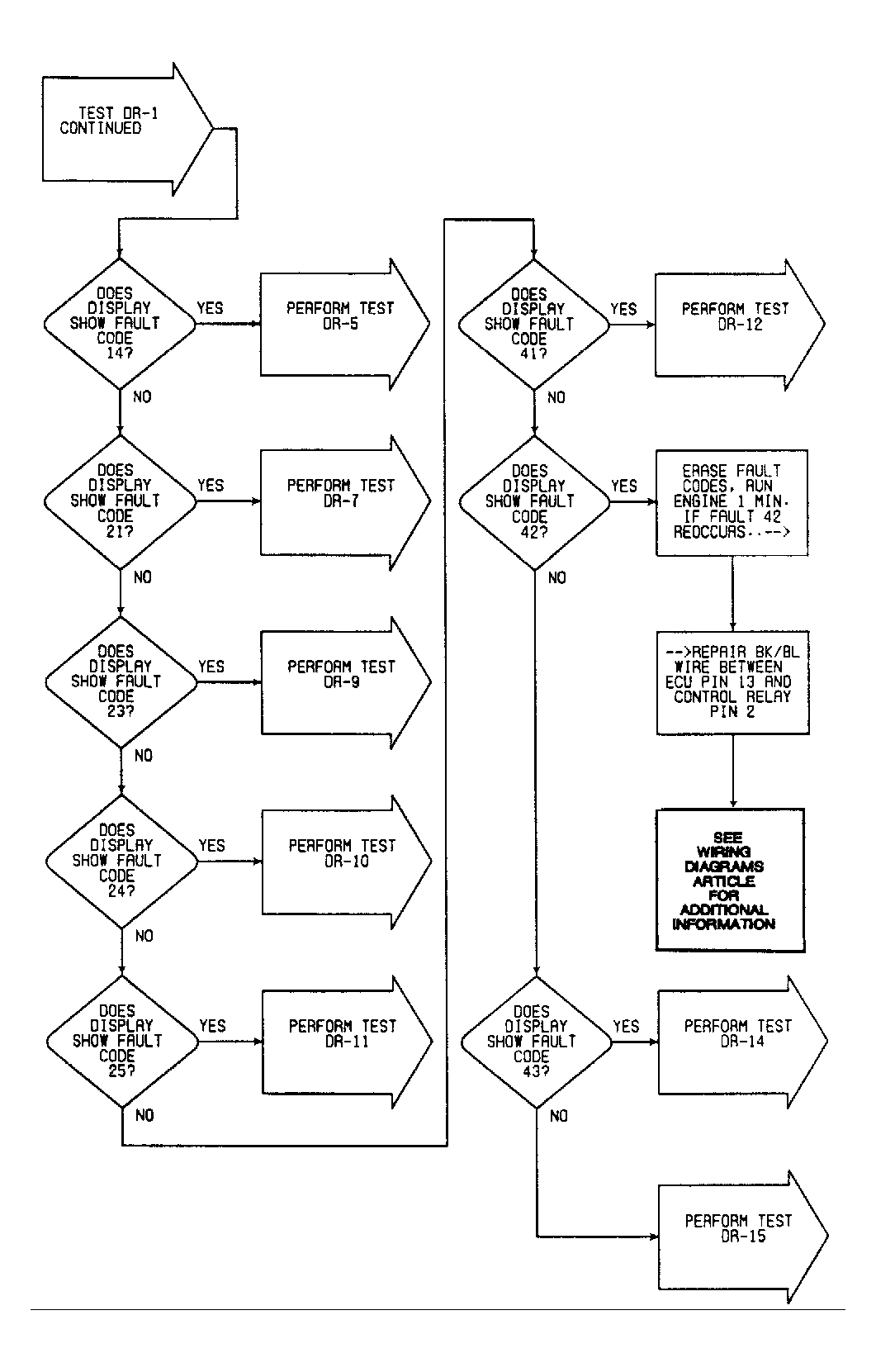

Fig 3: Flow Chart DR-1 (3.0L) (2 of 2)
G90H20104
