Dr-12: Code 41 Fuel Injector Circuit

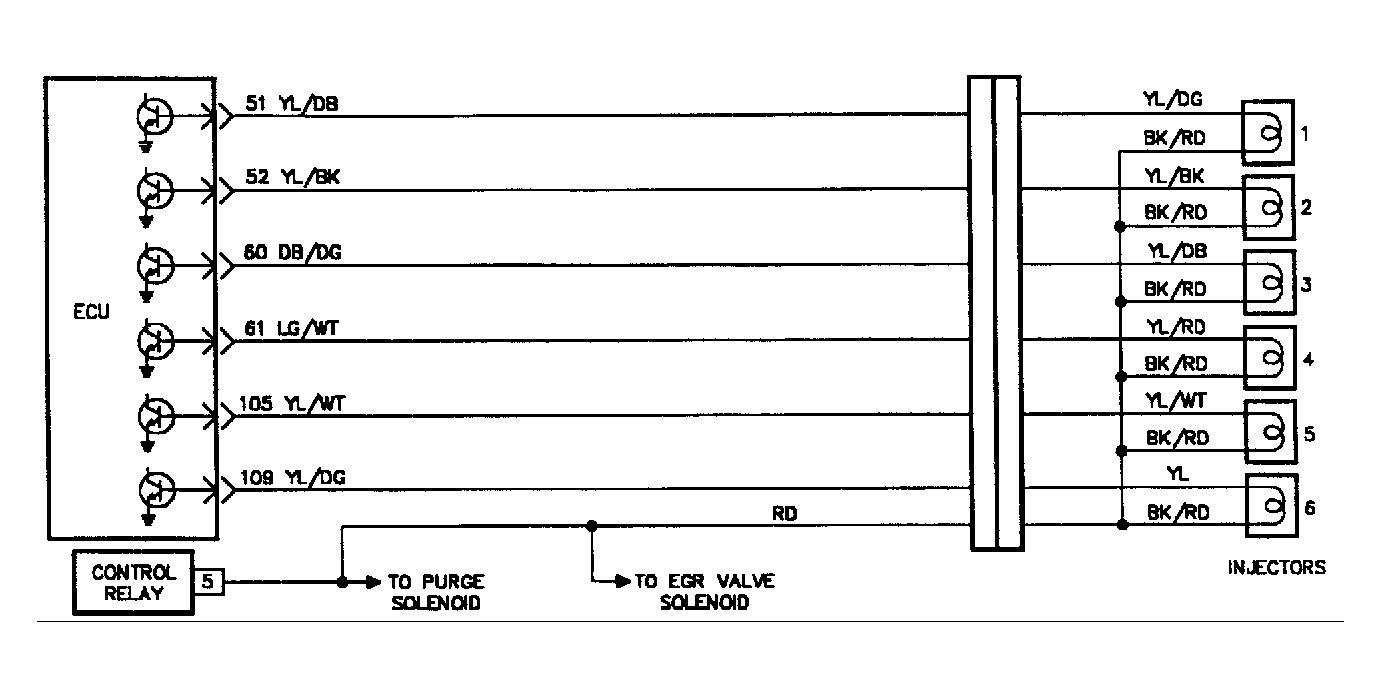

Fig 1: Circuit Diagram DR-12 (3.0L)

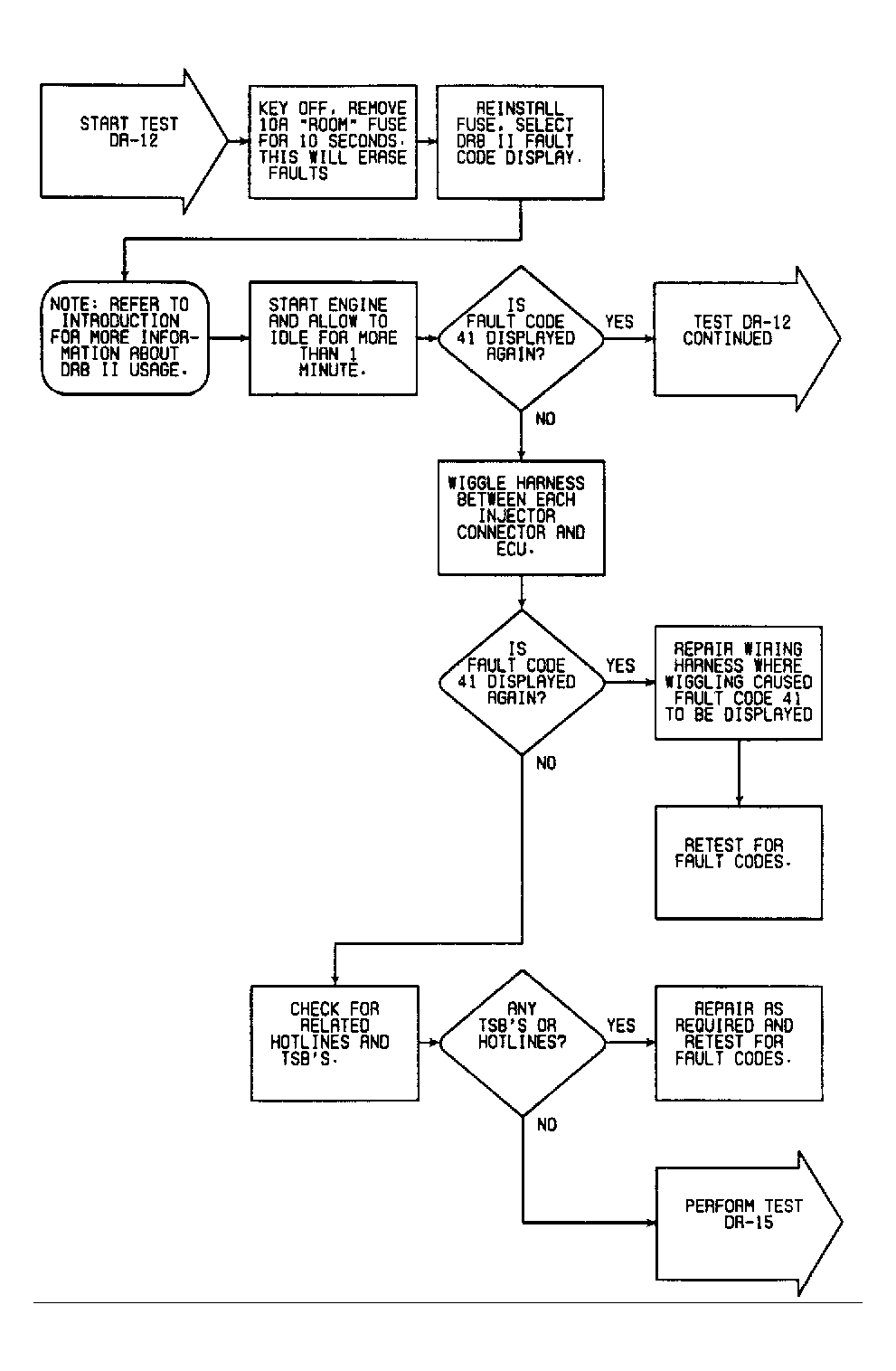

Fig 2: Flow Chart DR-12 (3.0L) (1 of 7)

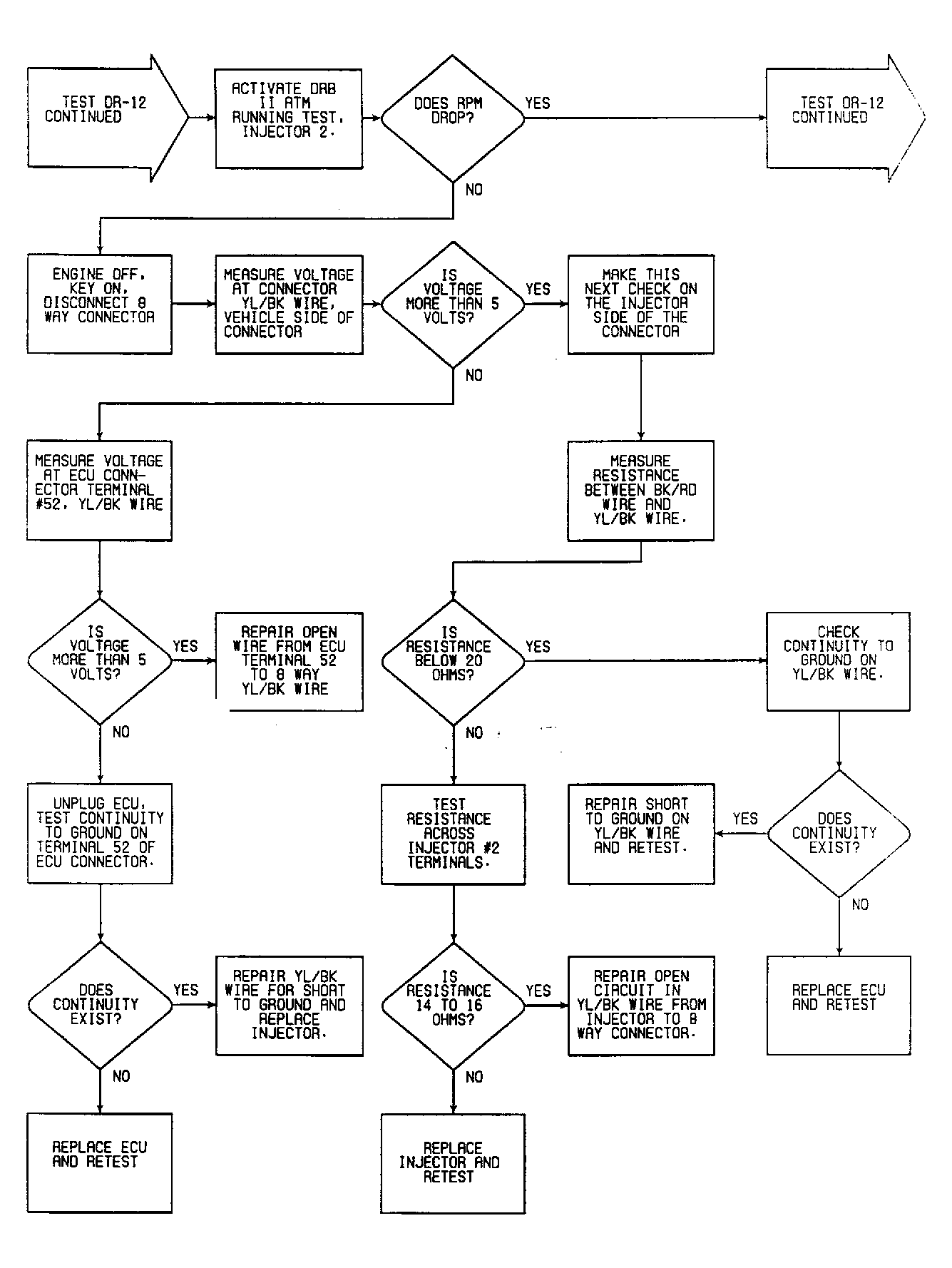

Fig 3: Flow Chart DR-12 (3.0L) (2 of 7)

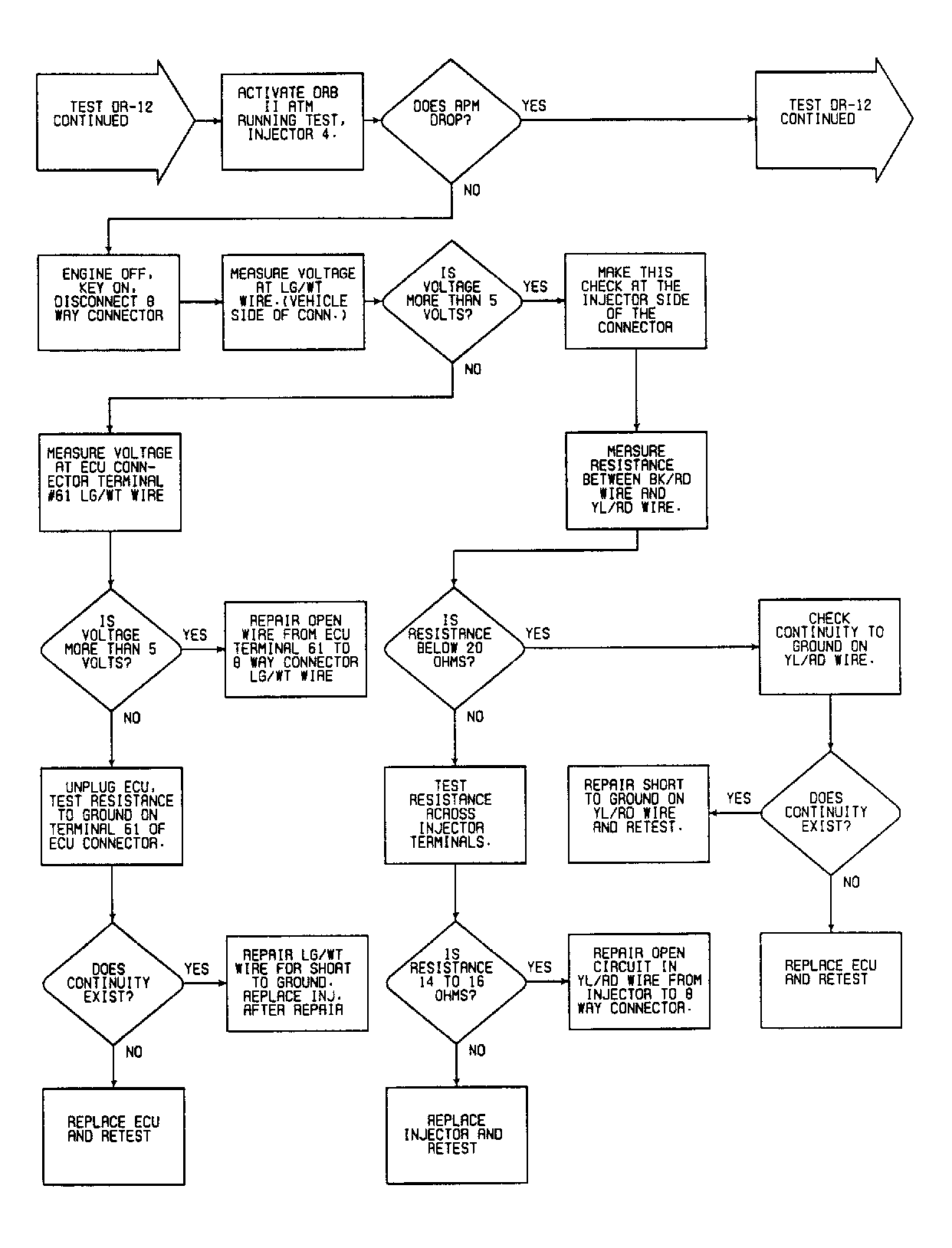

Fig 4: Flow Chart DR-12 (3.0L) (3 of 7)

Fig 5: Flow Chart DR-12 (3.0L) (4 of 7)

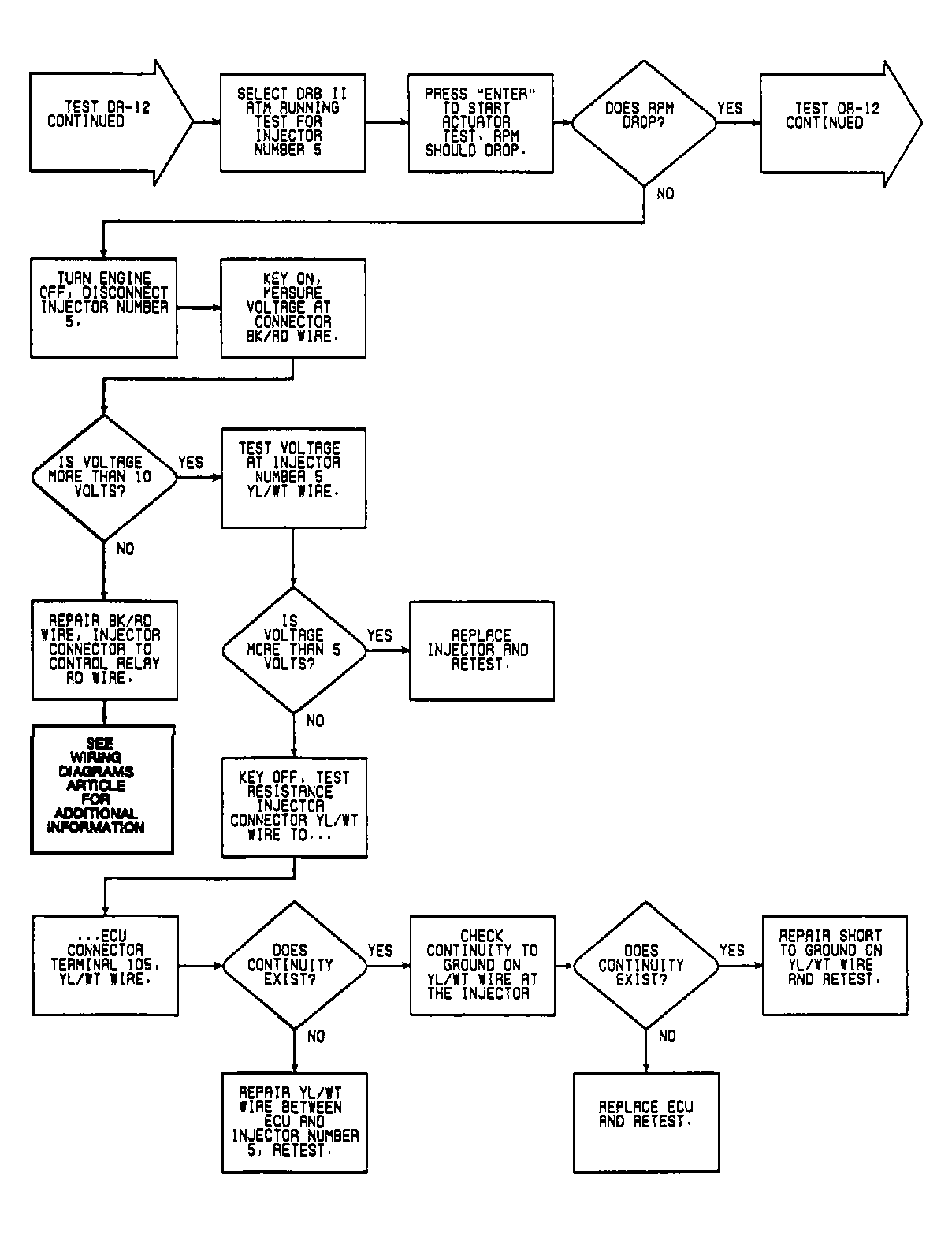

Fig 6: Flow Chart DR-12 (3.0L) (5 of 7)

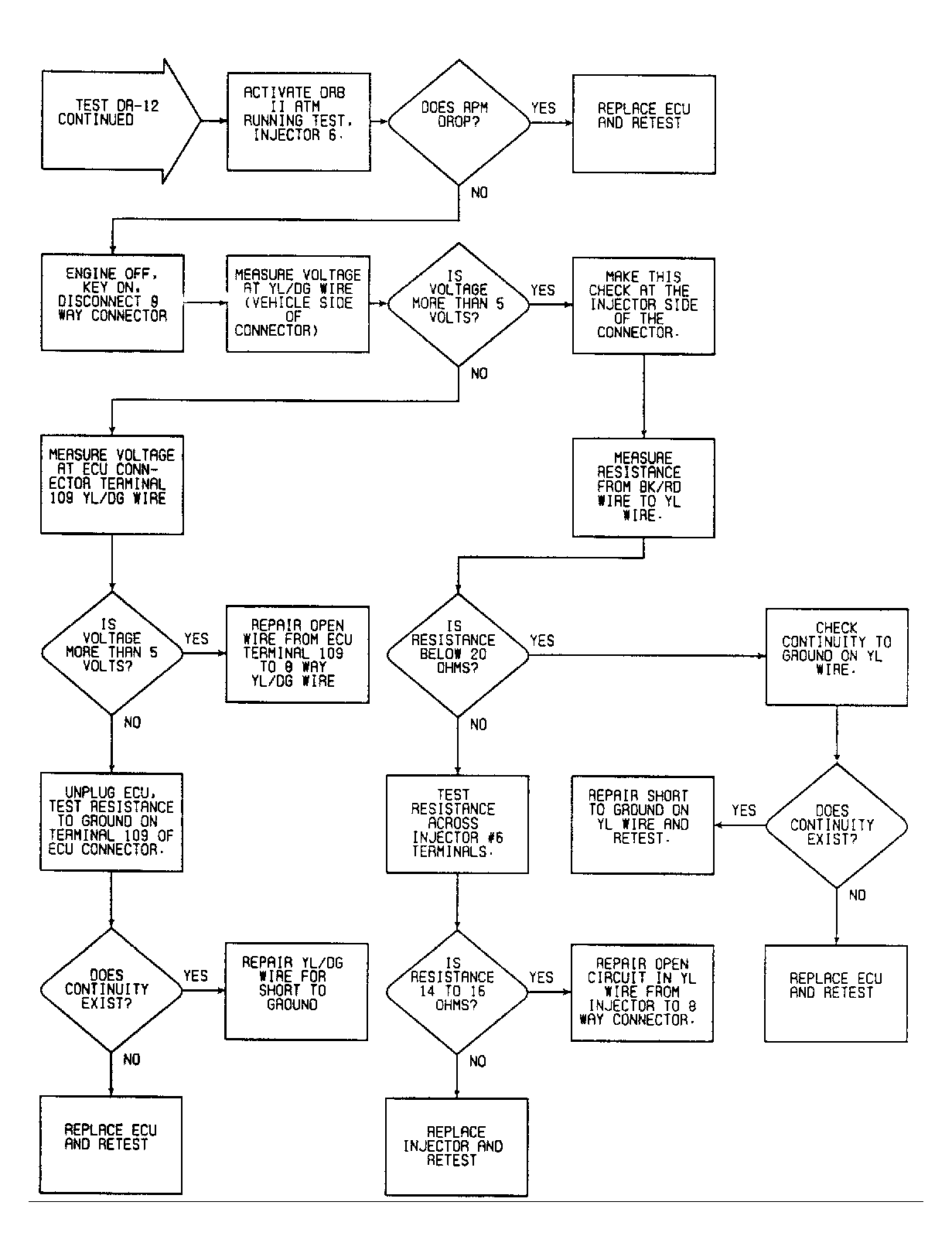

Fig 7: Flow Chart DR-12 (3.0L) (6 of 7)

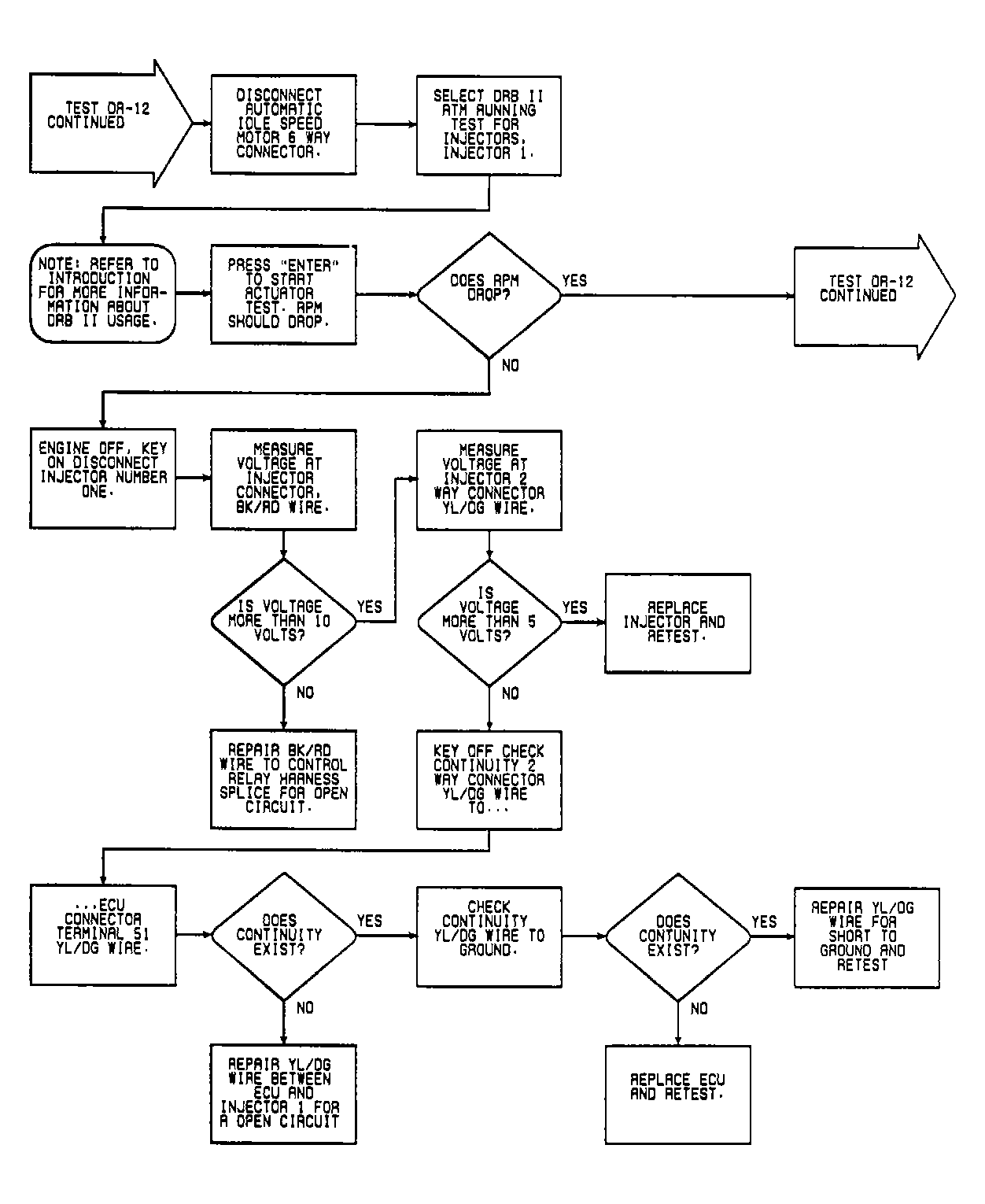

Fig 8: Flow Chart DR-12 (3.0L) (7 of 7)
