Dr-16: No Fault Code Sensor Tests

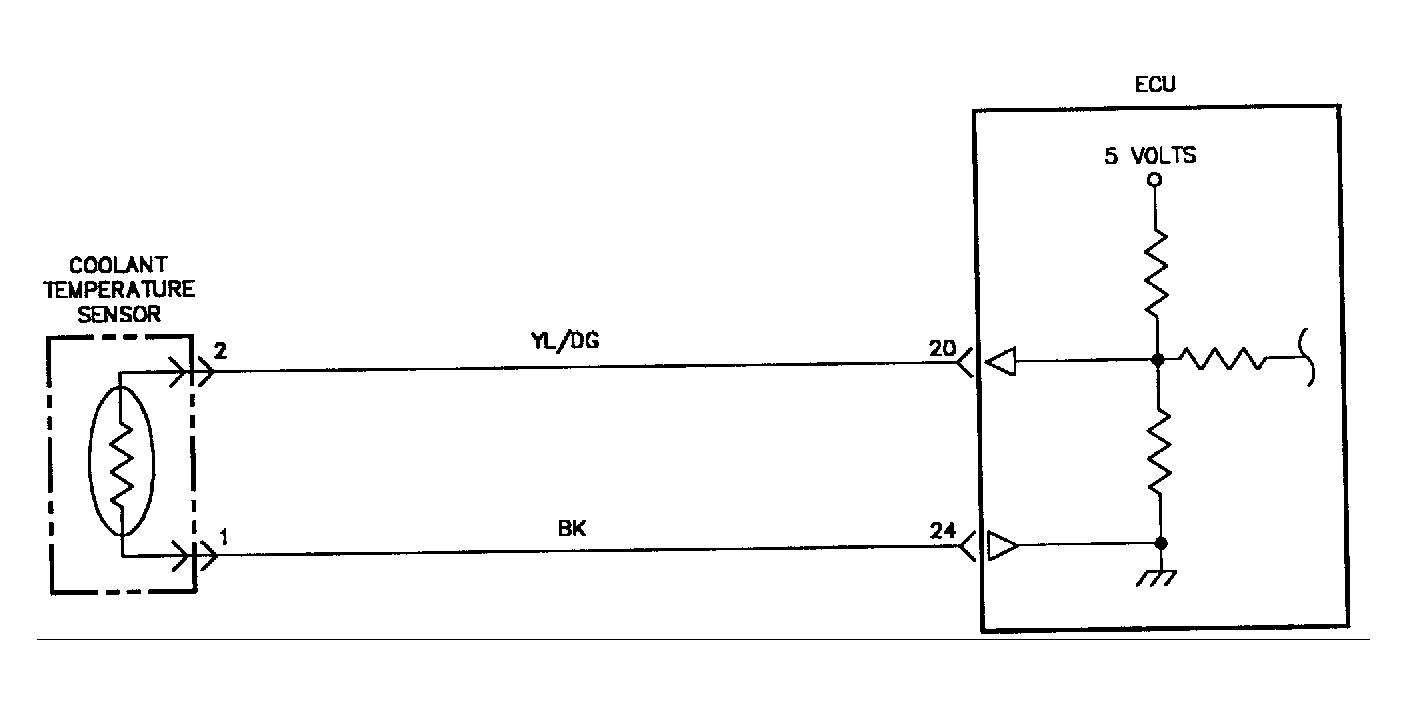

Fig 1: Coolant Temp Sensor Circuit Diagram DR-16 (3.0L)

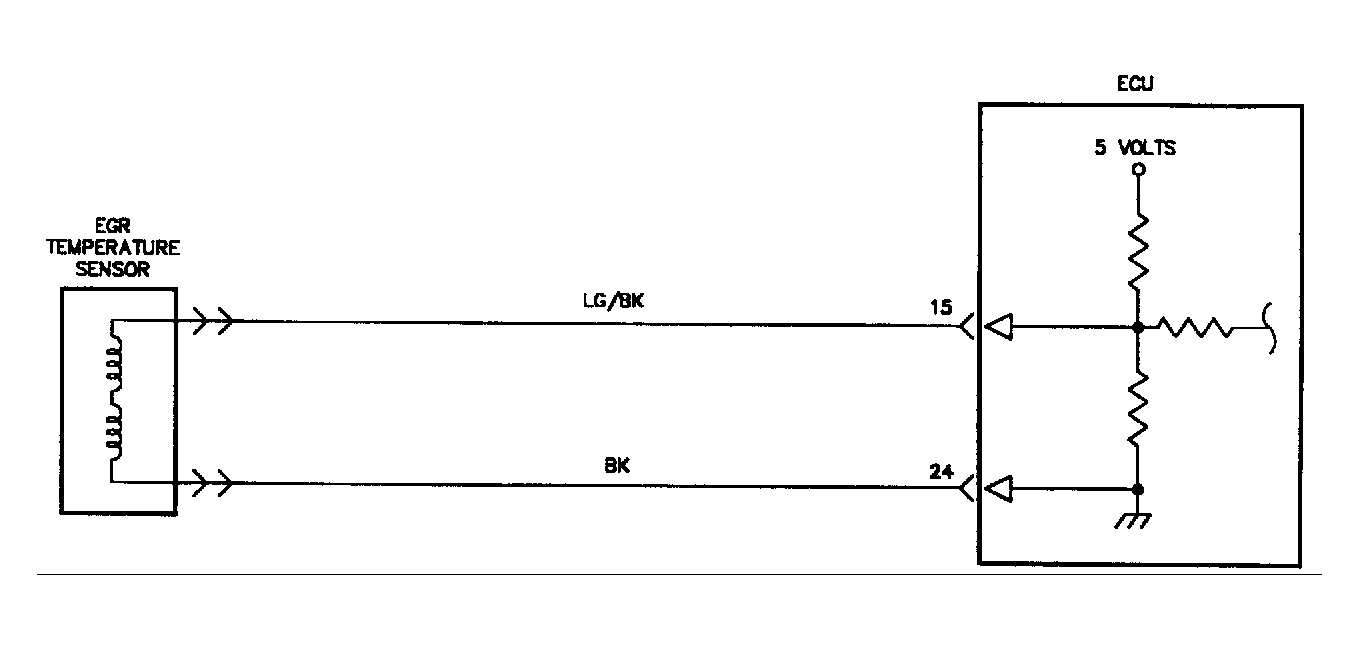

Fig 2: EGR Temp Sensor Circuit Diagram DR-16 (3.0L)

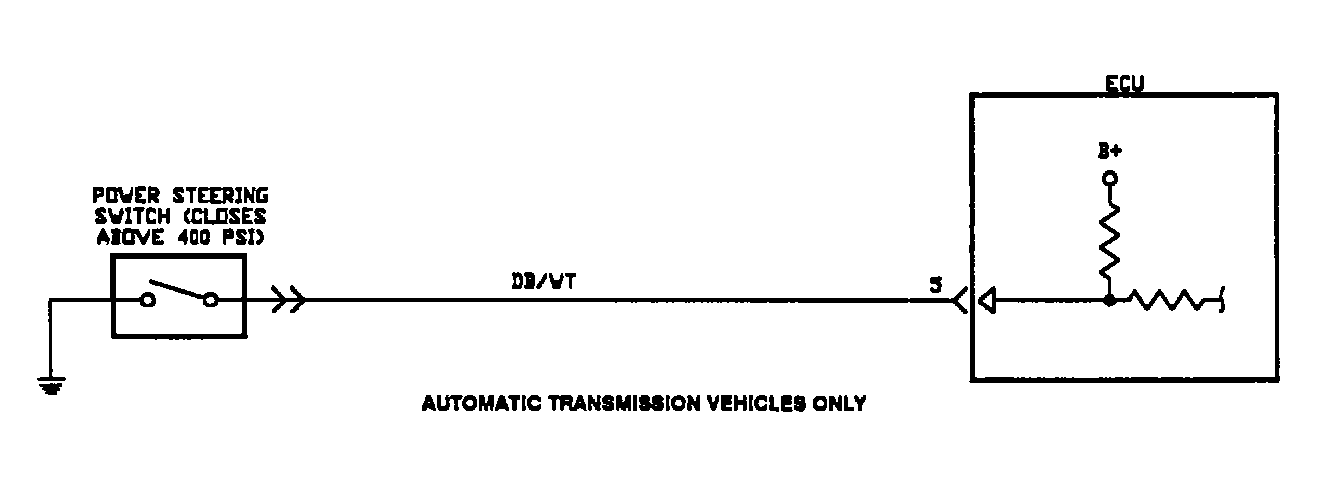

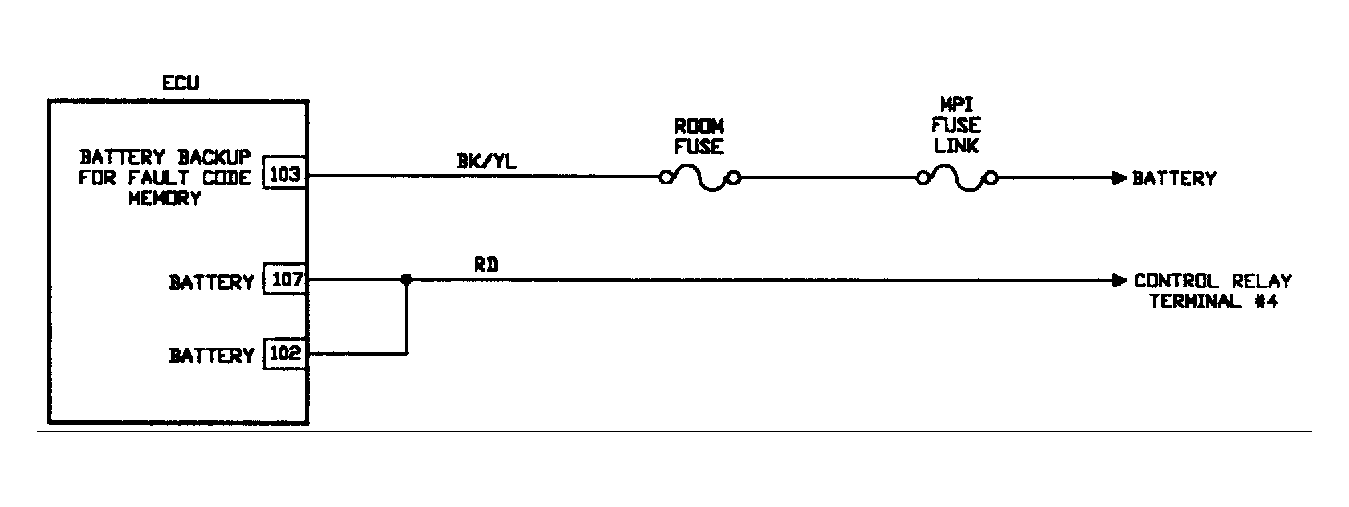

Fig 3: Circuit Diagram DR-16 (3.0L)

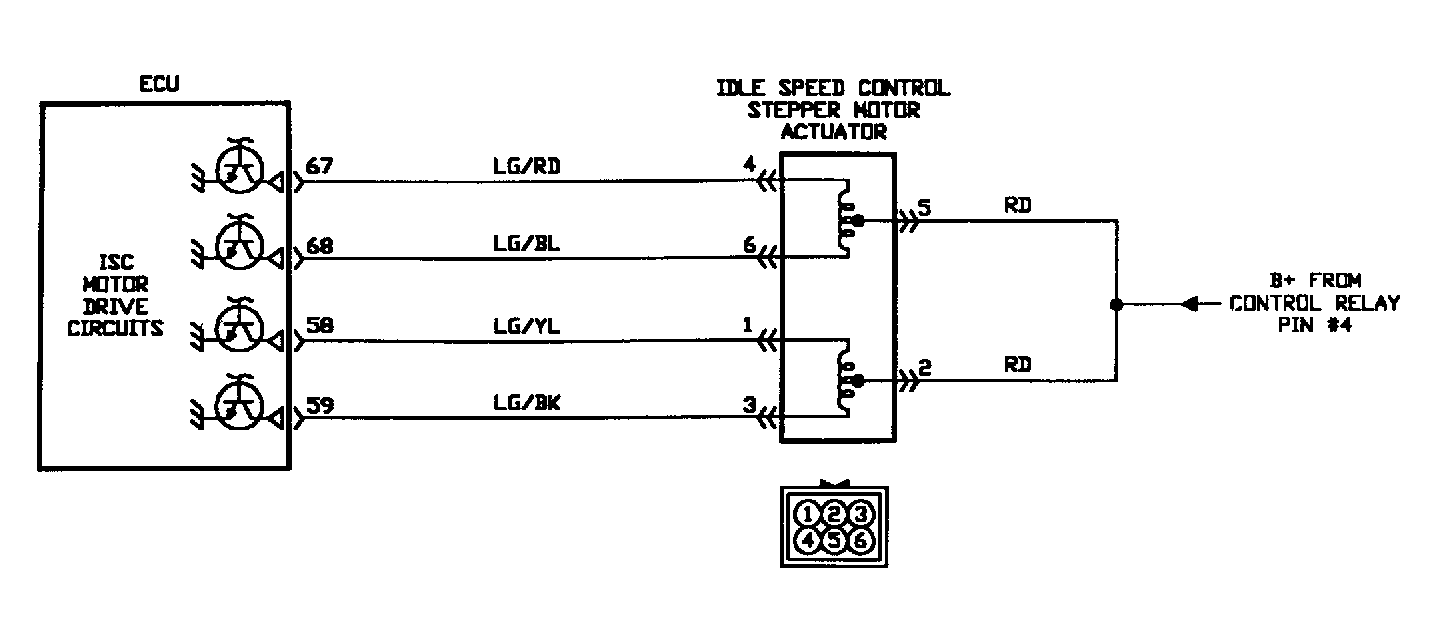

Fig 4: Circuit Diagram DR-16 (3.0L)

Fig 5: Circuit Diagram DR-16 (3.0L)

Fig 6: Circuit Diagram DR-16 (3.0L)

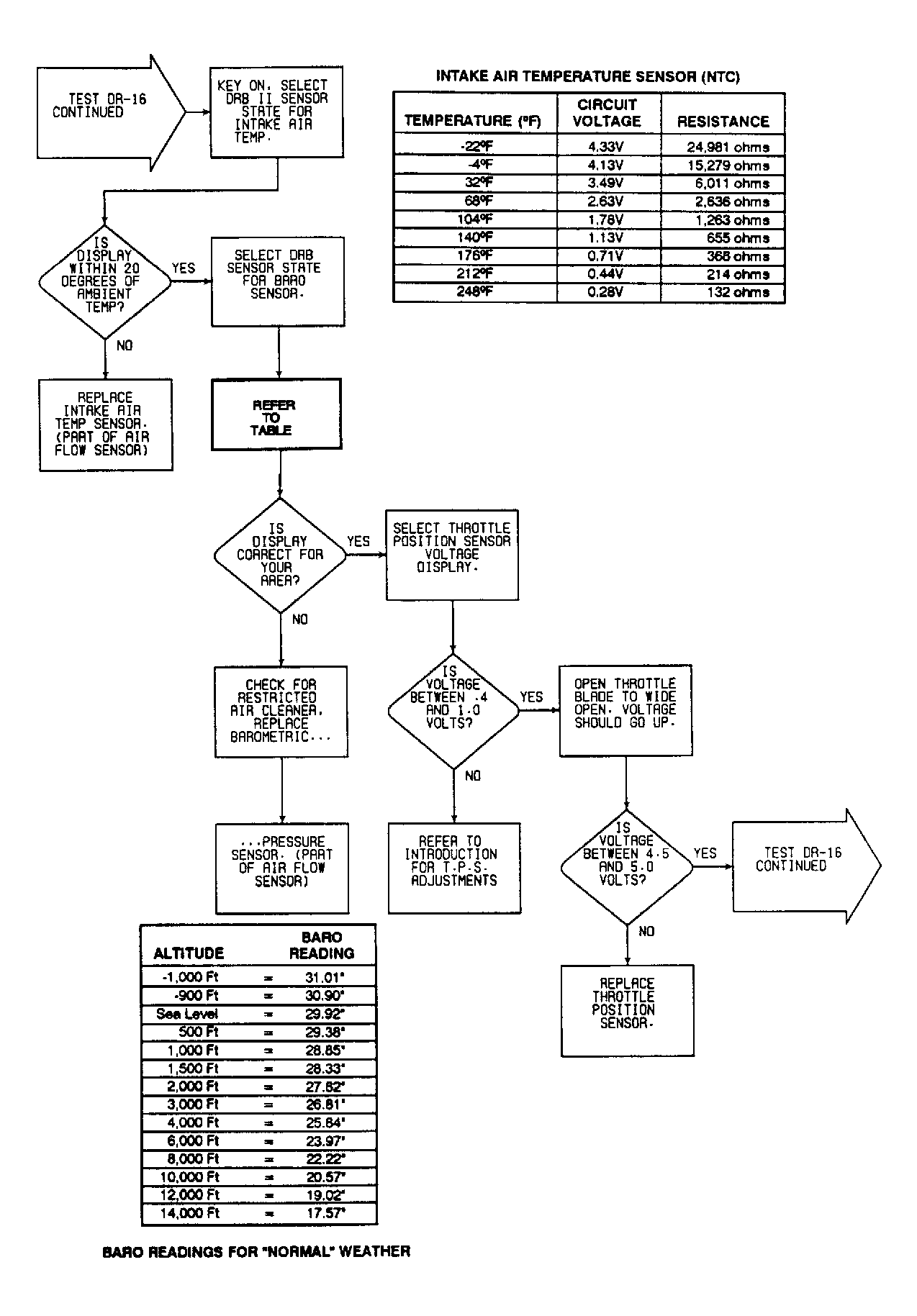

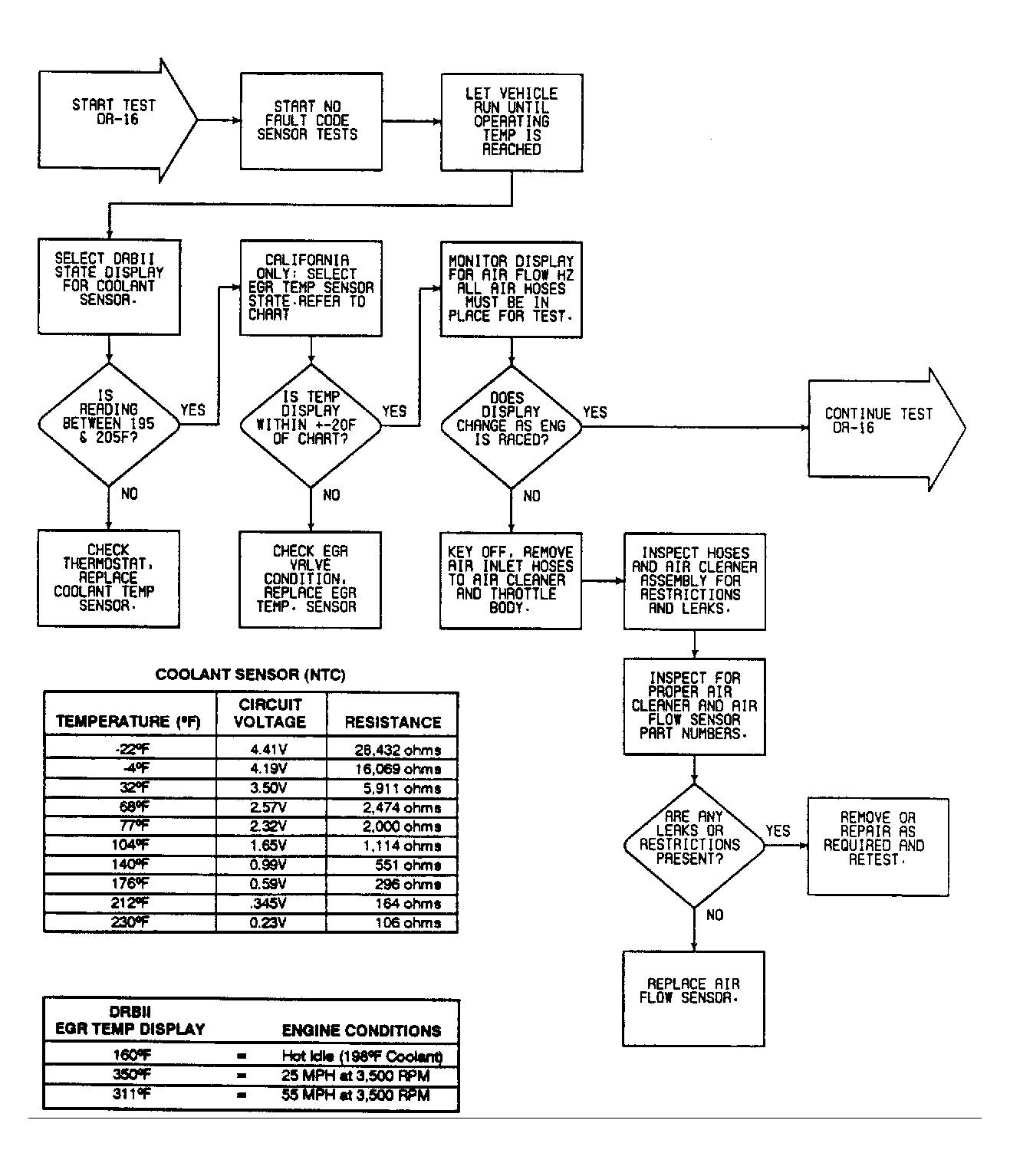

Fig 7: Flow Chart DR-16 (3.0L) (1 of 5)

Fig 8: Flow Chart DR-16 (3.0L) (2 of 5)

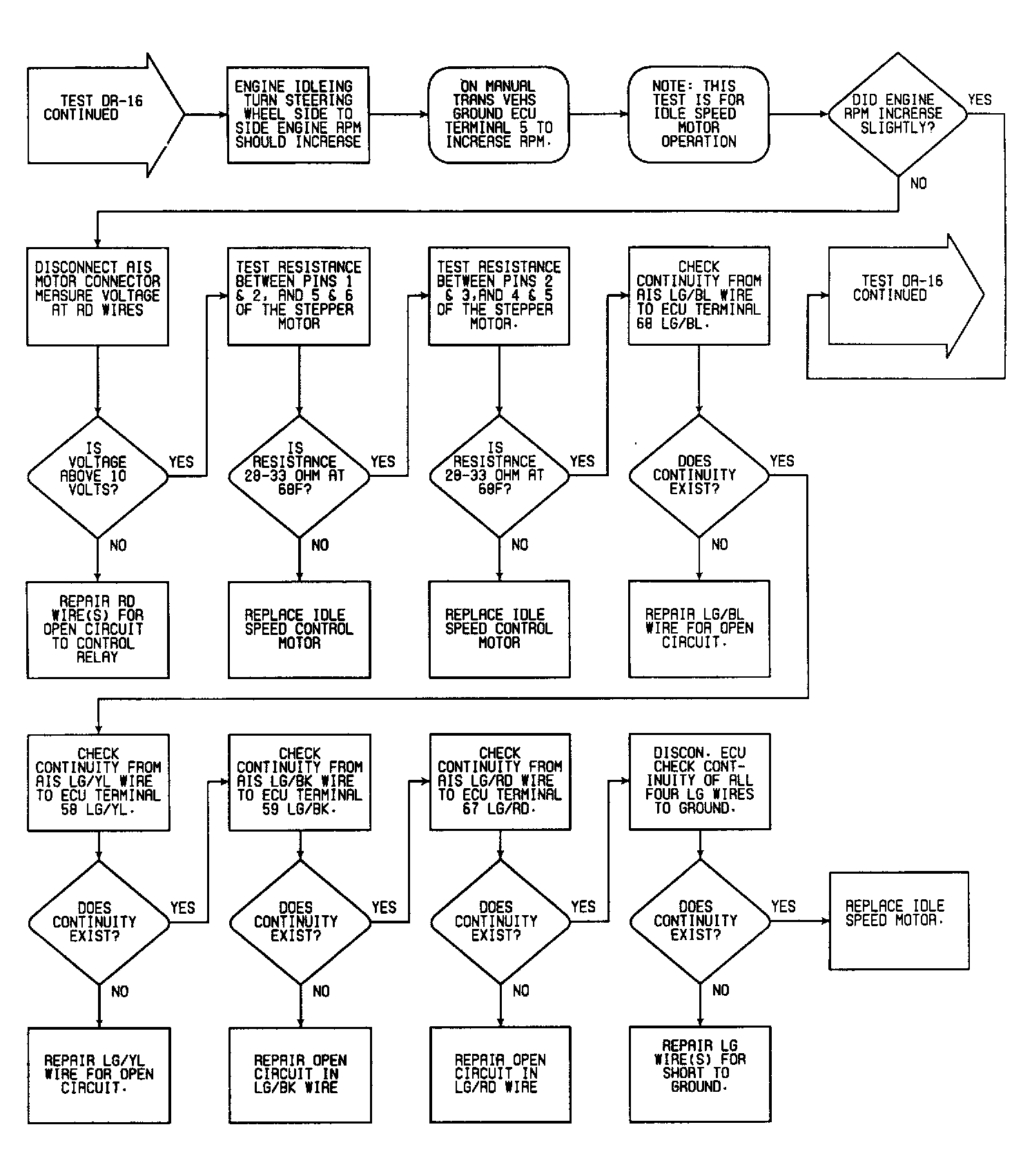

Fig 9: Flow Chart DR-16 (3.0L) (3 of 5)

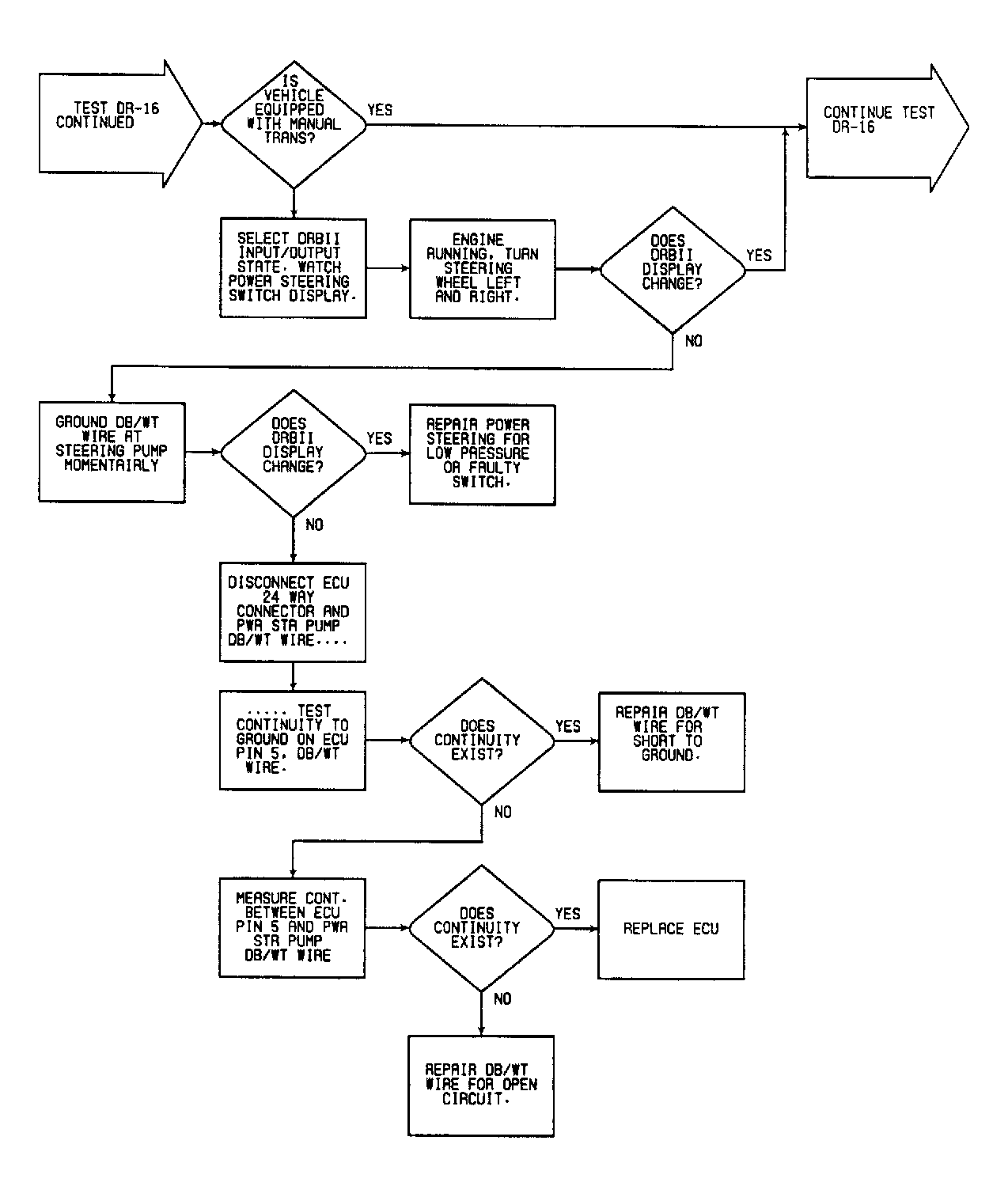

Fig 10: Flow Chart DR-16 (3.0L) (4 of 5)

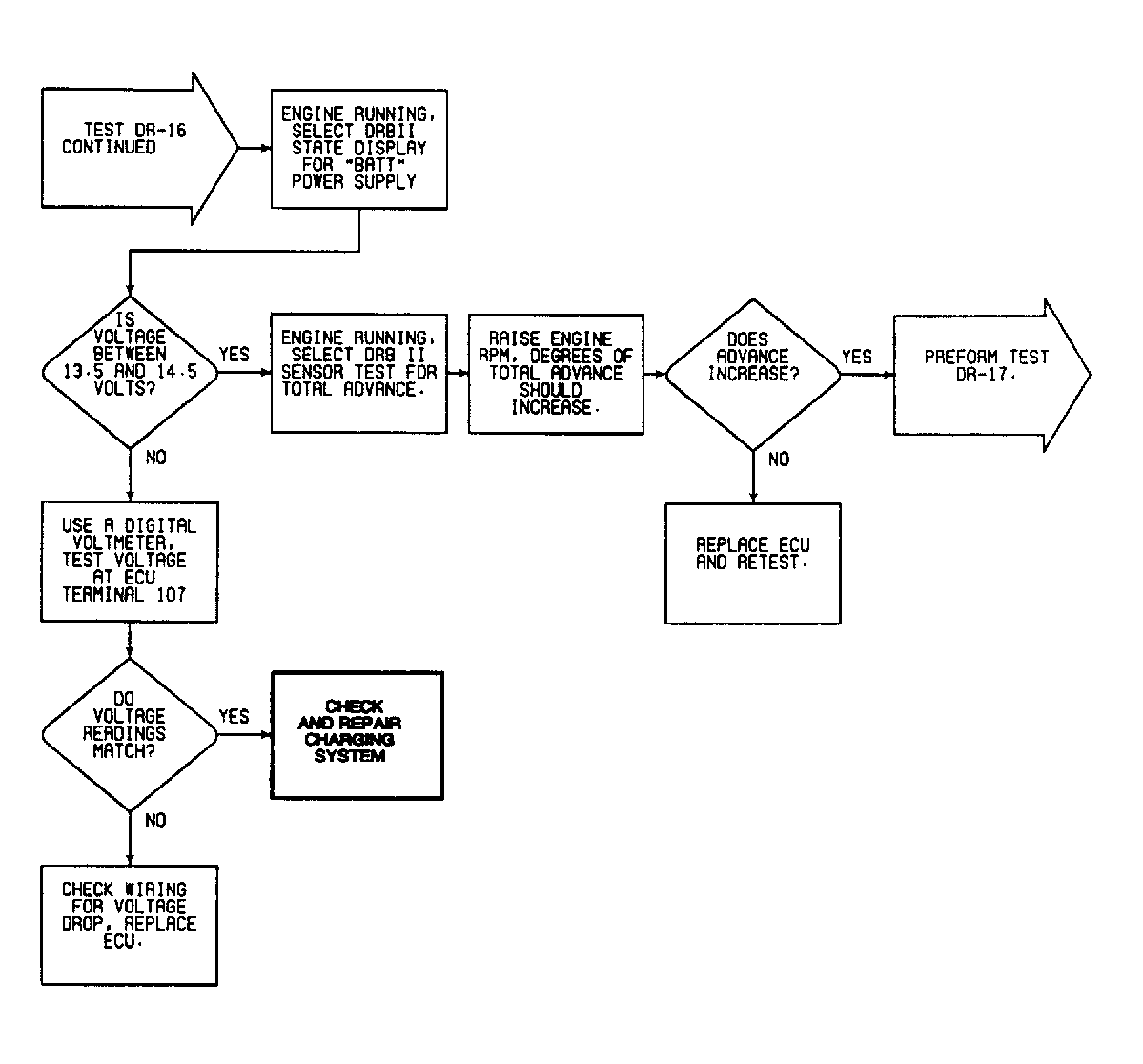

Fig 11: Flow Chart DR-16 (3.0L) (5 of 5)
