Dr-3: Code 12 Airflow Sensor Circuit

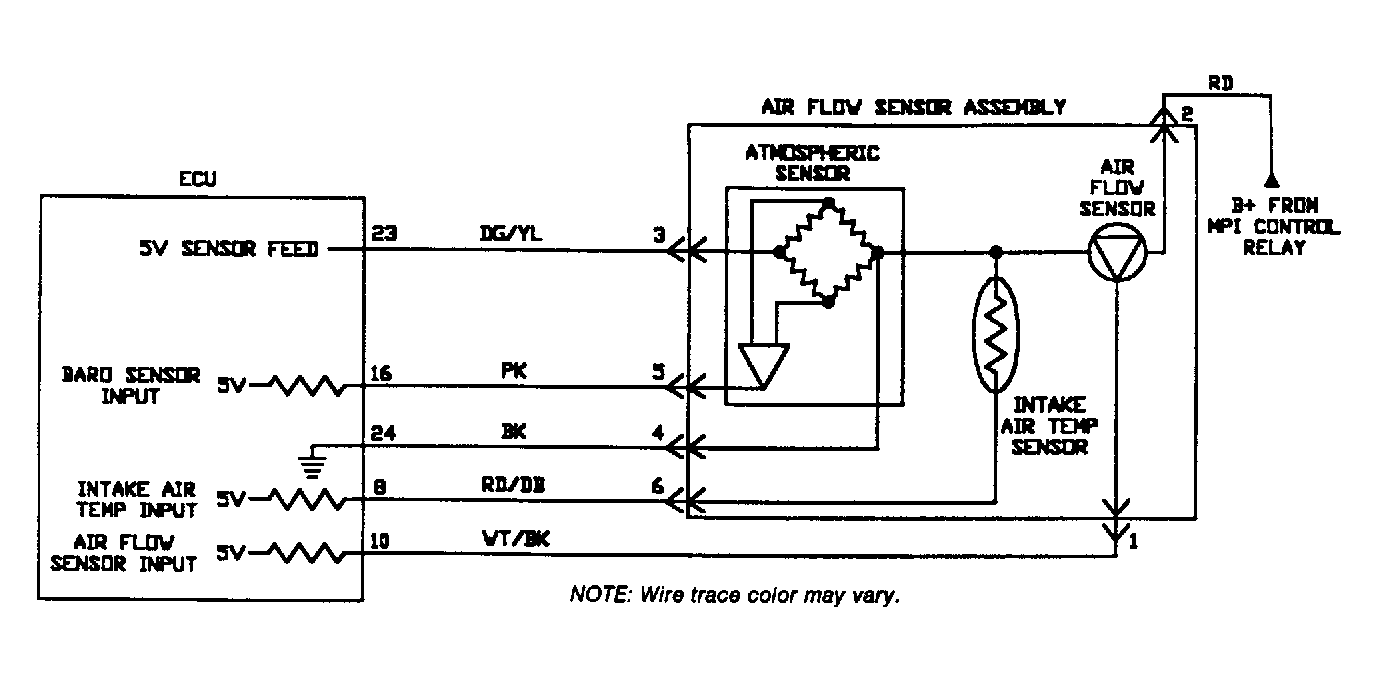

Fig 1: Circuit Diagram DR-3 (3.0L)

G90D20076

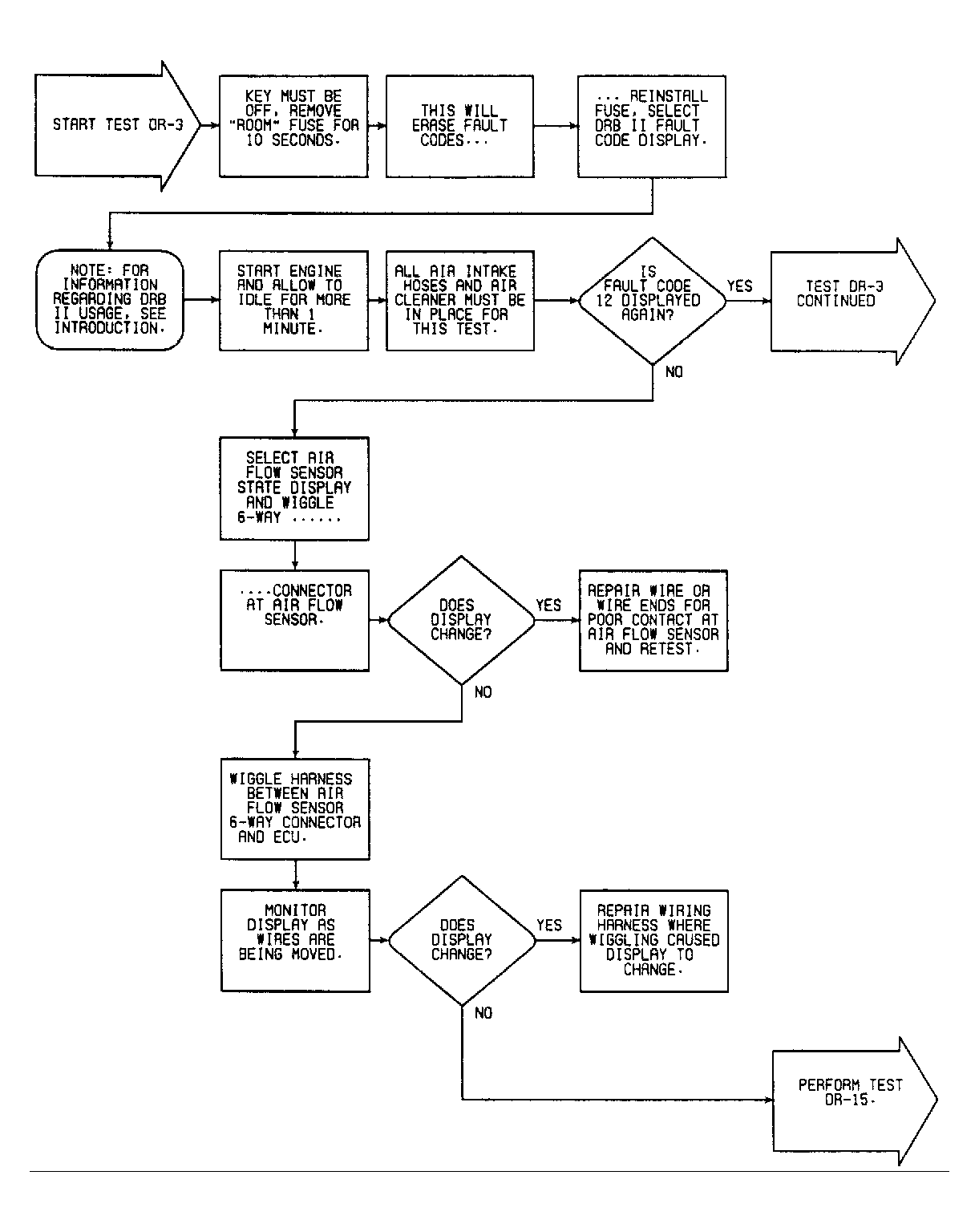

Fig 2: Flow Chart DR-3 (3.0L) (1 of 2)

G90J20106

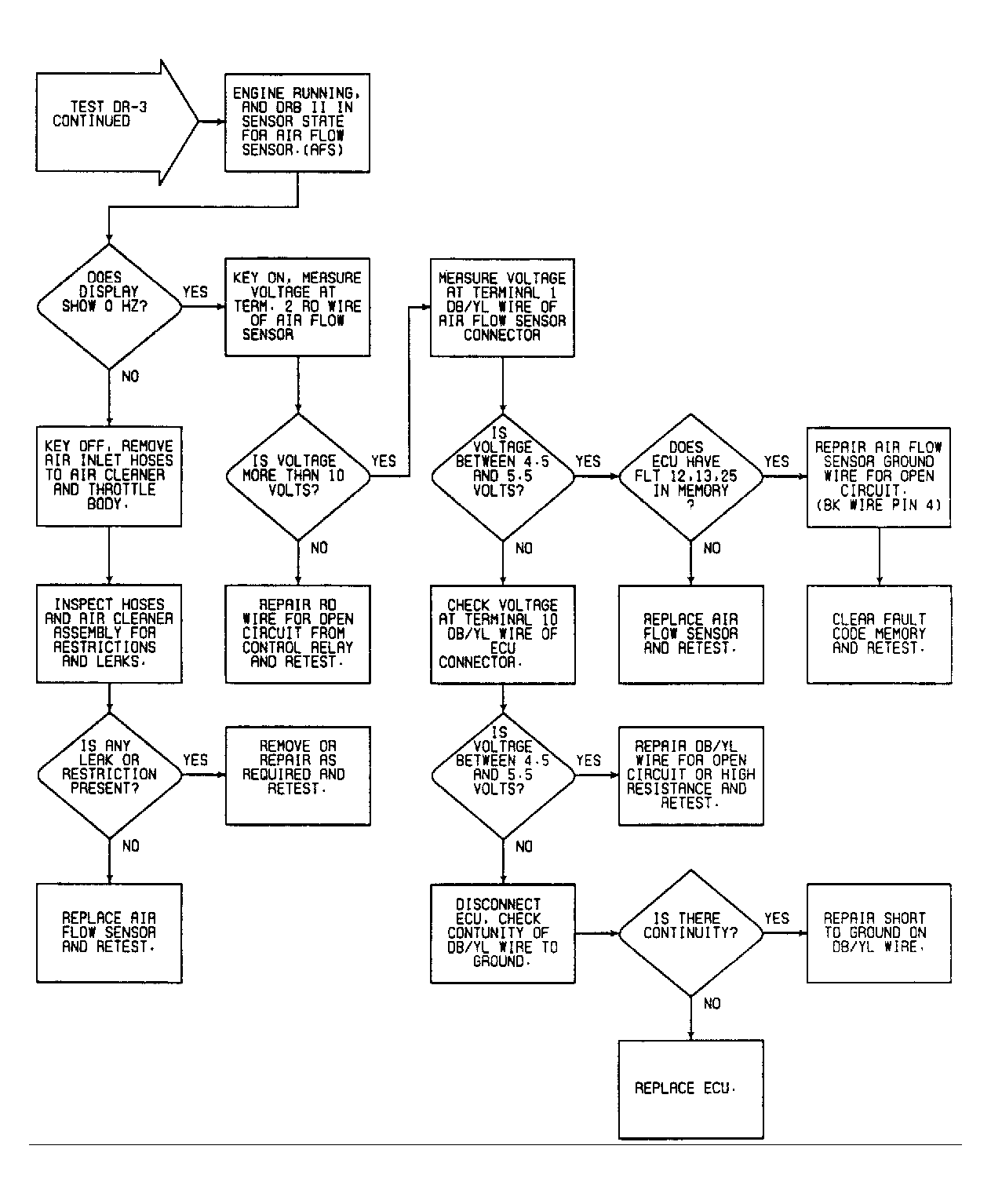

Fig 3: Flow Chart DR-3 (3.0L) (2 of 2)

G90A20107
