Dr-4: Code 13 Air Temperature Sensor Circuit
Fig 1: Circuit Diagram DR-4 (3.0L)

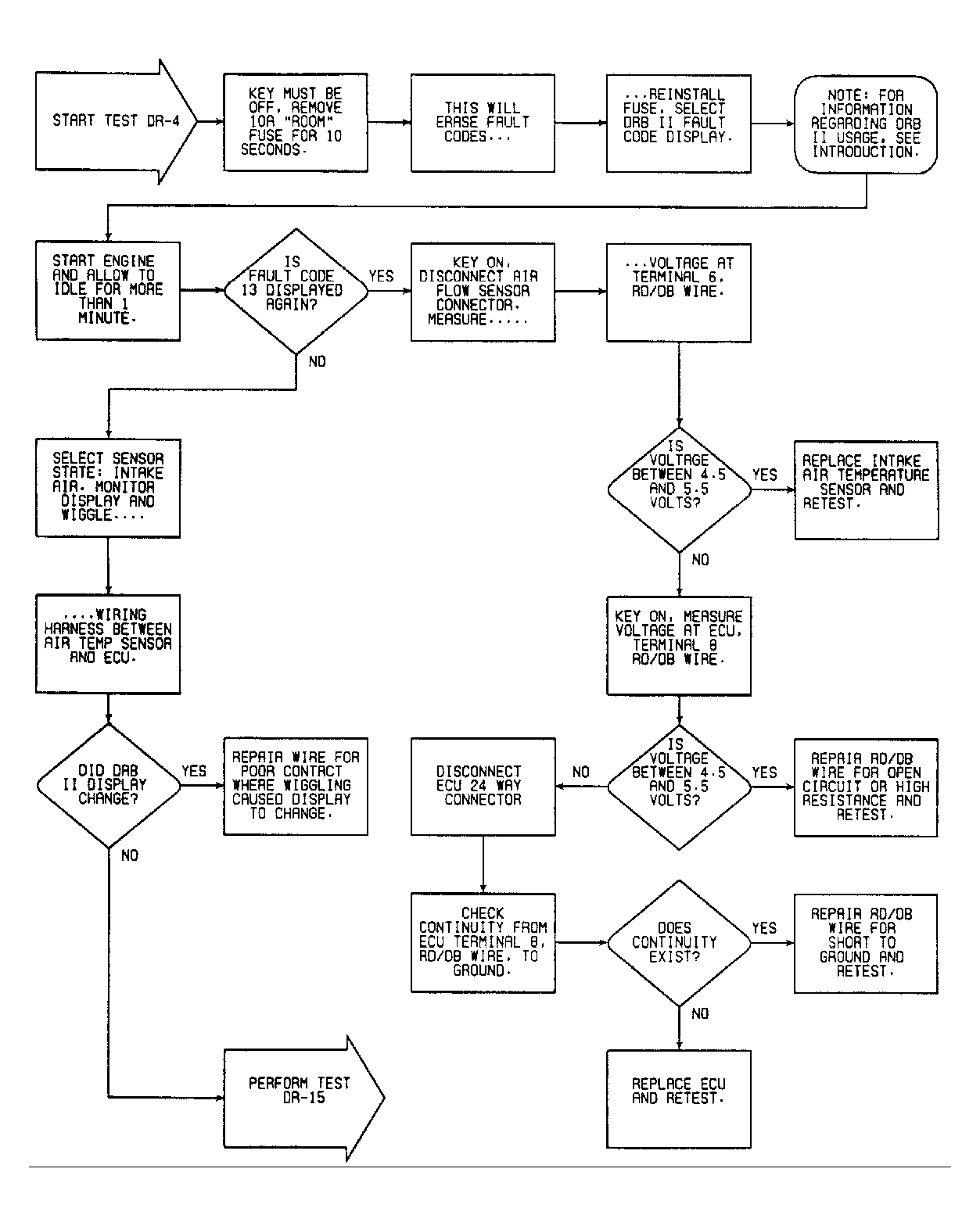

Fig 2: Flow Chart DR-4 (3.0L)
