Dr-5: Code 14 Throttle Position Sensor Circuit

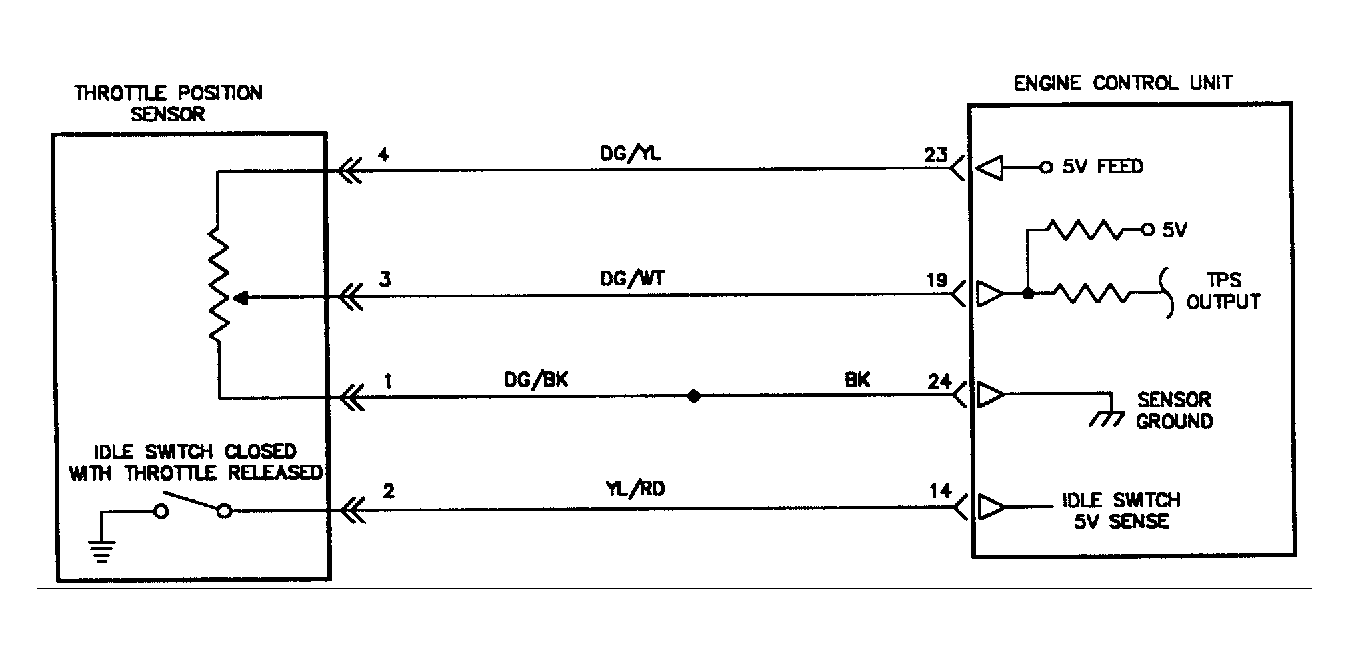

Fig 1: Circuit Diagram DR-5 (3.0L)
G90E20077

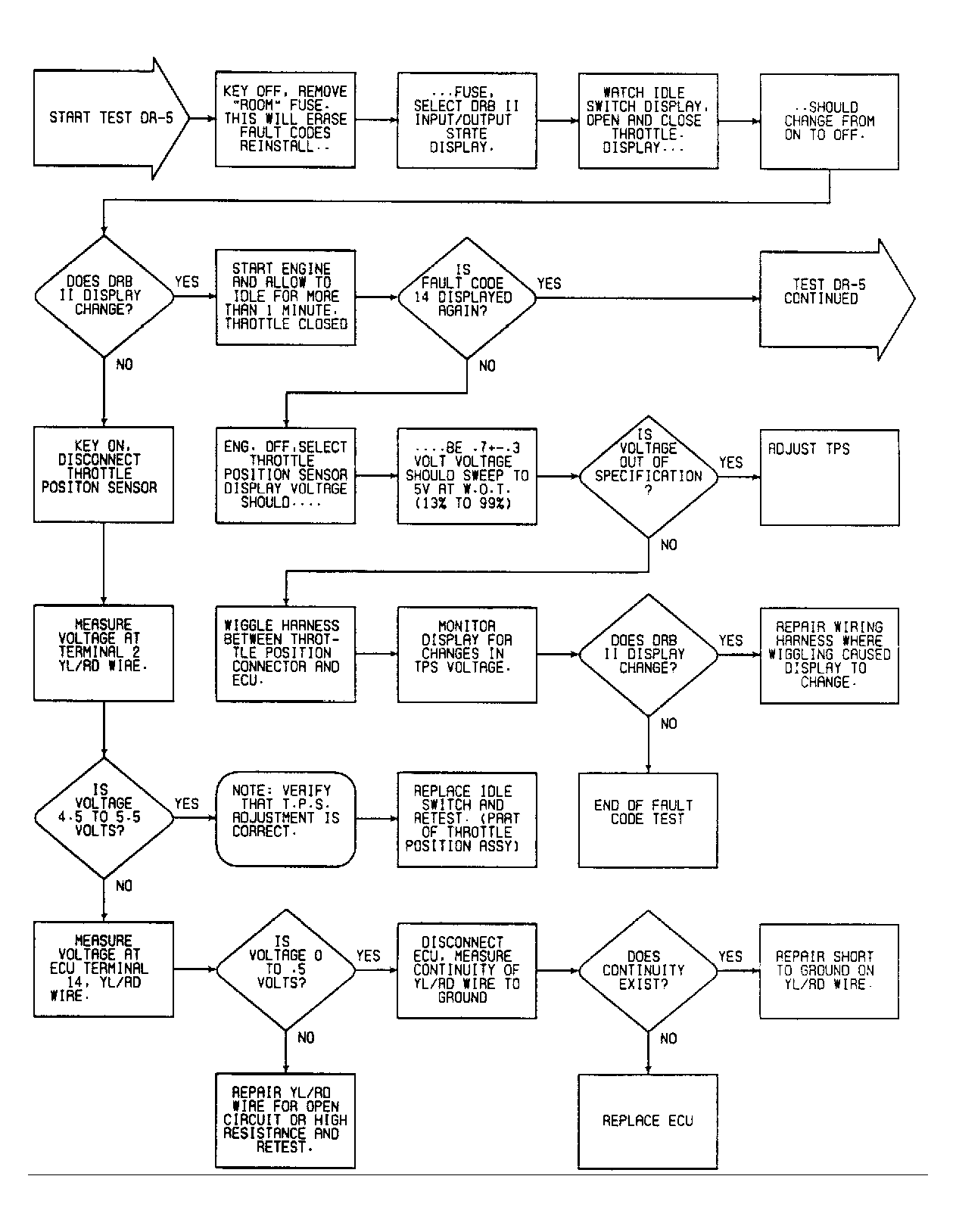

Fig 2: Flow Chart DR-5 (3.0L) (1 of 2)
G90C20109

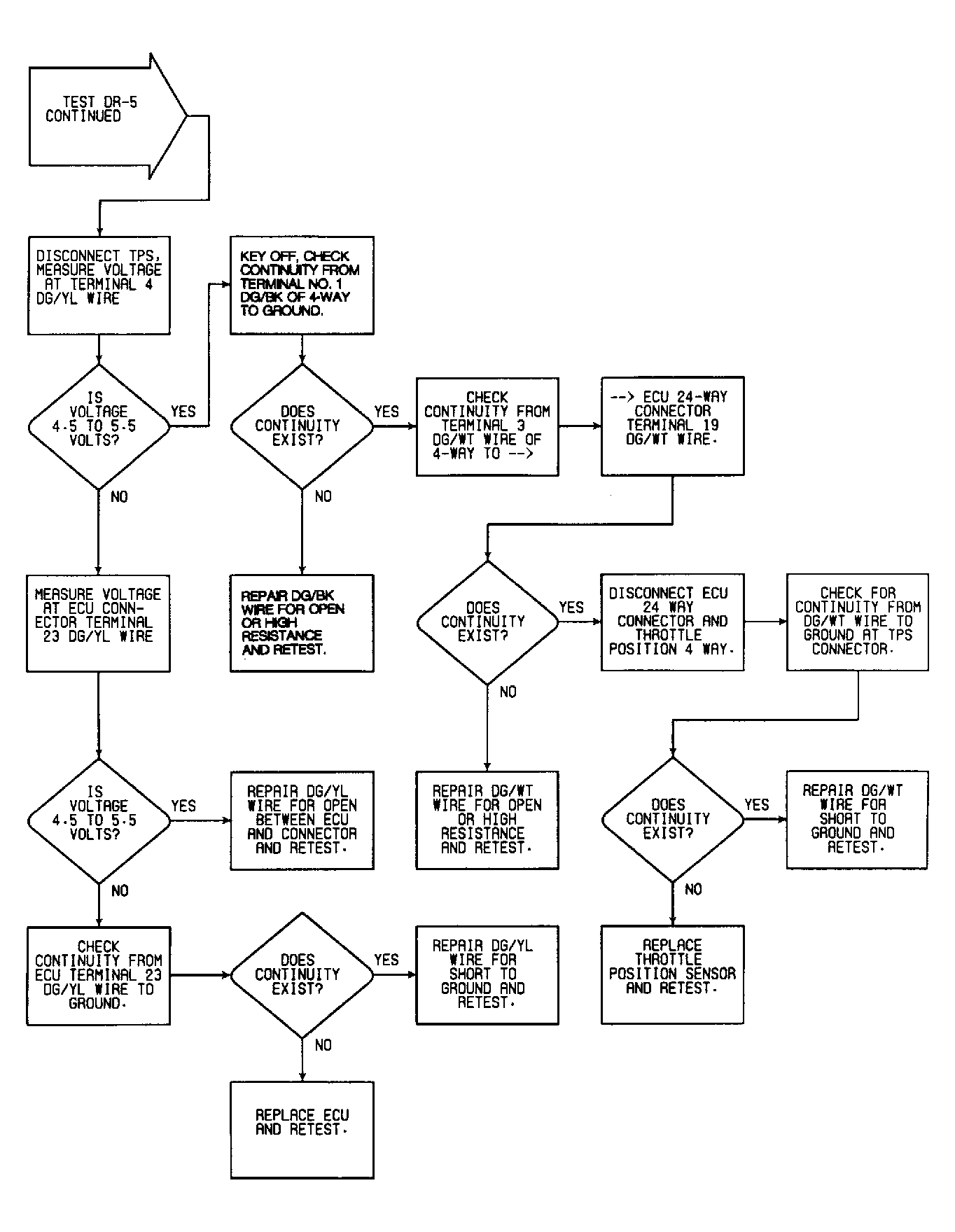

Fig 3: Flow Chart DR-5 (3.0L) (2 of 2)
G90F20110
