Dr-9: Code 23 Top Dead Center Sensor Circuit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Dr-9: Code 23 Top Dead Center Sensor Circuit
Fig 1: Circuit Diagram DR-9 (3.0L)

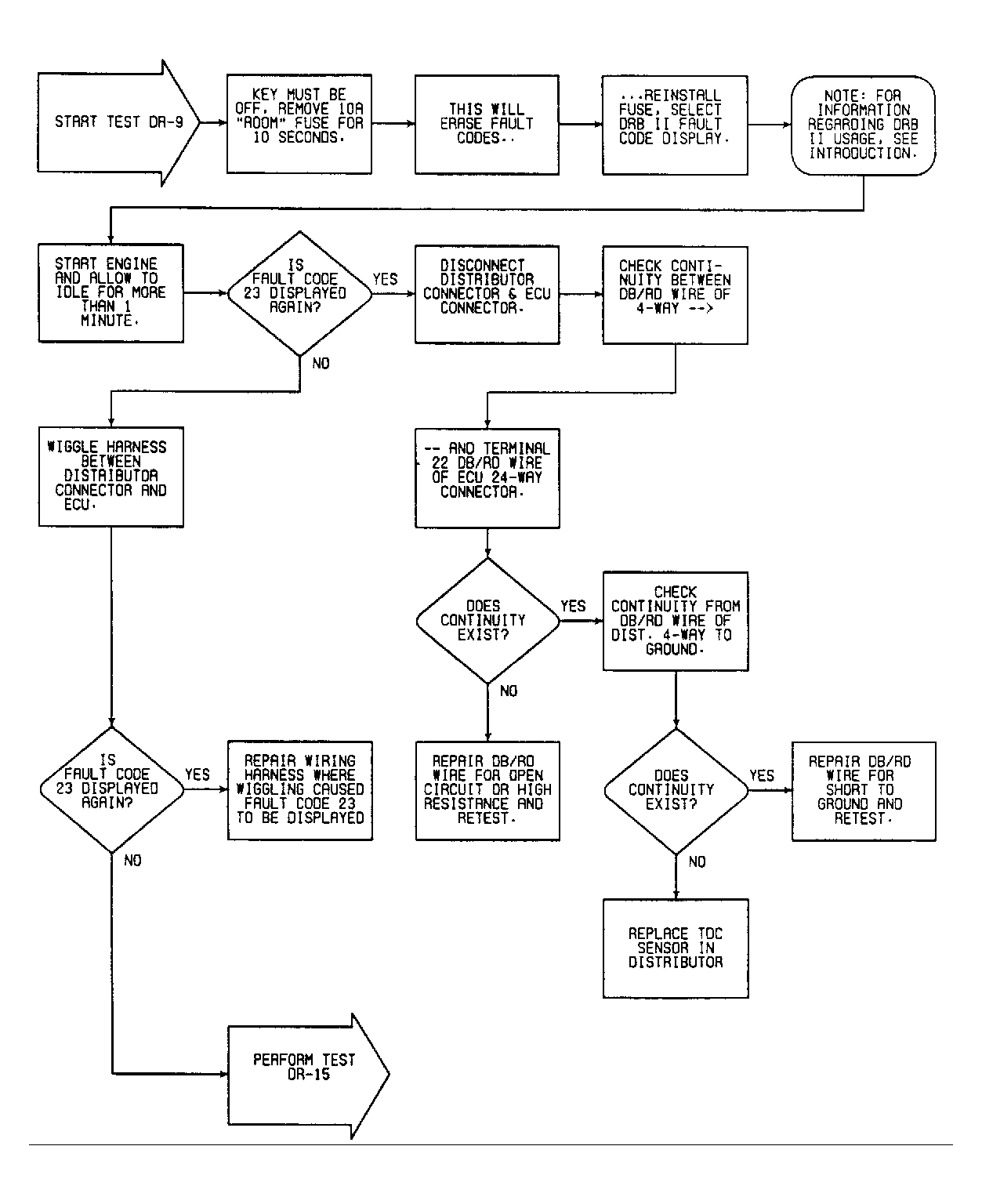

Fig 2: Flow Chart DR-9 (3.0L)
