NS-6: Testing Control Relay Circuit

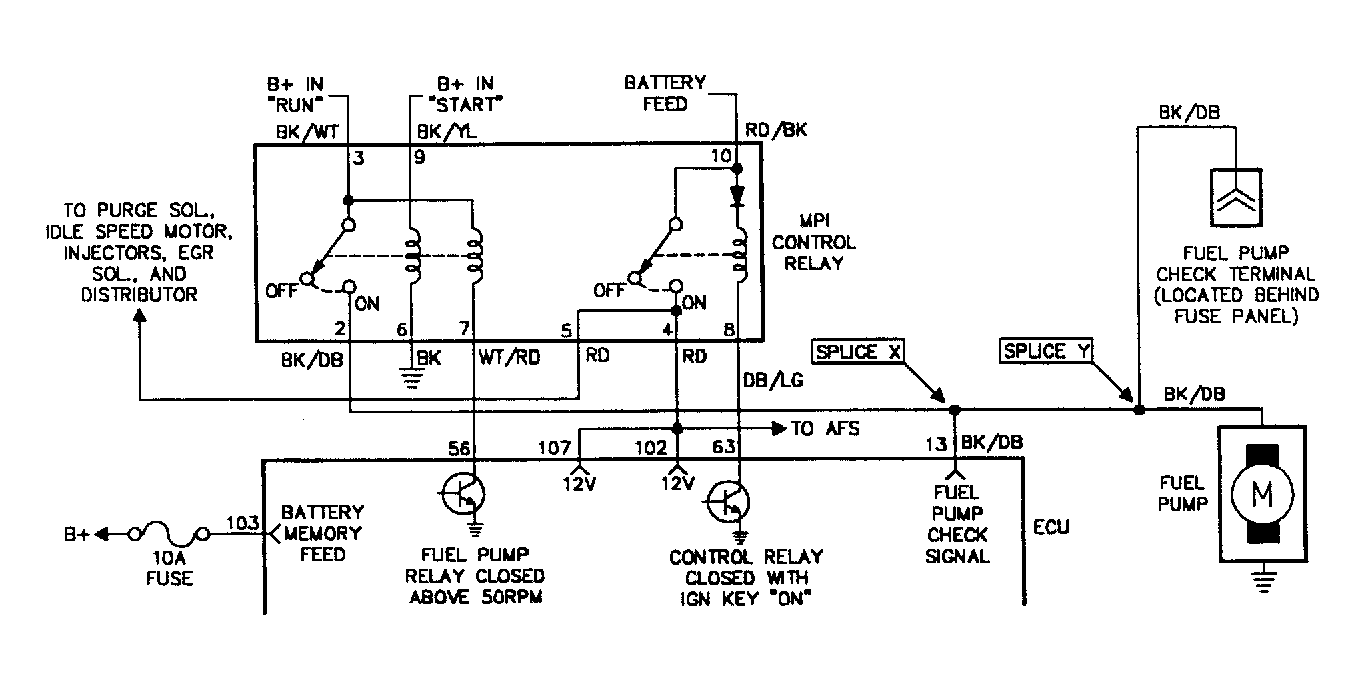

Fig 1: Circuit Diagram NS-6 (3.0L)
G90H20070

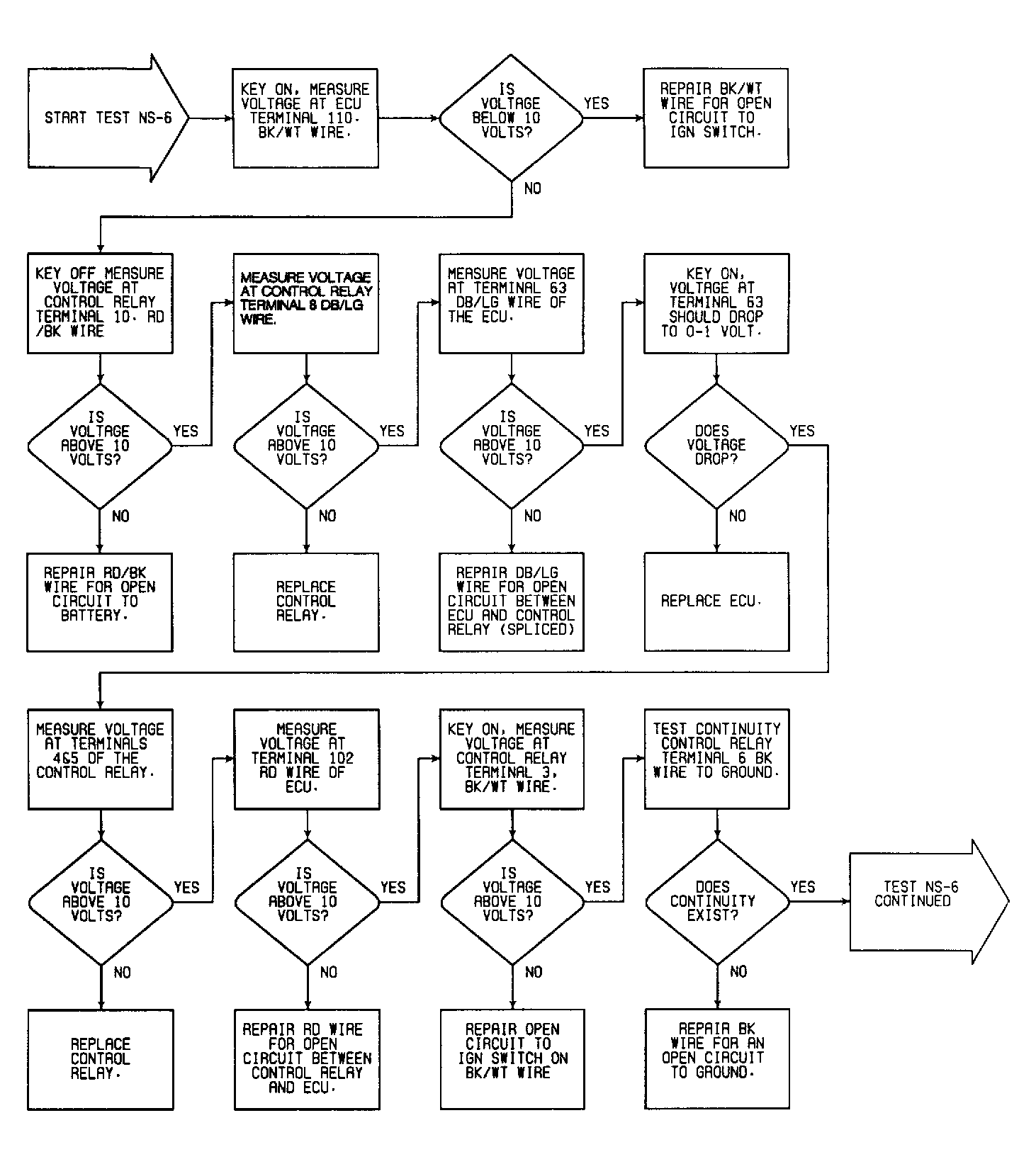

Fig 2: Flow Chart NS-6 (3.0L) (1 of 2)
G90E20101

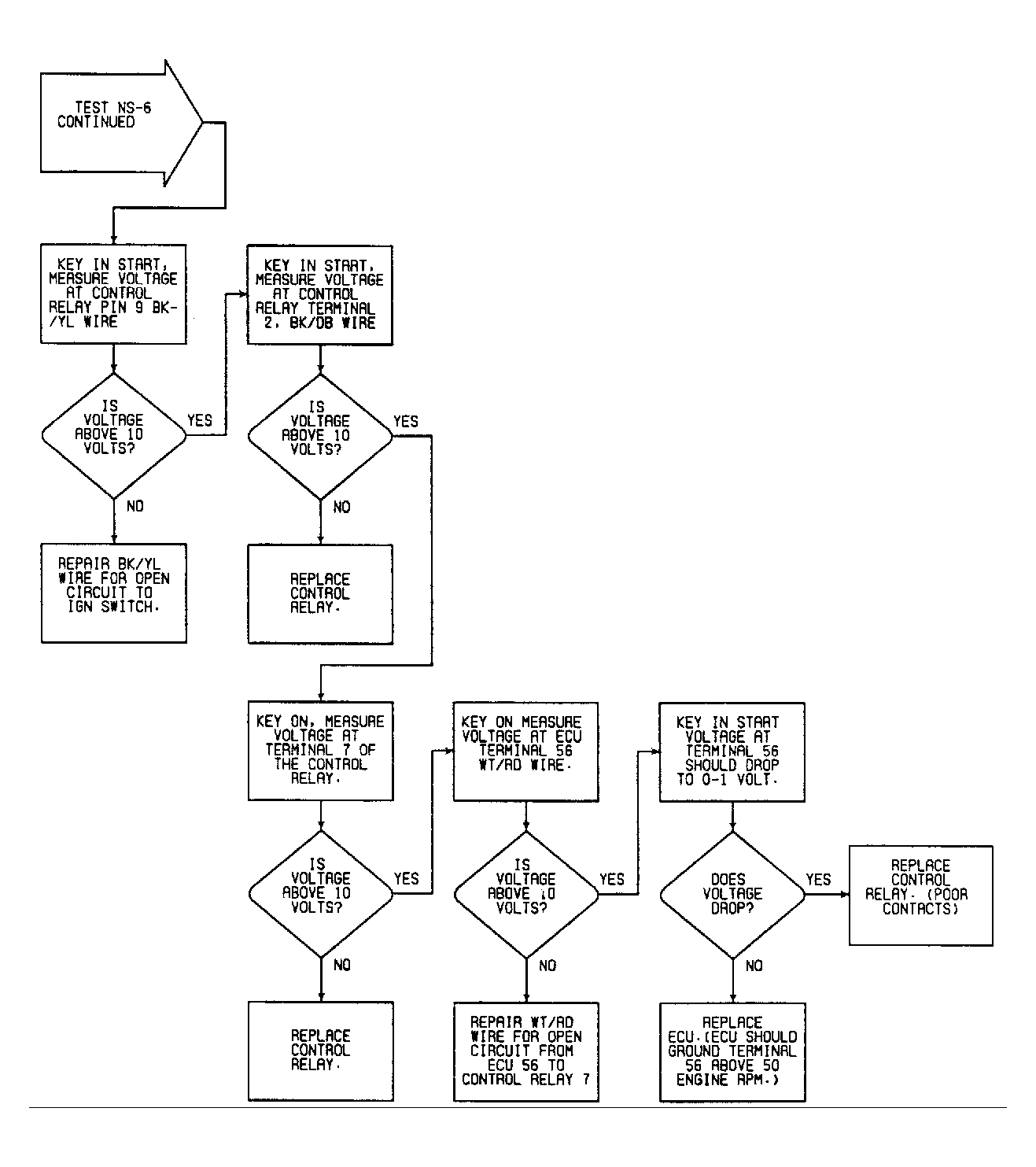

Fig 3: Flow Chart NS-6 (3.0L) (2 of 2)
G90F20102
