Dr-16: No Fault Code Tests

Fig 1: Circuit Diagram DR-16 (2.4L)

G90H19999

Fig 2: Circuit Diagram DR-16 (2.4L)

G90C20000

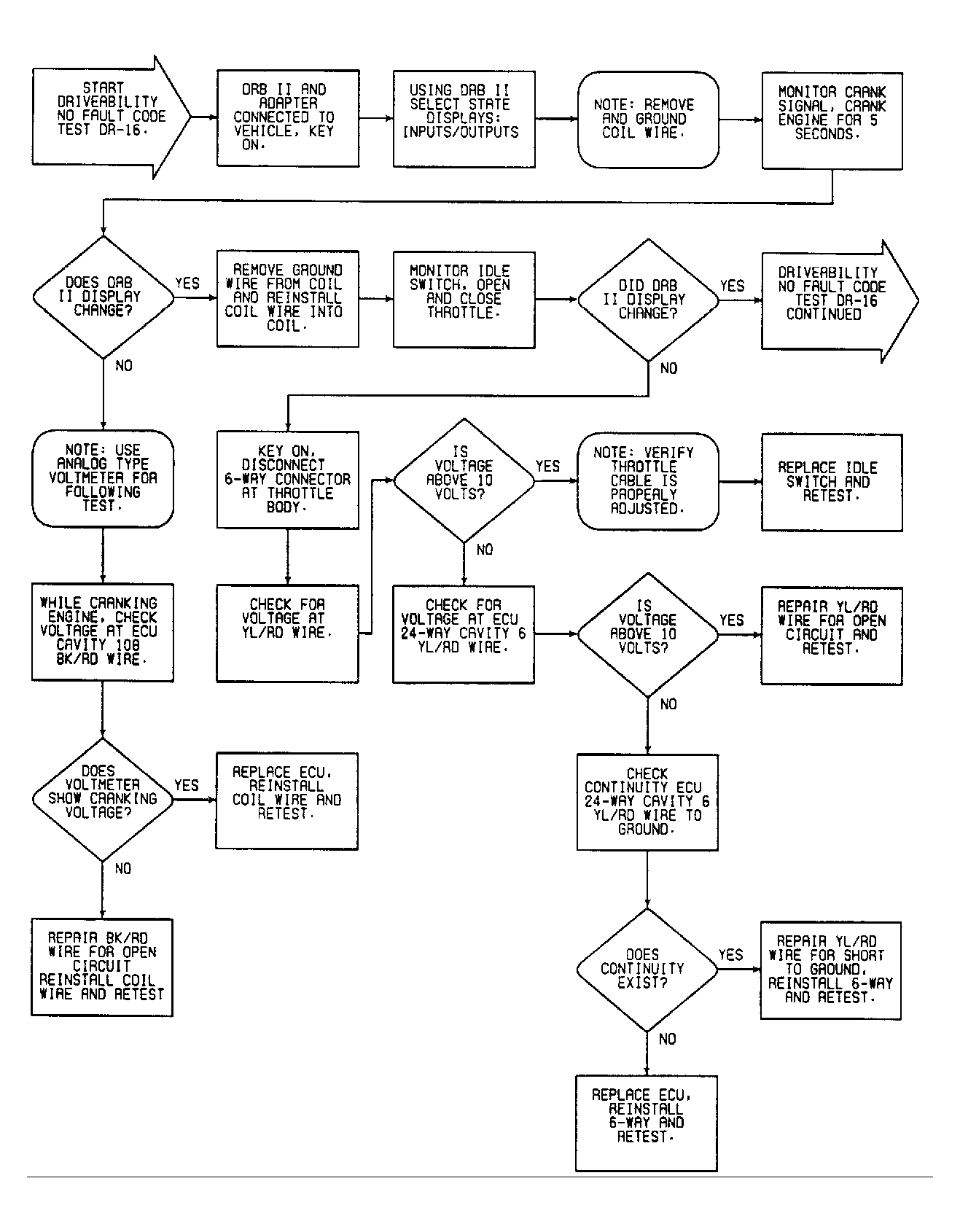

Fig 3: Flow Chart DR-16 (2.4L) (1 of 3)

G90G20053

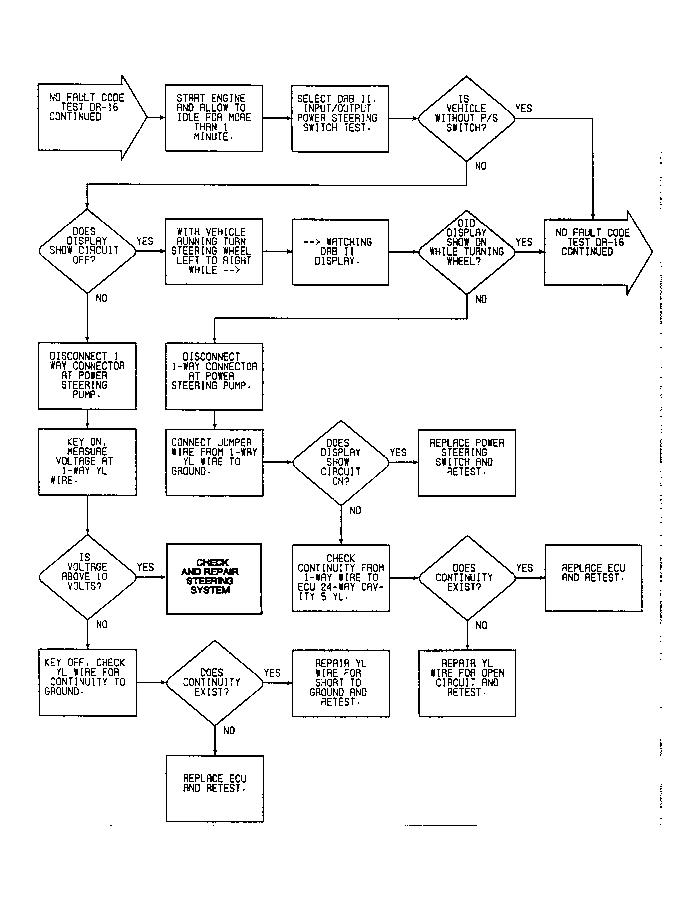

Fig 4: Flow Chart DR-16 (2.4L) (2 of 3)

G90H20054

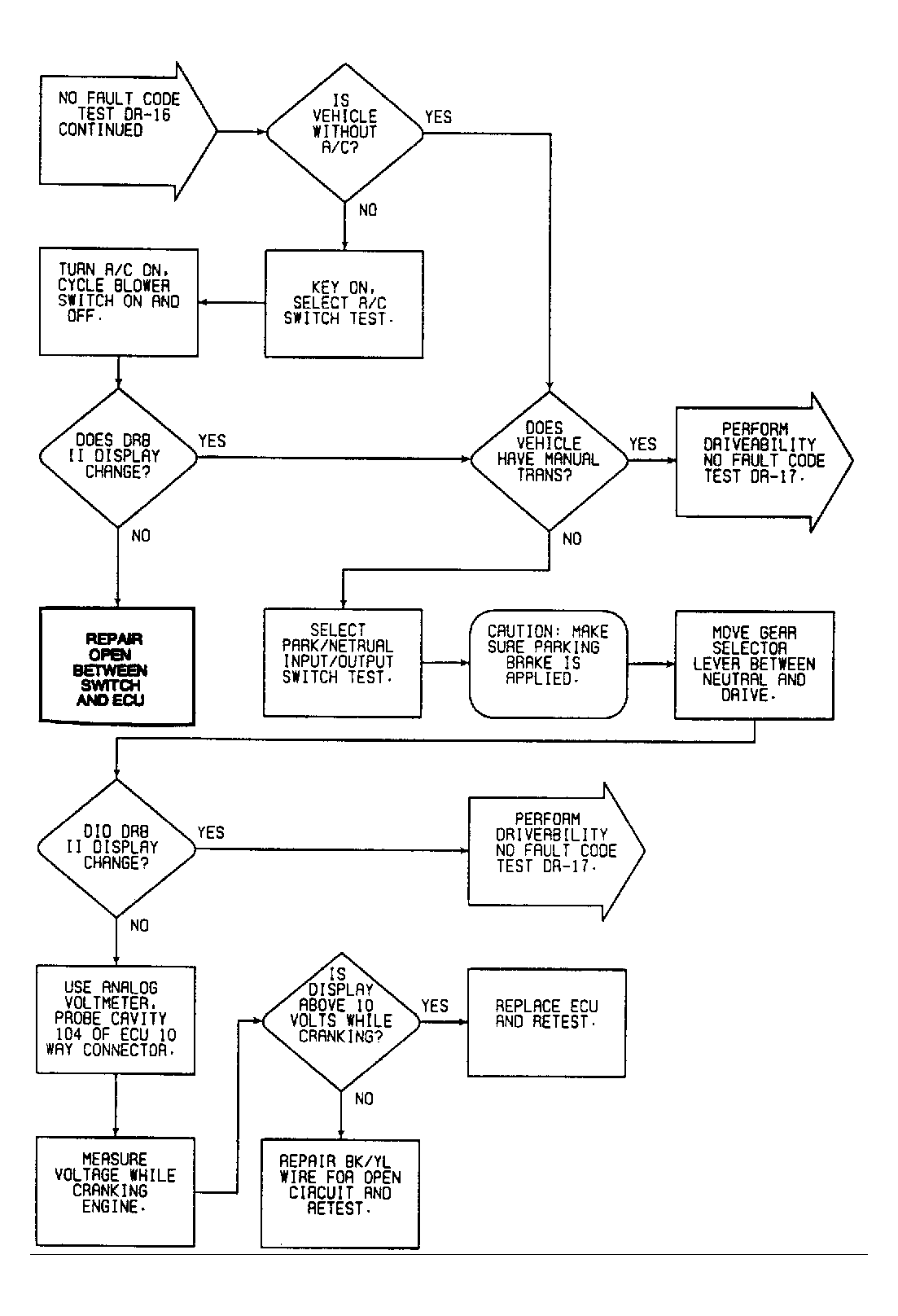

Fig 5: Flow Chart DR-16 (2.4L) (3 of 3)

G90I20055
