Inspection Using Oscilloscope

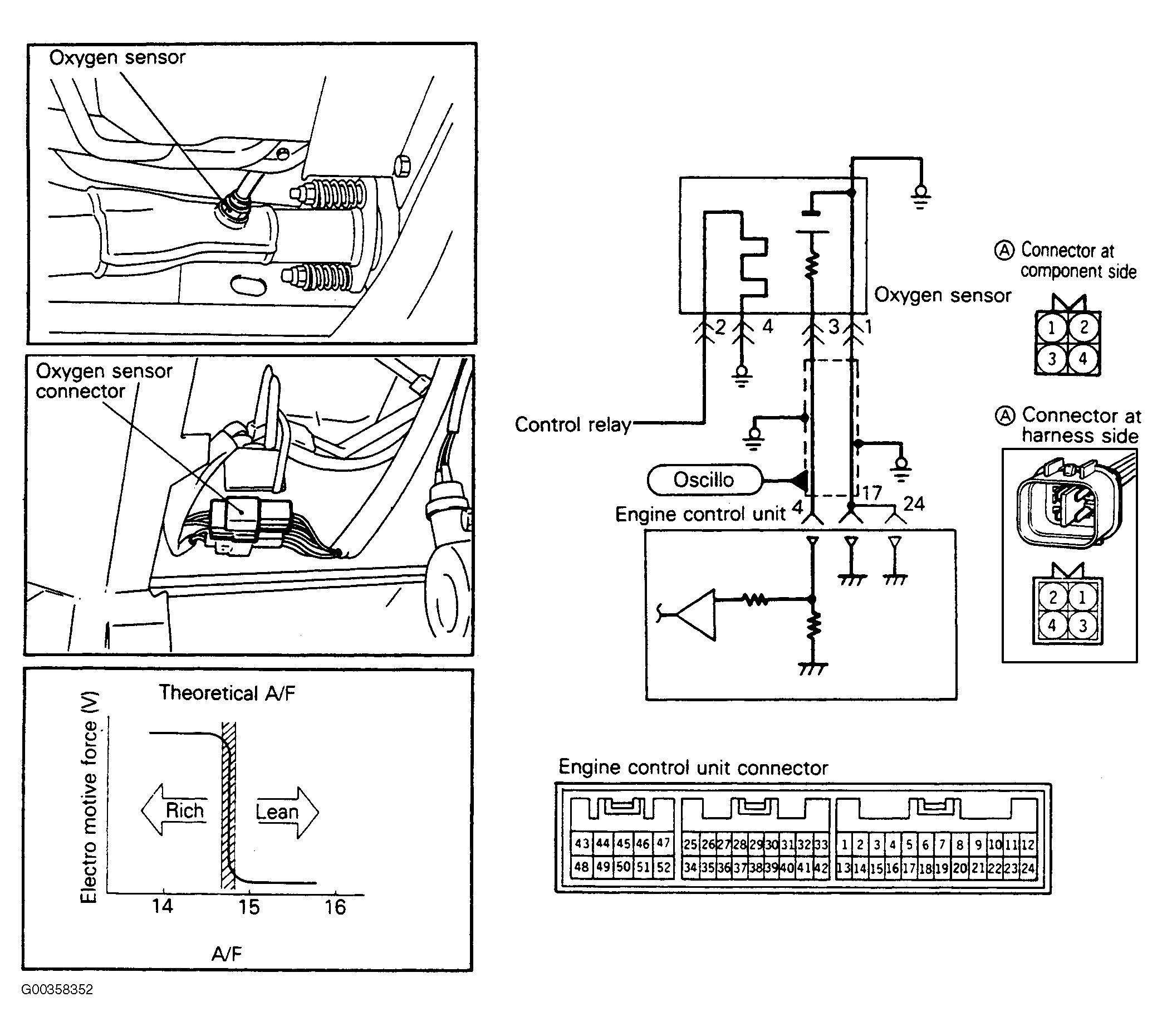

  1. Connect the probe to the oscilloscope pick-up point as shown in the circuit diagram. See Figure .
  2. After the engine is warmed up, keep the engine running at 2000 RPM, and check the waveform. For normal waveform, see Fig 1 .

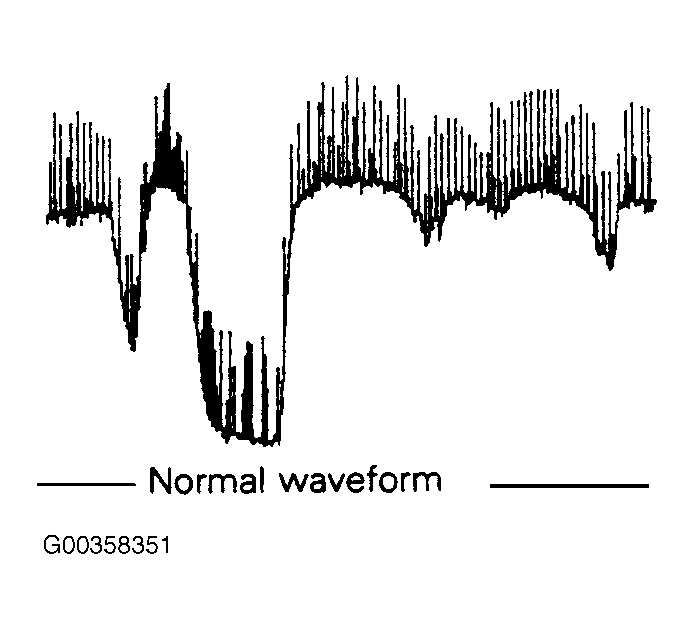

Fig 1: Identifying Normal Oxygen Sensor Waveform
G00358351Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
