Ignition Coil Resistance

Using a DVOM, measure primary coil resistance between positive and negative terminals of coil. See Fig 1 or Fig 2 . Measure secondary coil resistance between coil positive terminal and ignition coil tower. Primary and secondary coil resistance should be within specification. See IGNITION COIL RESISTANCE (OPTICAL)  table.

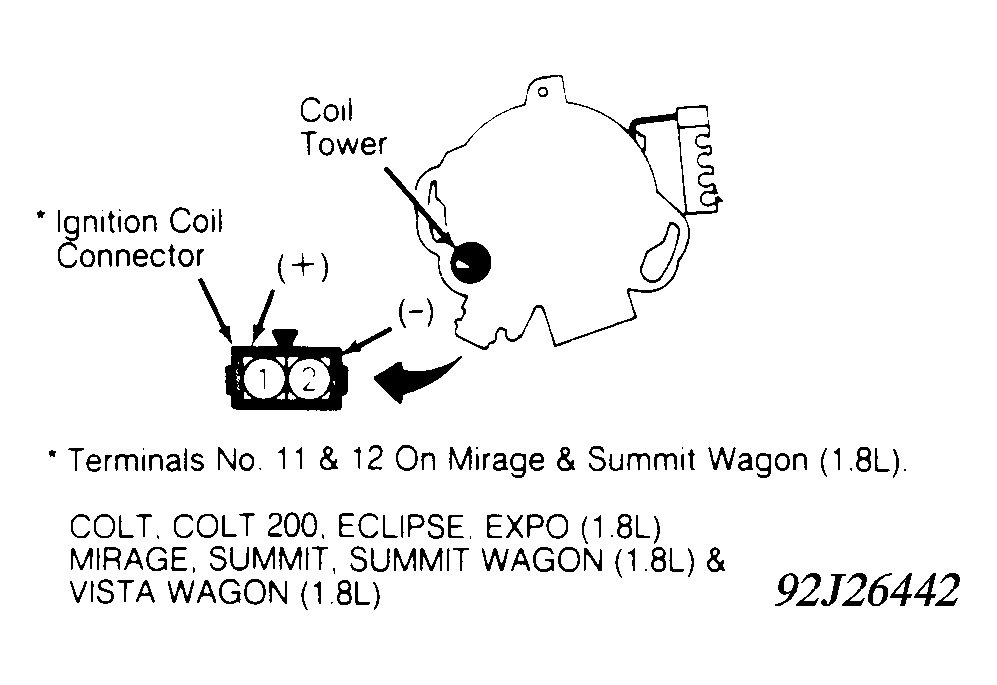

Fig 1: Ignition Coil Terminal ID (Eclipse)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Ignition Coil Terminal ID (Galant)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
