Power Transistor (Eclipse)

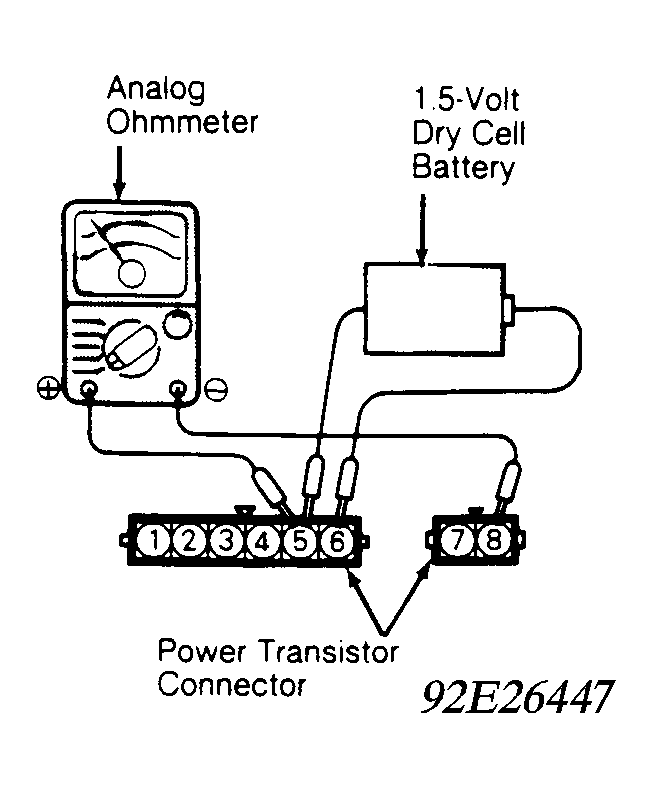

- Disconnect power transistor connector. Using a 1.5-volt dry cell battery, connect negative end of 1.5-volt battery to terminal No. 5 of power transistor and positive end of 1.5-volt battery to power transistor terminal No. 6. See Fig 1
.
- Using an analog ohmmeter, check for continuity between terminals No. 5 and 8 of power transistor. Continuity should exist. With positive end of 1.5-volt battery disconnected, no continuity should exist. Replace power transistor if it does not test as specified.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
