Ignition Coil Resistance

Using a DVOM, measure primary coil resistance between positive and negative terminals of coil. See Fig 1 -4. Measure secondary coil resistance between coil positive terminal and ignition coil tower. Primary and secondary coil resistance should be within specification. See IGNITION COIL RESISTANCE  table.

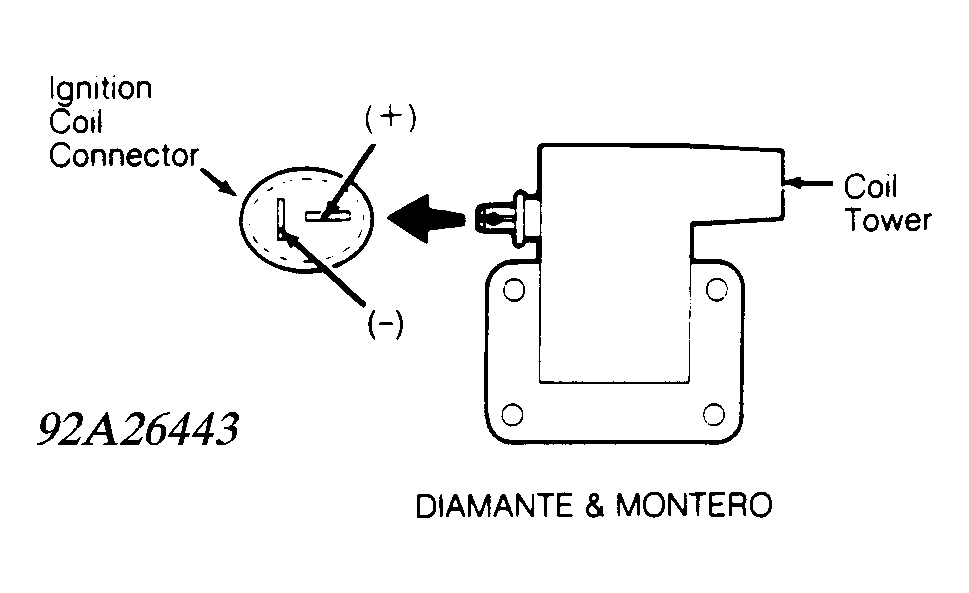

Fig 1: Ignition Coil Terminal ID (Montero)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

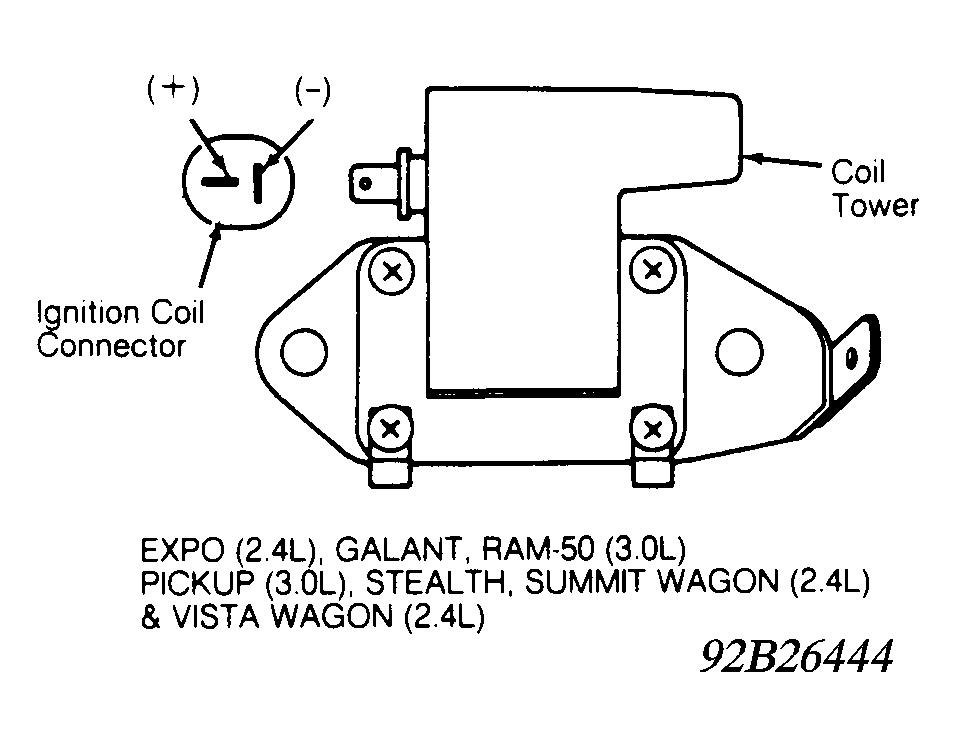

Fig 2: Ignition Coil Terminal ID (3.0L Pickup & Ram-50)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Ignition Coil Terminal ID (2.4L Pickup & Ram-50)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
