Dr-2: Fault Code Tests

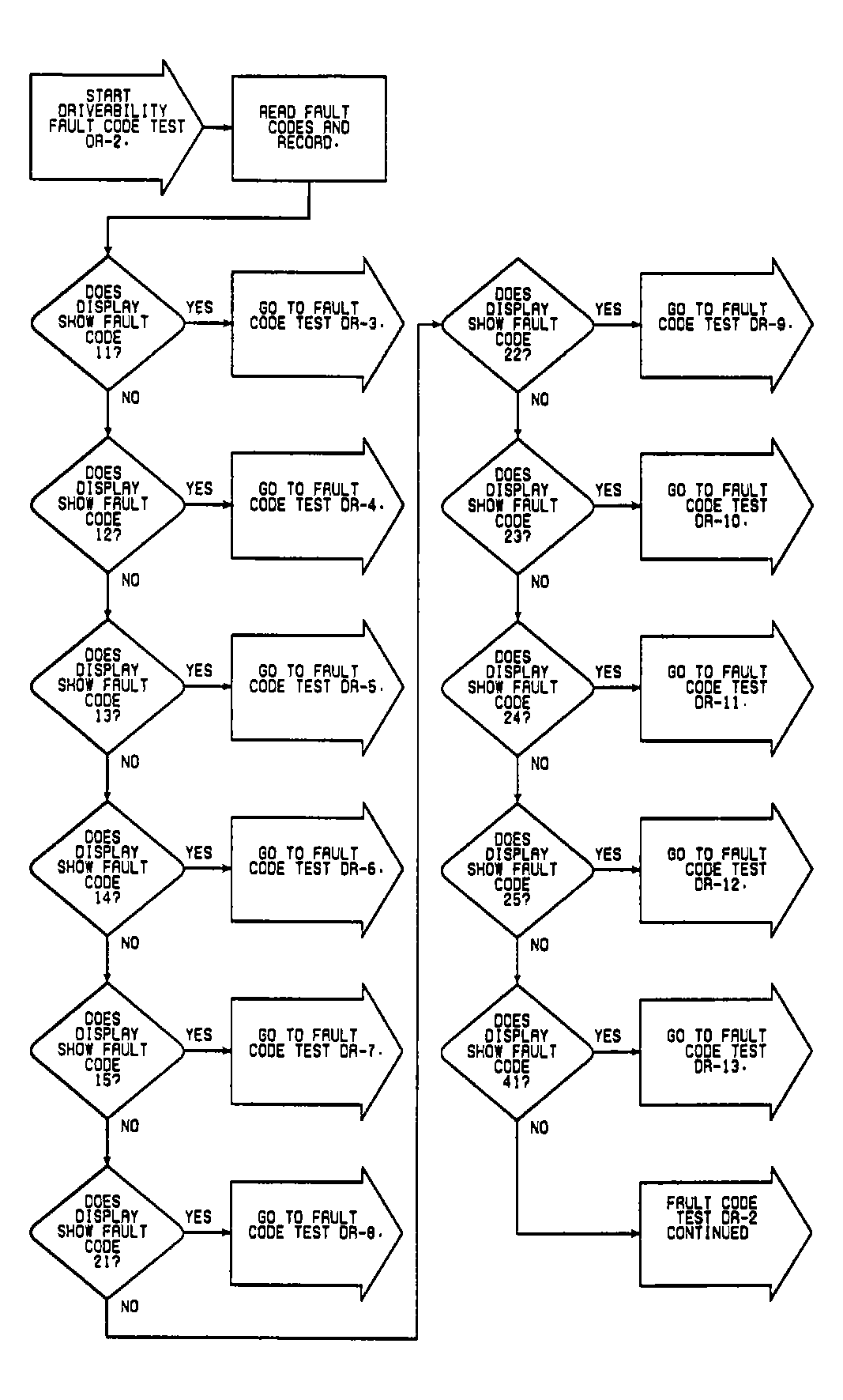

Fig 1: Test DR-2 Test Flow Chart - 2.4L (1 of 2) Fault Code Tests
G90G20020

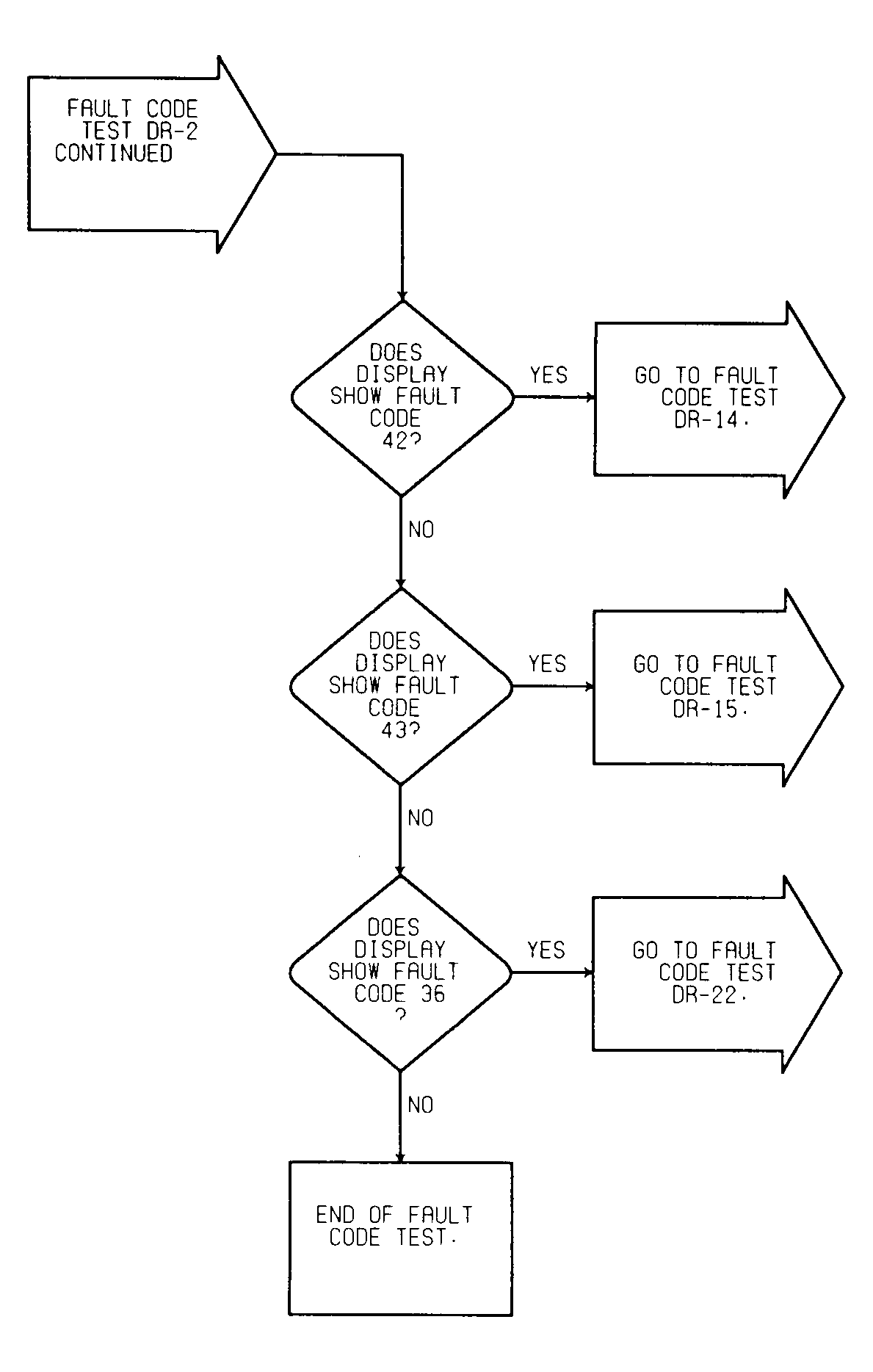

Fig 2: Test DR-2 Test Flow Chart - 2.4L (2 of 2) Fault Code Tests
G91J16468
