Dr-16: No Fault Code Sensor Tests

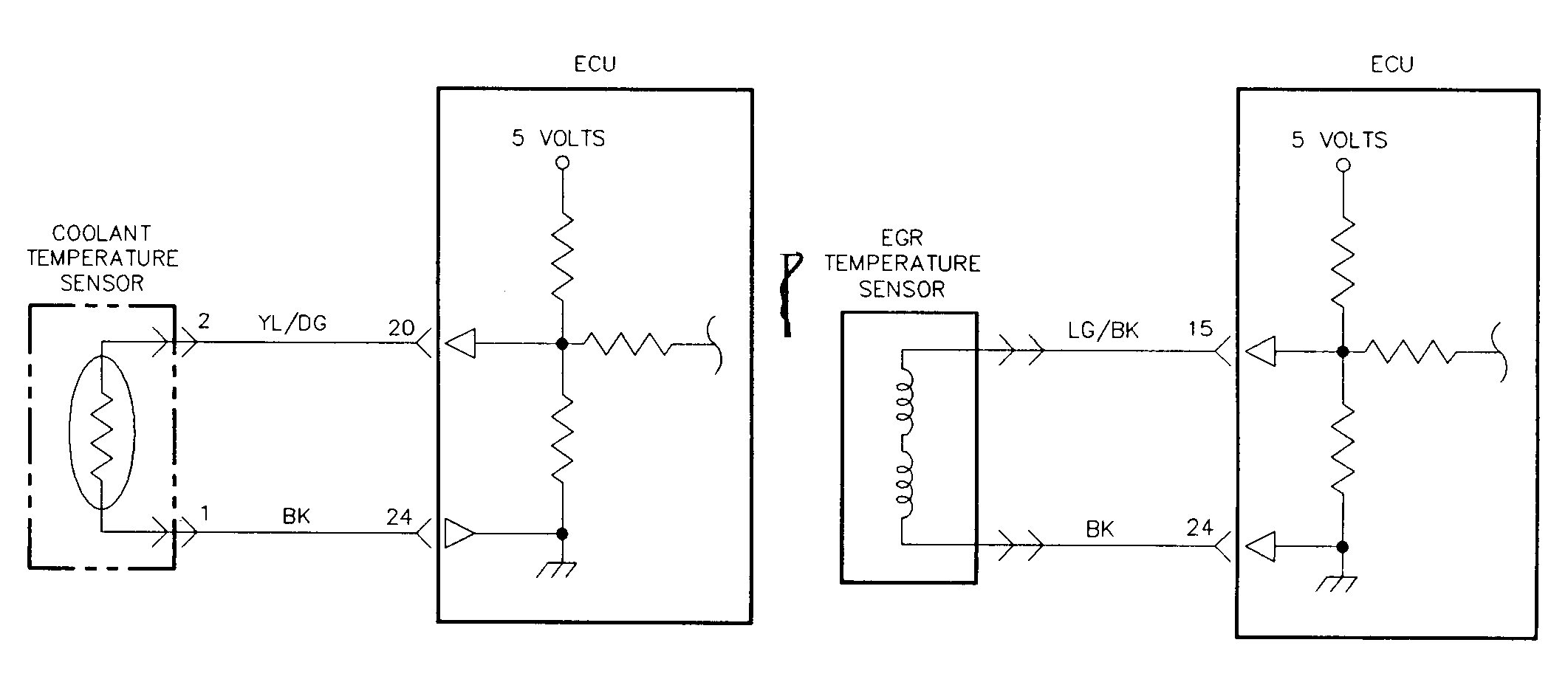

Fig 1: DR-16 Test Schematic - 3.0L (1 of 5) No Fault Code Sensor Tests
G90G20087
Fig 2: DR-16 Test Schematic - 3.0L (2 of 5) No Fault Code Sensor Tests
G90D20076
COOLANT TEMP SENSOR

Temperature (°F) Voltage Resistance (Ohms)
-22 4.41V 28,432
-4 4.19V 16,069
32 3.50V 5911
68 2.57V 2474
77 2.32V 2000
104 1.65V 1114
140 0.99V 551
176 0.59V 296
212 0.35V 164
230 0.23V 106
DRB-II EGR TEMP

EGR Temp. Display Engine Condition
160°F Hot Idle (198°F Coolant)
350°F 25 MPH at 3500 RPM
311°F 55 MPH at 3500 RPM
Fig 3: DR-16 Test Schematic - 3.0L (3 of 5) No Fault Code Sensor Tests
G90I20089

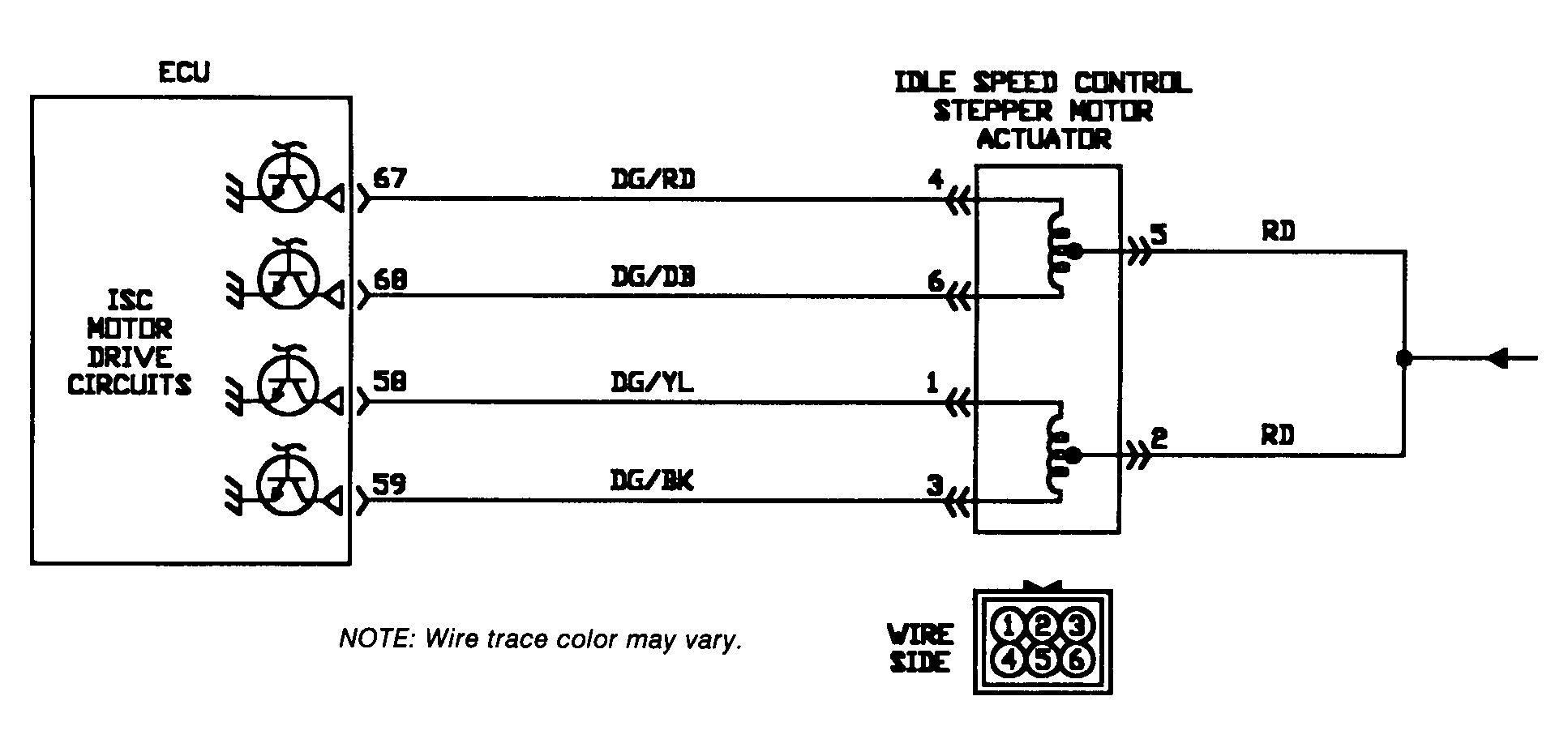

Fig 4: DR-16 Test Schematic - 3.0L (4 of 5) No Fault Code Sensor Tests
G91D16694
Fig 5: DR-16 Test Schematic - 3.0L (5 of 5) No Fault Code Sensor Tests
G90C20091
Fig 6: DR-16 Test Flow Chart - 3.0L (1 of 5) No Fault Code Sensor Tests
G90A20131
Fig 7: DR-16 Test Flow Chart - 3.0L (2 of 5) No Fault Code Sensor Tests
G90B20132
Fig 8: DR-16 Test Flow Chart - 3.0L (3 of 5) No Fault Code Sensor Tests
G90C20133
Fig 9: DR-16 Test Flow Chart - 3.0L (4 of 5) No Fault Code Sensor Tests
G90D20134
Fig 10: DR-16 Test Flow Chart - 3.0L (5 of 5) No Fault Code Sensor Tests
G90E20135
