NS-3: Testing Fuel Pump Circuit

Fig 1: NS-3 Test Schematic - 3.0L Testing Fuel Pump Circuit
G90H20070

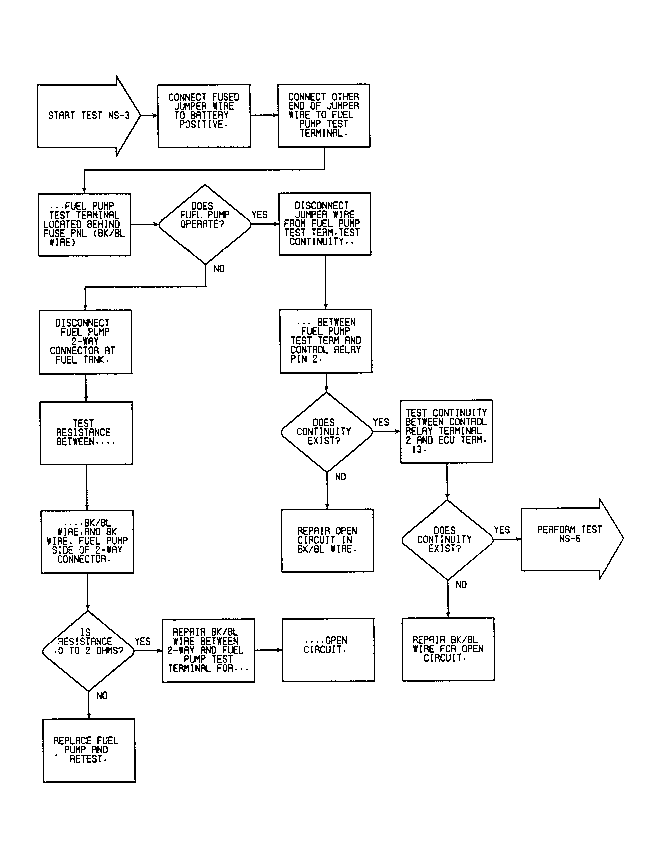

Fig 2: NS-3 Test Flow Chart - 3.0L Testing Fuel Pump Circuit
G90J20098
