Ignition Coil Resistance

Using a DVOM, measure primary coil resistance between positive and negative terminals of coil. See Fig 1 or Fig 2 . Measure secondary coil resistance between coil positive terminal and ignition coil tower. Primary and secondary coil resistance should be within specification. See IGNITION COIL RESISTANCE table.

IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)

Application	Primary	Secondary
1.8L (VIN B)	.9-1.2	19,000-27,000
2.0L (VIN D)	.72-.88	10,890-13,310

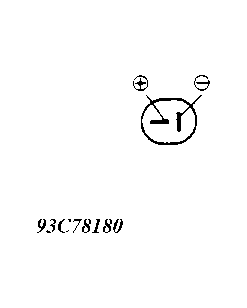

Fig 1: Ignition Coil Connectors ID

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Ignition Coil Connectors ID (Galant)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
