Terminal Identification

NOTE: The following terminals are shown as viewed from component side.

TERMINAL ID DIRECTORY

Connector	Illustration
Airflow Sensor	Fig 1 , Fig 2 , Fig 3
CKP/CMP Sensor	Fig 4 , Fig 5
Coolant Temperature Sensor	Fig 6
ECM	Fig 7 , Fig 8
EGR Temperature Sensor	Fig 9
Fuel Injector	Fig 10
Fuel Pump	Fig 11
Idle Air Control Valve Position Sensor	Fig 12
Idle Speed Control Motor & Position Sensor	Fig 13
Ignition Coil	Fig 14 , Fig 15
Induction Control Valve Position Sensor	Fig 16
Knock Sensor	Fig 17
MAP Sensor	Fig 18
MPI Relay	Fig 19
Oxygen (O2) Sensor	Fig 20 , Fig 21 , Fig 22 , Fig 23
Throttle Position Sensor	Fig 24
Traction Control Vacuum Solenoid	Fig 25
Traction Control Vent Solenoid	Fig 26
Transaxle Control Module	Fig 27

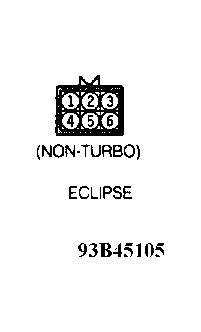

Fig 1: Airflow Sensor Terminal ID (Eclipse Non-Turbo)

G93B45105

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

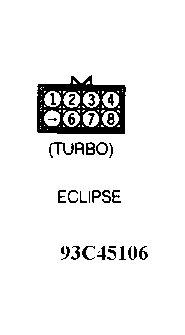

Fig 2: Airflow Sensor Terminal ID (Eclipse Turbo)

G93C45106

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Airflow Sensor Terminal ID (Galant)

G93D45107

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

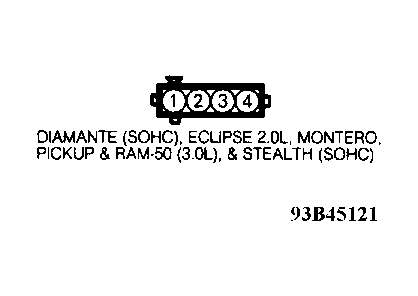

Fig 4: CKP/CMP Sensor Terminal ID (Eclipse 2.0L)

G93B45121

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: CKP/CMP Sensor Terminal ID (All Other Models)

G93E45124

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Coolant Temperature Sensor Terminal ID

G93G45126

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: ECM Terminal ID (Eclipse)

G93E45108

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 8: ECM Terminal ID (Galant)

G50C17287

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 9: EGR Temperature Sensor Terminal ID

G93J80258

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

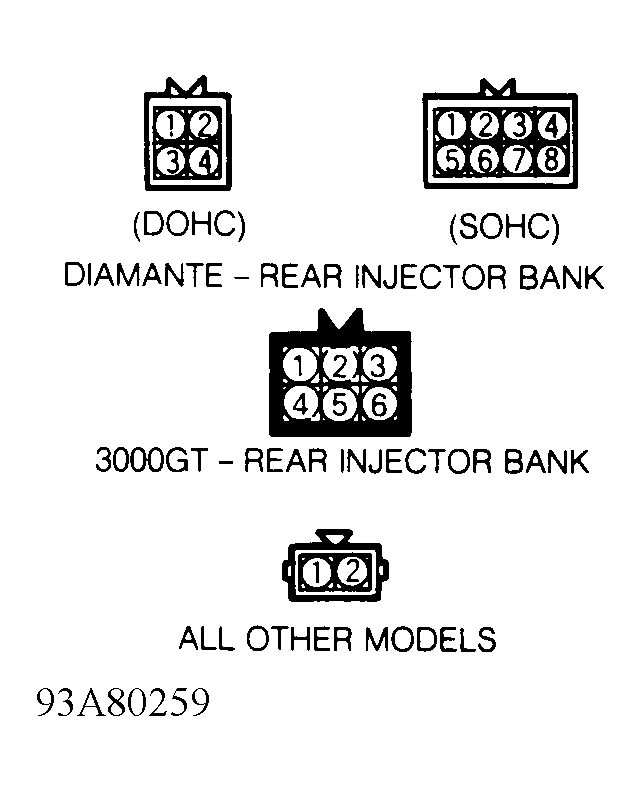

Fig 10: Fuel Injector Terminal ID

G93A80259

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

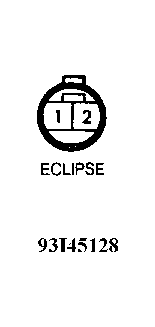

Fig 11: Fuel Pump Terminal ID

G93I45128

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 12: Idle Air Control Valve Position Sensor Terminal ID

G93E80261

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

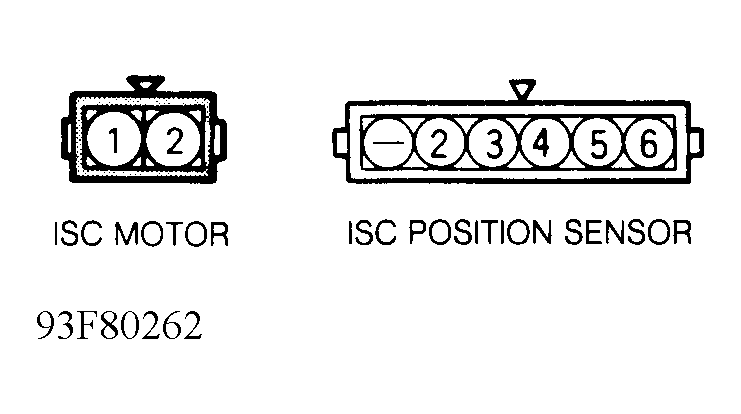

Fig 13: Idle Speed Control Motor & Position Sensor Terminal ID

G93F80262

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

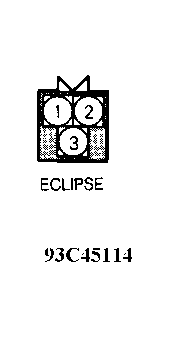

Fig 14: Ignition Coil Terminal ID (Eclipse)

G93C45114

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

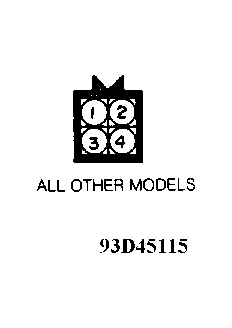

Fig 15: Ignition Coil Terminal ID (Galant)

G93D45115

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 16: Induction Control Valve Position Sensor Terminal ID

G93H80264

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 17: Knock Sensor Terminal ID

G93I80265

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 18: Map Sensor Terminal ID

G93J80266

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 19: MPI Relay Terminal ID

G93A80267

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

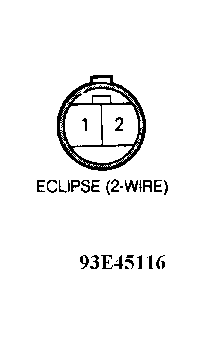

Fig 20: Oxygen (O2) Sensor Terminal ID (Eclipse 2-Wire)

G93E45116

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

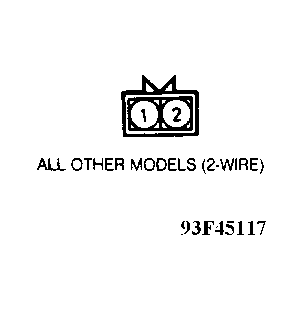

Fig 21: Oxygen (O2) Sensor Terminal ID (All Other 2-Wire)

G93F45117

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

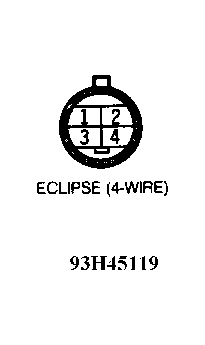

Fig 22: Oxygen (O2) Sensor Terminal ID (Eclipse 4-Wire)

G93H45119

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

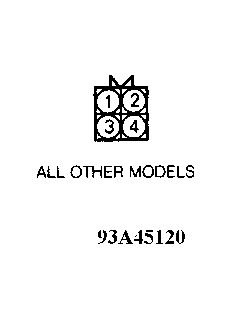

Fig 23: Oxygen (O2) Sensor Terminal ID (All Other 4-Wire)

G93A45120

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 24: Throttle Position Sensor Terminal ID

G93C80269

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 25: Traction Control Vacuum Solenoid Terminal ID

G93F80270

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 26: Traction Control Vent Solenoid Terminal ID

G93G80271

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 27: Transaxle Control Module Terminal ID

G93H80272

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
