Ignition Coil Resistance

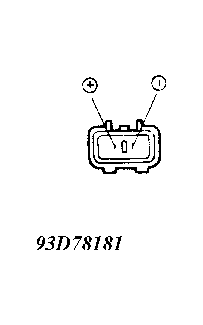

Using a DVOM, measure primary coil resistance between positive and negative terminals of coil. See Fig 1 . Measure secondary coil resistance between coil positive terminal and ignition coil tower. Primary and secondary coil resistance should be within specification. See IGNITION COIL RESISTANCE table.
IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)
| Application | Primary | Secondary |
|---|---|---|
| 1.5L (VIN J) | .72-.88 | 10,300-13,900 |
