Terminal Identification

NOTE: The following terminals are shown as viewed from component side of connector.

TERMINAL IDENTIFICATION DIRECTORY

Connector	See Figure
Airflow Sensor	Fig 1 and Fig 2
CKP/CMP Sensor	Fig 3 and Fig 4
Coolant Temperature Sensor	Fig 5
ECM	Fig 6
EGR Temperature Sensor	Fig 7
Fuel Injector	Fig 8
Fuel Pump	Fig 9
Idle Air Control Valve Position Sensor	Fig 10
Idle Speed Control Motor & Position Sensor	Fig 11 and Fig 12
Ignition Coil	Fig 13
Induction Control Valve Position Sensor	Fig 14
Knock Sensor	Fig 15
MAP Sensor	Fig 16
MFI Relay	Fig 17 and Fig 18
Oxygen Sensor (O2S)	Fig 19 and Fig 20
Throttle Position Sensor	Fig 21
Traction Control Vacuum Solenoid	Fig 22
Traction Control Vent Solenoid	Fig 23
Transaxle Control Module	Fig 24

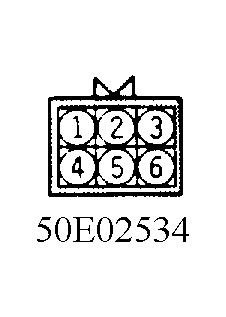

Fig 1: Airflow Sensor Terminal ID (Non-Turbo)

G50E02534

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

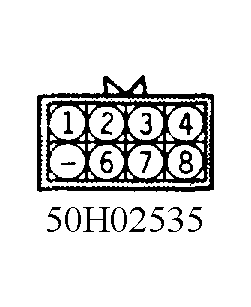

Fig 2: Airflow Sensor Terminal ID (Turbo)

G50H02535

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Identifying CKP/CMP Sensor Terminals (1.8L)

G94G44319

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

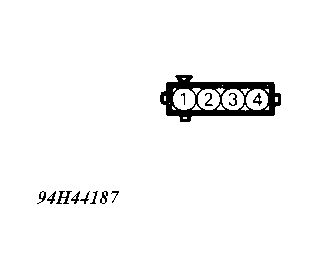

Fig 4: Identifying CKP/CMP Sensor Terminals (2.0L)

G94H44187

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Engine Coolant Temperature (ECT) Sensor Terminal ID

G94H45218

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

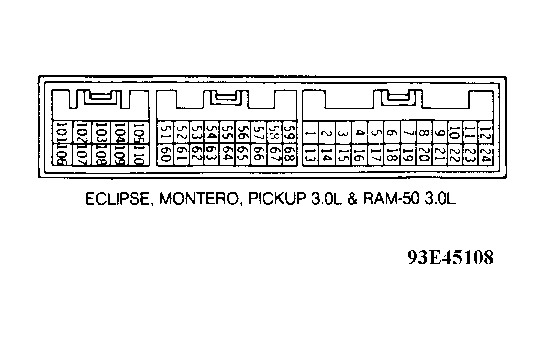

Fig 6: Identifying ECM Terminals

G93E45108

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Identifying EGR Temperature Sensor Terminals

G93J80258

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 8: Identifying Fuel Injector Terminals

G93B45113

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 9: Identifying Fuel Pump Terminals

G94F45216

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 10: Idle Air Control Valve Position Sensor Terminal ID

G93E80261

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 11: Idle Speed Control Motor Sensor Terminal ID

G50A02532

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 12: Idle Speed Control Position Sensor Terminal ID

G50C02533

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

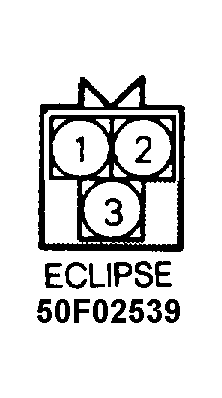

Fig 13: Identifying Ignition Coil Terminals

G50F02539

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 14: Induction Control Valve Position Sensor Terminal ID

G93H80264

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 15: Identifying Knock Sensor Terminals

G93I80265

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 16: Identifying Map Sensor Terminals

G93J80266

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 17: Identifying MFI Relay Terminals (1.8L)

G94H44559

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

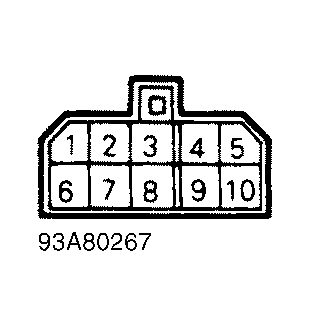

Fig 18: Identifying MFI Relay Terminals (2.0L)

G93A80267

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

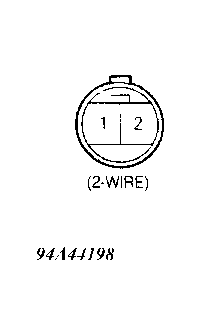

Fig 19: Oxygen Sensor (O2S) Terminal ID (2-Wire)

G94A44198

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

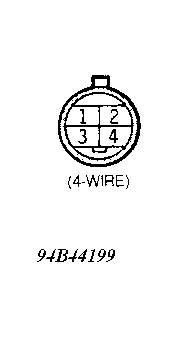

Fig 20: Oxygen Sensor (O2S) Terminal ID (4-Wire)

G94B44199

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 21: Identifying Throttle Position Sensor Terminals

G93C80269

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 22: Identifying Traction Control Vacuum Solenoid Terminals

G93F80270

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 23: Identifying Traction Control Vent Solenoid Terminals

G93G80271

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 24: Identifying Transaxle Control Module Terminals

G93H80272

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
