Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

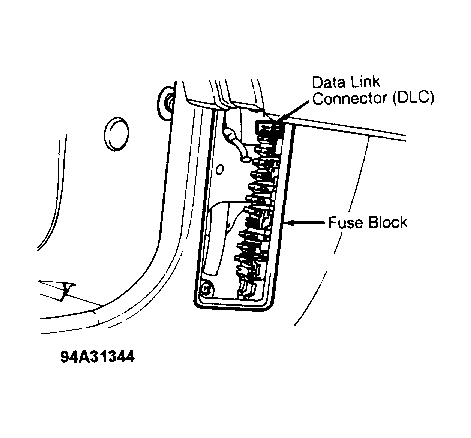

Fuse Block On left kick panel. See Figure .
Fusible Links
Main Near positive battery terminal.
Sub On relay block, on left front corner of engine compartment.
Engine Compartment Relay Block On left front corner of engine compartment.
Passenger Compartment Relay Block Under left side of dash. See Figure .
