Idle Position Switch

NOTE: Idle position switch is preset by manufacturer. Adjustment is usually not necessary. If other procedures require adjustment of idle position switch or if switch setting has been changed, adjust switch as follows.

Idle position switch is incorporated into IAC motor and is automatically adjusted when TPS is adjusted. See TPS ADJUSTMENT .

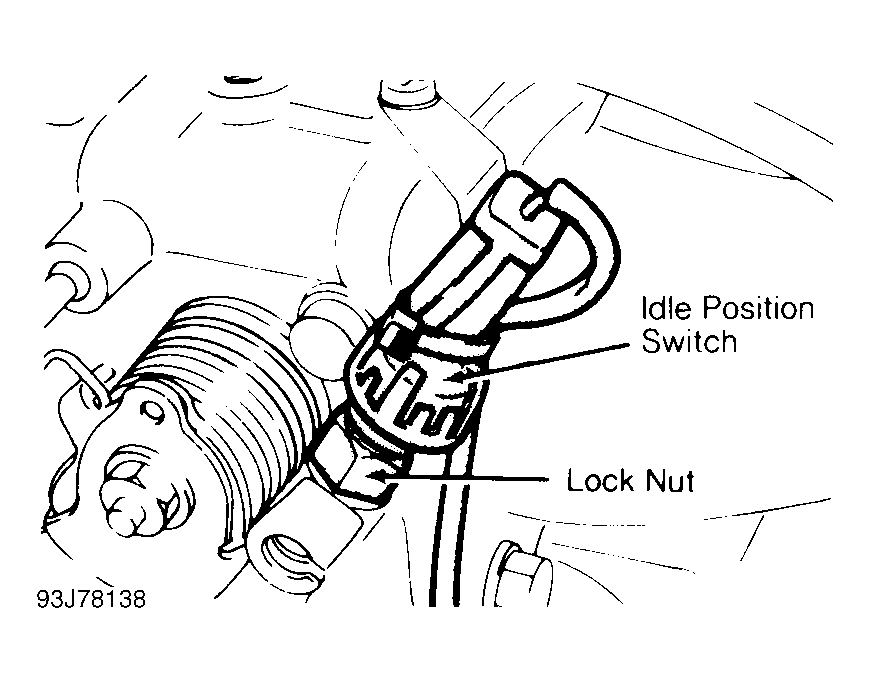

Fig 1: Adjusting Idle Position Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
