Ignition System: Distributor

NOTE: All models (except Precis) with distributor type ignition systems have non-serviceable distributors. See Fig 1 for exploded view of Precis distributor.

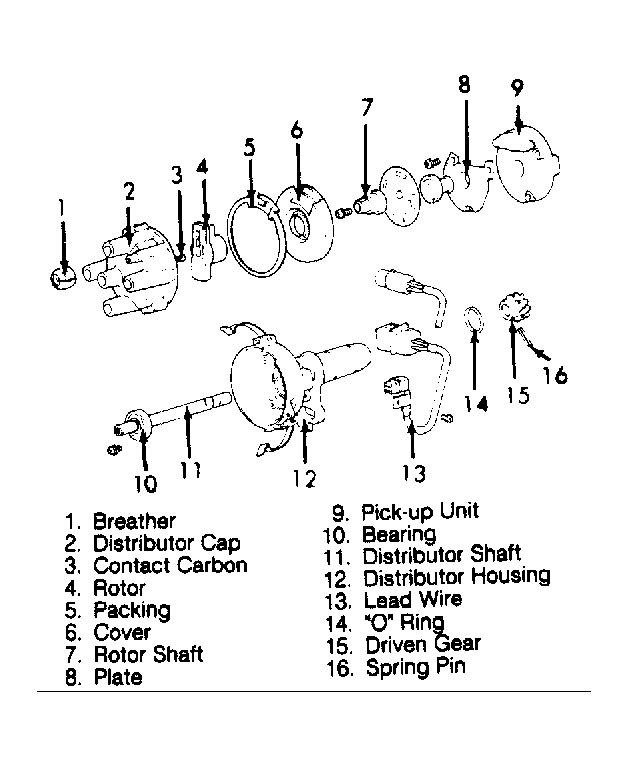

Fig 1: Exploded View Of Distributor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
