Service Point Locations

Fig 1: Service Point Locations (2.0L Non-Turbo)

Courtesy of MITSUBISHI MOTORS.

Fig 2: Service Point Locations (2.0L Turbo)

Courtesy of MITSUBISHI MOTORS.

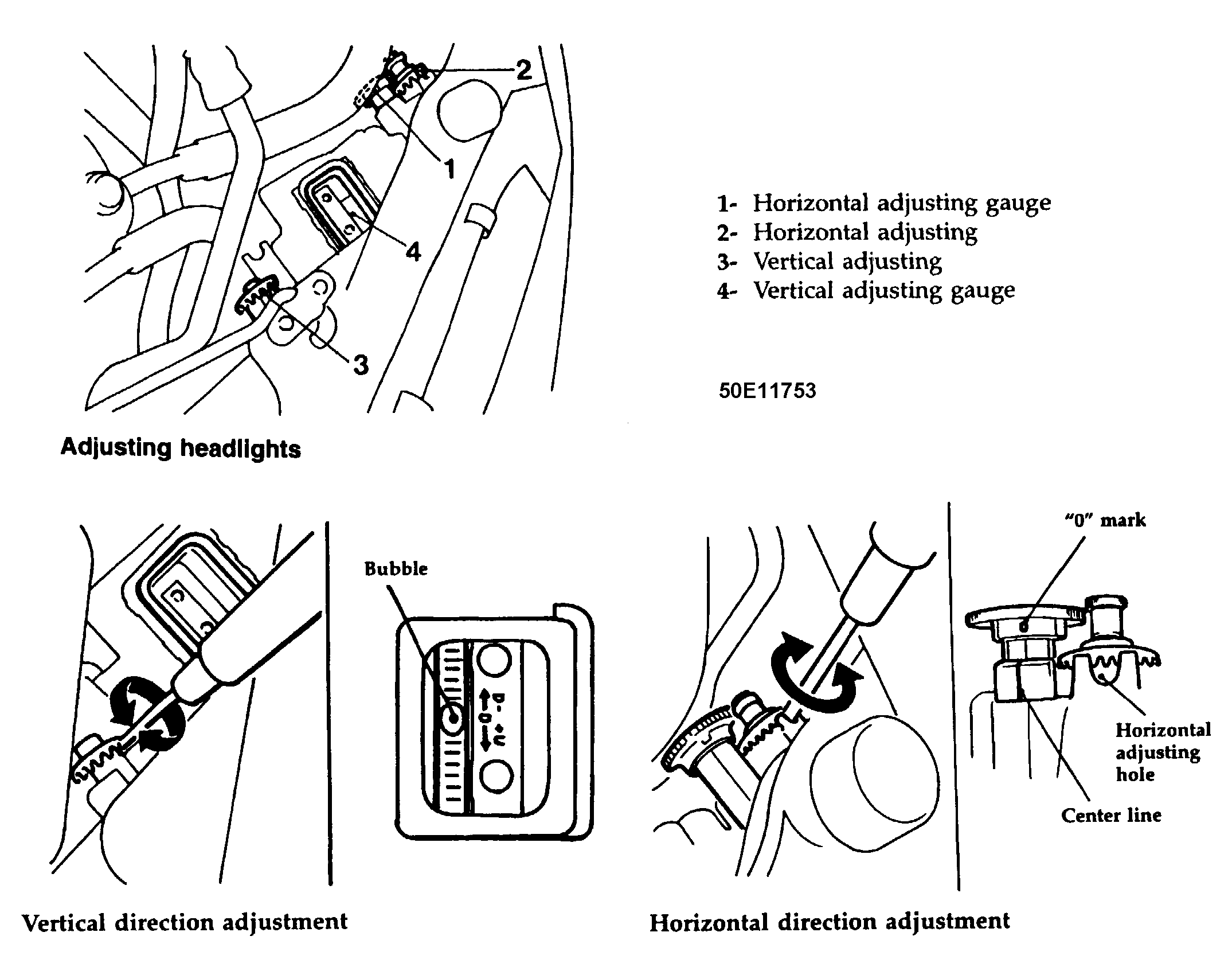

Fig 3: Aligning Headlights

Courtesy of MITSUBISHI MOTORS.

Fig 4: Camshaft Timing Belt Alignment Marks (2.0L Non-Turbo)

Courtesy of MITSUBISHI MOTORS.

NOTE: For more information regarding camshaft timing belt service refer to the 1.6L 4-CYL - VIN [6] & 1.8L 4-CYL - VIN [8] article in the ENGINE MECHANICAL section.

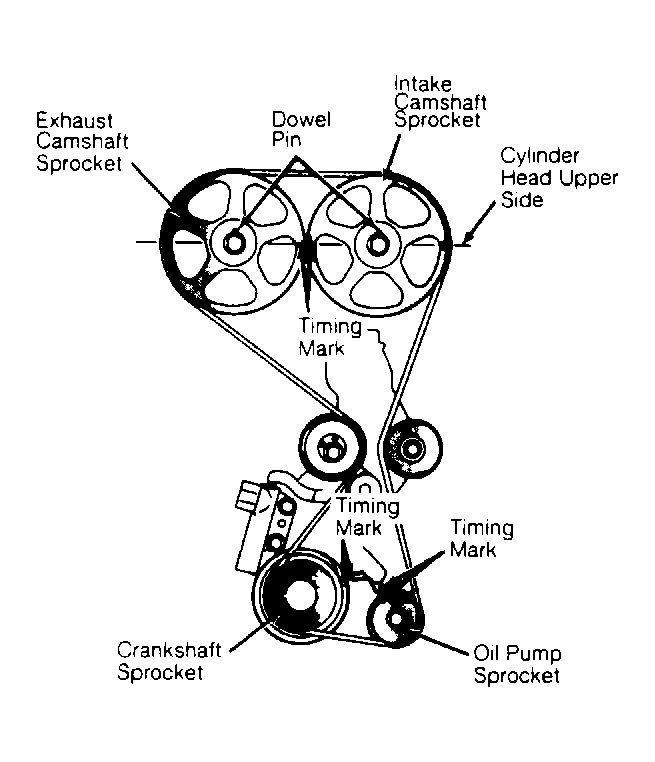

Fig 5: Camshaft Timing Belt Alignment Marks (2.0L Turbo)

Courtesy of MITSUBISHI MOTORS.

NOTE: For more information regarding camshaft timing belt service refer to the 2.0L 4-CYL article in the ENGINE MECHANICAL section.

Fig 6: Lift Point Locations

Courtesy of MITSUBISHI MOTORS.

NOTE: For more information regarding jacking or hoisting the vehicle, refer to the JACKING & HOISTING article.
