Power Circuits

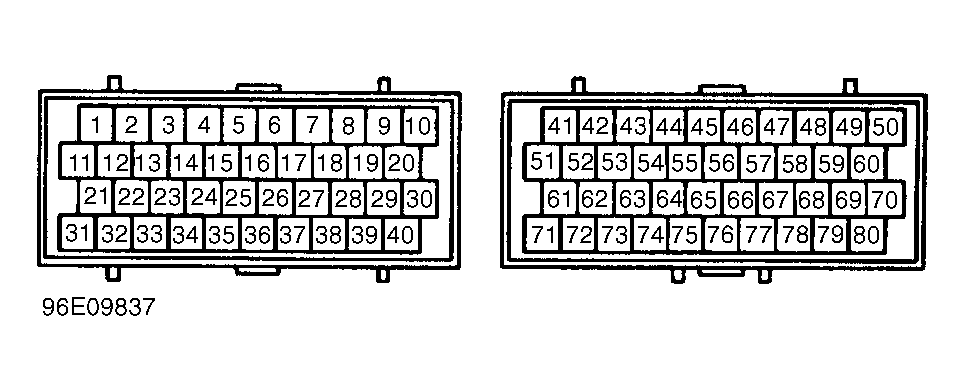

Turn ignition on. Check for battery voltage on both PCM power terminals. See Fig 1
. If battery voltage is not present, check operation of MFI relay. See RELAYS
under MOTORS, RELAYS & SOLENOIDS.
POWERTRAIN CONTROL MODULE (PCM) LOCATION
| Application |
Location |
| Eclipse |
Behind Center Console |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
