Engine Controls - Sensor Operating Range Charts: Introduction: Notes
Sensor operating range information can help determine if a sensor is out of calibration. An out-of-calibration sensor may not set a diagnostic trouble code, but it may cause driveability problems. For sensors not listed in this article, see appropriate TESTS W/CODES
article.
NOTE:

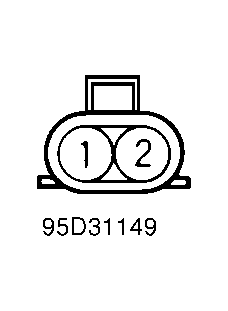

Unless stated otherwise in test procedure, perform all voltage tests using a Digital Volt-Ohmmeter (DVOM) with a minimum 10-megohm input impedance. For connector terminal identification, see TERMINAL IDENTIFICATION in appropriate TESTS W/CODES
article.
ENGINE COOLANT TEMPERATURE (ECT) SENSOR RESISTANCE
| Application & Temperature °F (°C) |
Ohms |
| Diamante, & Eclipse Turbo & 2.4L |
| 32 (0) |
5100-6500 |
| 68 (20) |
2100-2700 |
| 104 (40) |
900-1300 |
| 176 (80) |
260-360 |
| Eclipse 2.0L Non-Turbo |
| 77 (25) |
9000-11,000 |
| 212 (100) |
600-800 |
| Galant, Mirage & Montero Sport |
| 68 (20) |
2100-2700 |
| 176 (80) |
260-360 |
| Montero & 3000GT |
| 32 (0) |
5800 |
| 68 (20) |
2400 |
| 104 (40) |
1100 |
| 176 (80) |
300 |
INTAKE AIR TEMPERATURE (IAT) SENSOR RESISTANCE
| Application & Temperature °F (°C) |
Ohms |
| Diamante, & Eclipse Turbo & 2.4L |
| 32 (0) |
5300-6700 |
| 68 (20) |
2300-3000 |
| 104 (40) |
1000-1500 |
| 176 (80) |
300-420 |
| Eclipse 2.0L Non-Turbo |
| 77 (25) |
9000-11,000 |
| 212 (100) |
600-800 |
| Galant, Mirage 1.8L & Montero Sport |
| 68 (20) |
2300-3000 |
| 176 (80) |
300-420 |
| Mirage 1.5L |
| 68 (20) |
2300-3000 |
| 176 (80) |
300-420 |
| Montero & 3000GT |
| 32 (0) |
6000 |
| 68 (20) |
2700 |
| 176 (80) |
400 |
