Ignition Coil Resistance

Using a DVOM, measure primary coil resistance between specified coil terminals. See Fig 1-Fig 4 . On Galant, measure between terminals No. 11 and 12. On Mirage measure between terminals No. 1 and 2. On all other vehicles, measure between positive and negative terminals. Measure secondary coil resistance between coil positive terminal and ignition coil tower. Primary and secondary coil resistance should be within specification. See IGNITION COIL RESISTANCE table.

IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)

Application	Primary	Secondary
1.5L (VIN A)	.50-.70	15,000-22,000
2.4L (VIN G)
Galant	.90-1.20	20,000-29,000
Montero Sport	.67-.81	11,300-15,300
3.0L (VIN H)	.72-.88	12,290-13,920
3.5L (VIN P)	.50-.70	9000-13,000

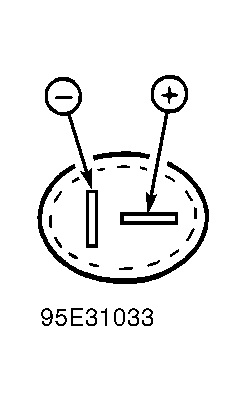

Fig 1: Ignition Coil Connectors Terminals (Except DIS - Diamante)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

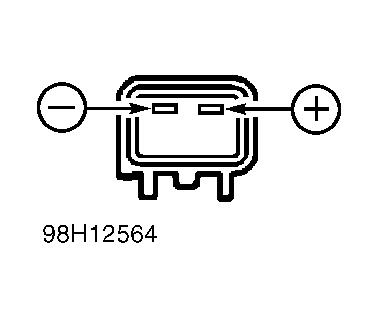

Fig 2: Ignition Coil Connectors Terminals (Except DIS - Galant)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 3: Ignition Coil Connectors Terminals (Except DIS - Mirage 1.5L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 4: Ignition Coil Connectors Terminals (Except DIS - Montero Sport 2.4L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

CAUTION: Power transistor test must be performed in less than 10 seconds to prevent coil from burning or power transistor from breaking.
