Power Circuits

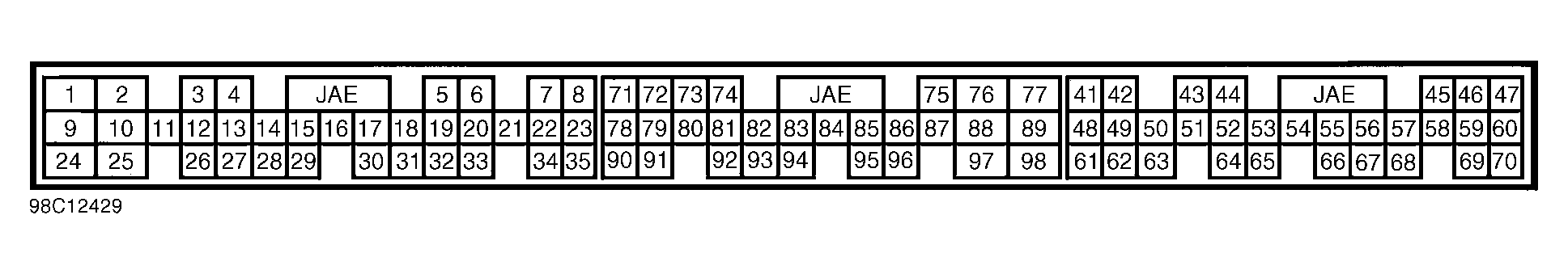

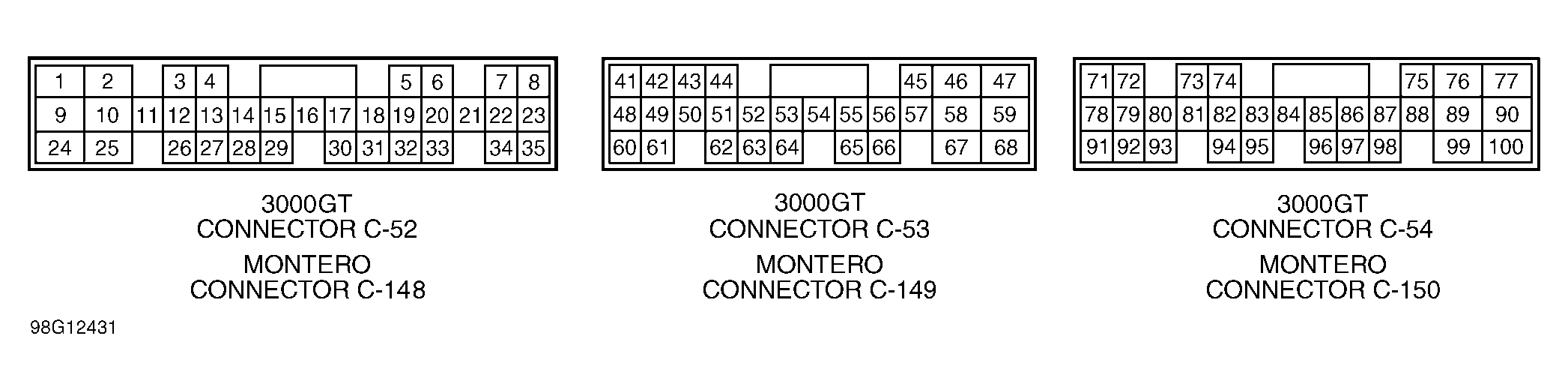

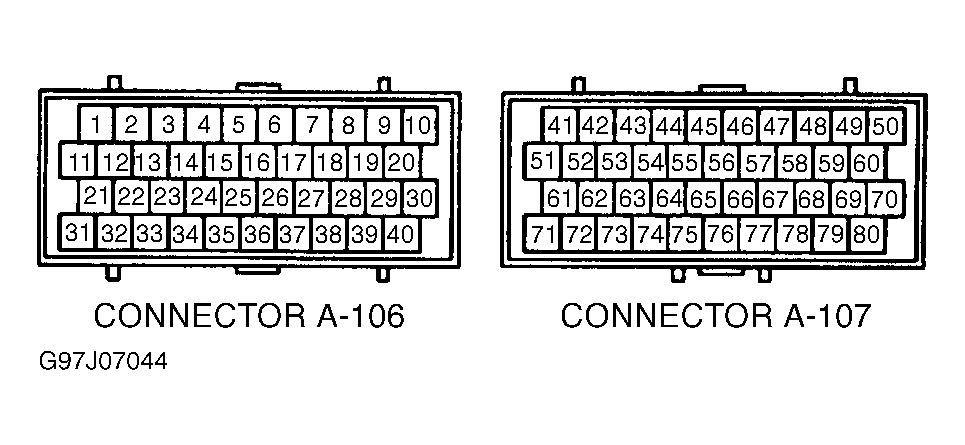

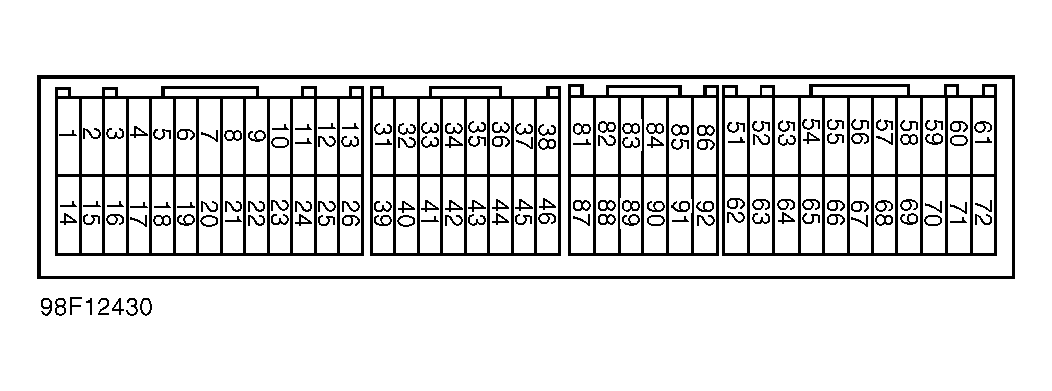

Turn ignition on. Check for battery voltage on both PCM power terminals. See Fig 1 -Fig 5 . If battery voltage is not present, check operation of MFI relay. See RELAYS under MOTORS, RELAYS & SOLENOIDS.
POWERTRAIN CONTROL MODULE (PCM) LOCATION
| Application | Location |
|---|---|
| Eclipse 2.0L Non-Turbo | In Front Of Left Front Strut Tower |
| Mirage & Montero Sport | Behind Right Side Of Instrument Panel (Glove Box) |
| Montero | Right Front Kick Panel |
| All Other Models | Behind Center Console |
