Other Monitor
This monitor applies to DTCs not covered by the rest of the monitors. Following conditions must be met during the test:
- Engine coolant temperature must be 176°F (80°C) or more.
- Atmospheric temperature is 41°F (5°C) or more.
- If automatic transmission, selector lever is in "D" range.
- If applicable, overdrive switch is in ON position.
- If applicable, pattern select switch is in OFF position.

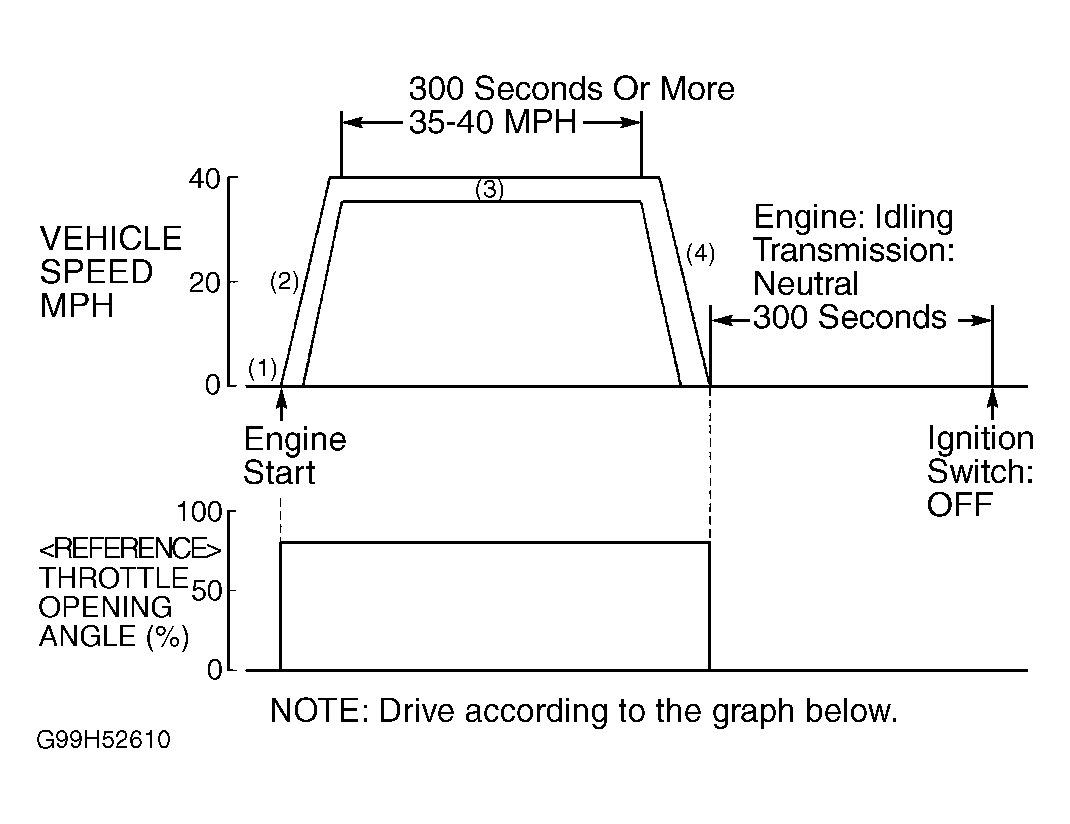

Monitor takes about 10 minutes to complete. To run monitor, use illustration. See Fig 1 . Perform steps as follows:
- Remove all test equipment from vehicle and install all components and connectors that were removed or disconnected during testing.
- Start engine.
- Accelerate to 35-40 MPH.
- Drive for 5 minutes or more at 35-40 MPH (M/T: 4th gear).
- Return vehicle to shop and let idle. While engine is idling, A/C switch must be in OFF position, lights and accessories must be off, steering wheel must be straight ahead and, if applicable, automatic transaxle must be in "P" range. After idling for 5 minutes, turn ignition off.
- Confirm DTC is not output. If DTC is output, go to appropriate DTC test in appropriate SELF-DIAGNOSTICS article.
