All Other Models

Remove floor console assembly. Loosen nut and remove shift lock cable connector from selector lever assembly. See Fig 2. Remove cotter pin and shift lock cable connector from brake pedal assembly. Remove shift lock cable from vehicle. To install, reverse removal procedure. Adjust shift lock cable. See SHIFT LOCK CABLE  under ADJUSTMENTS.

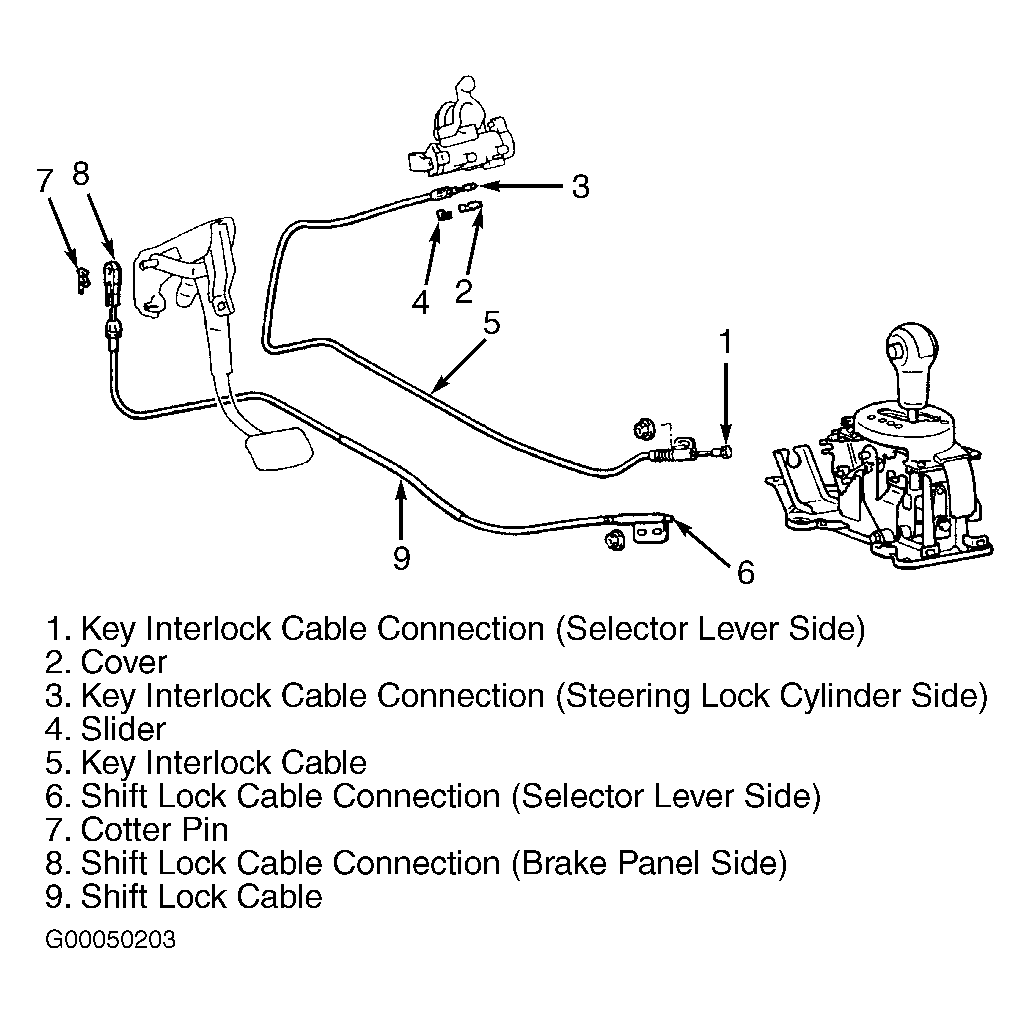

Fig 1: Identifying Key Interlock Cable & Shift Lock Cable Components (Diamante, Eclipse, Galant & Mirage)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Key Interlock Cable & Shift Lock Cable Components (Montero Shown; Montero Sport Is Similar)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
