Engine Performance: Application: Introduction: Introduction

2000 MODEL COVERAGE

MODEL

ENGINE ⁽¹⁾

ENGINE ID ⁽²⁾

FUEL SYSTEM

IGNITION SYSTEM ⁽³⁾

Diamante

3.5L V6 (6G74) SOHC

SFI ⁽⁴⁾

Hall Effect

Eclipse

2.4L 4-Cyl. (4G64) SOHC

SFI ⁽⁴⁾

DIS ⁽⁵⁾

3.0L V6 (6G72) SOHC

SFI ⁽⁴⁾

Hall Effect

Galant

2.4L 4-Cyl. (4G64) SOHC

SFI ⁽⁴⁾

DIS ⁽⁵⁾

3.0L V6 (6G72) SOHC

SFI ⁽⁴⁾

Hall Effect

Mirage

1.5L 4-Cyl. (4G15) SOHC

SFI ⁽⁴⁾

Hall Effect

1.8L 4-Cyl. (4G93) SOHC

SFI ⁽⁴⁾

DIS ⁽⁵⁾

Montero

3.5L V6 (6G74) SOHC

SFI ⁽⁴⁾

DIS ⁽⁵⁾

Montero Sport

3.0L V6 (6G72) SOHC

SFI ⁽⁴⁾

DIS ⁽⁵⁾

3.5L V6 (6G74) SOHC

SFI ⁽⁴⁾

DIS ⁽⁵⁾

⁽¹⁾	See Figure -Figure .

⁽²⁾	Engine ID is eighth character of VIN.

⁽³⁾	Ignition timing is computer-controlled.

⁽⁴⁾	Fuel system is a Sequential Fuel Injection (SFI) system.

⁽⁵⁾	This system may also be referred to as distributorless ignition.

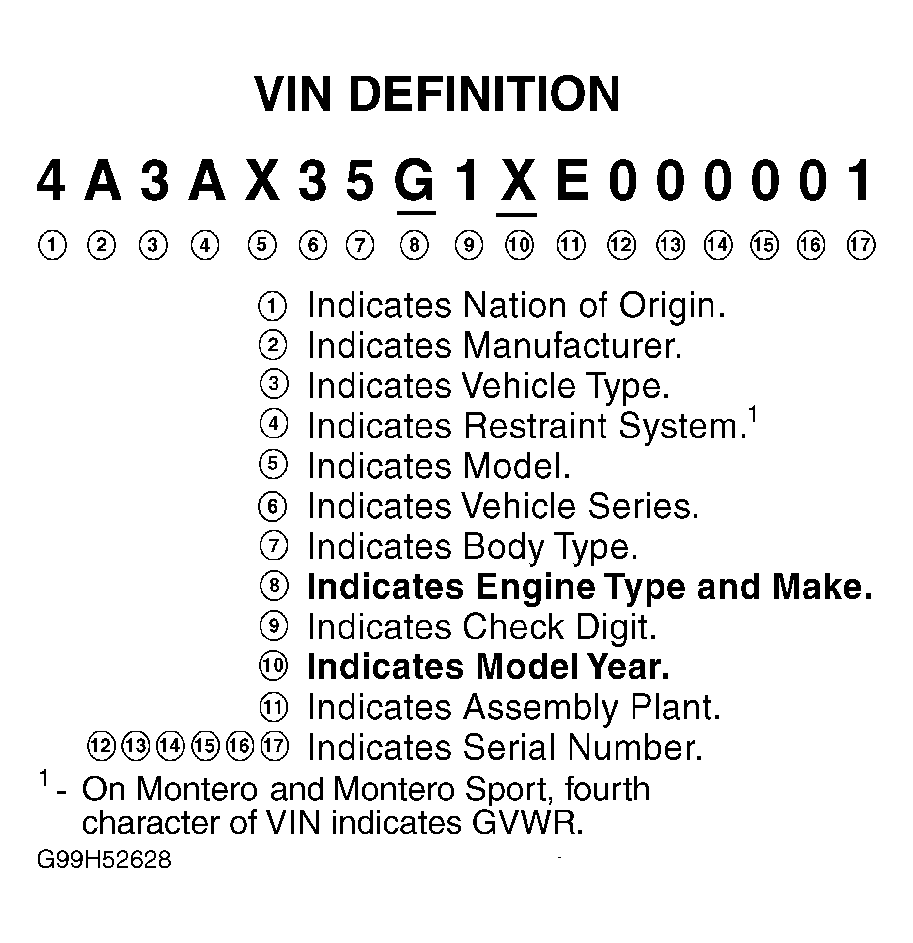

Fig 1: VIN Definition
