All Other Models

Remove front console assembly. Move selector lever to "P" position and turn ignition switch to OFF position. Loosen nut securing key interlock cable. Gently push lock cam until pin stops in direction of arrow. See Fig 1. Tighten cable nut to specification. See TORQUE SPECIFICATIONS . Install front console assembly.

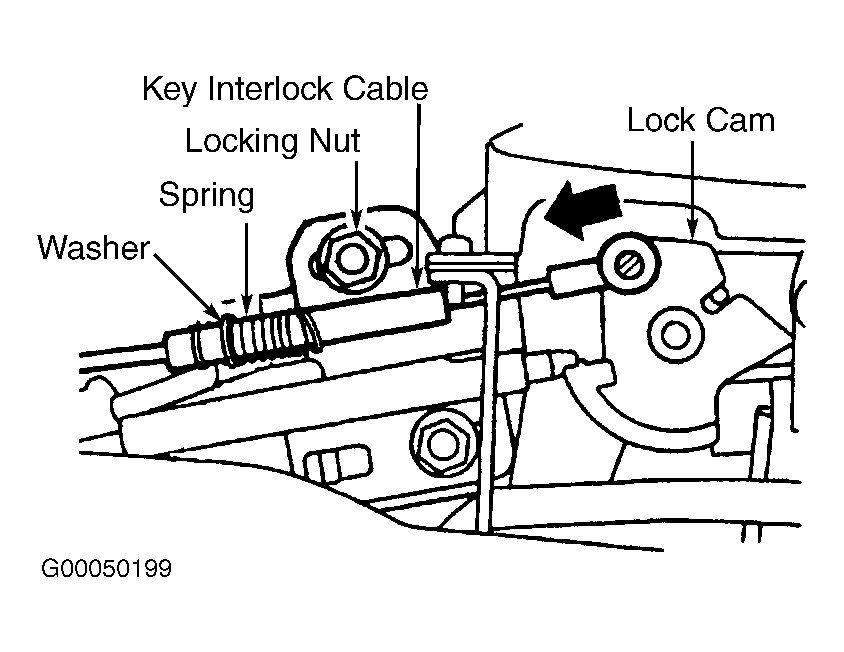

Fig 1: Adjusting Key Interlock Cable (Diamante, Eclipse, Galant & Mirage)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
