Terminal Identification

NOTE: The following terminal illustrations are shown as viewed from component side of connector.

TERMINAL IDENTIFICATION DIRECTORY

Connector	Illustration
Auto Cruise Control ECU	Fig 1
Camshaft Position (CMP) Sensor	Fig 2
Combination Meter	Fig 3
Crankshaft Position (CKP) Sensor	Fig 4
Distributor Assembly	Fig 5
EGR Solenoid	Fig 6
Engine Control Module	Fig 8 & Fig 9
Engine Coolant Temperature (ECT) Sensor	Fig 7
Fuel Injector	Fig 10
Fuel Injector Intermediate Connector B-48	Fig 11
Fuel Pump Relay	Fig 22
Fuel Tank Differential Pressure (FTDP) Sensor	Fig 12
Generator Field	Fig 13
Heated Oxygen Sensor (HO2S)	Fig 14 & Fig 15
Idle Air Control (IAC) Motor	Fig 16
Immobilizer ECU	Fig 17
Intermediate Connector B-13	Fig 18
Intermediate Connector D-16	Fig 19
Knock Sensor (KS)	Fig 20
Manifold Differential Pressure (MDP) Sensor	Fig 21
MFI Relay	Fig 22
OBD-II DLC	Fig 23
Powertrain Control Module (PCM)	Fig 24
Purge Solenoid	Fig 25
Throttle Position (TP) Sensor	Fig 26
Vehicle Speed Sensor (VSS)	Fig 27
Ventilation Solenoid	Fig 28
Volume Airflow (VAF) Sensor	Fig 29

Fig 1: Identifying Auto Cruise Control ECU Connector Terminals

G00023300

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Camshaft Position (CMP) Sensor Connector Terminals (2.4L)

G97D07041

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Identifying Combination Meter Connector C-41 Terminals

G00005799

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Identifying Crankshaft Position (CKP) Sensor Connector Terminals

G95H31135

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Identifying Distributor Assembly Connector Terminals (3.0L)

G99J52612

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Identifying EGR Solenoid Connector Terminals

G98A12419

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Identifying Engine Coolant Temperature (ECT) Sensor Connector Terminals

G00005803

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

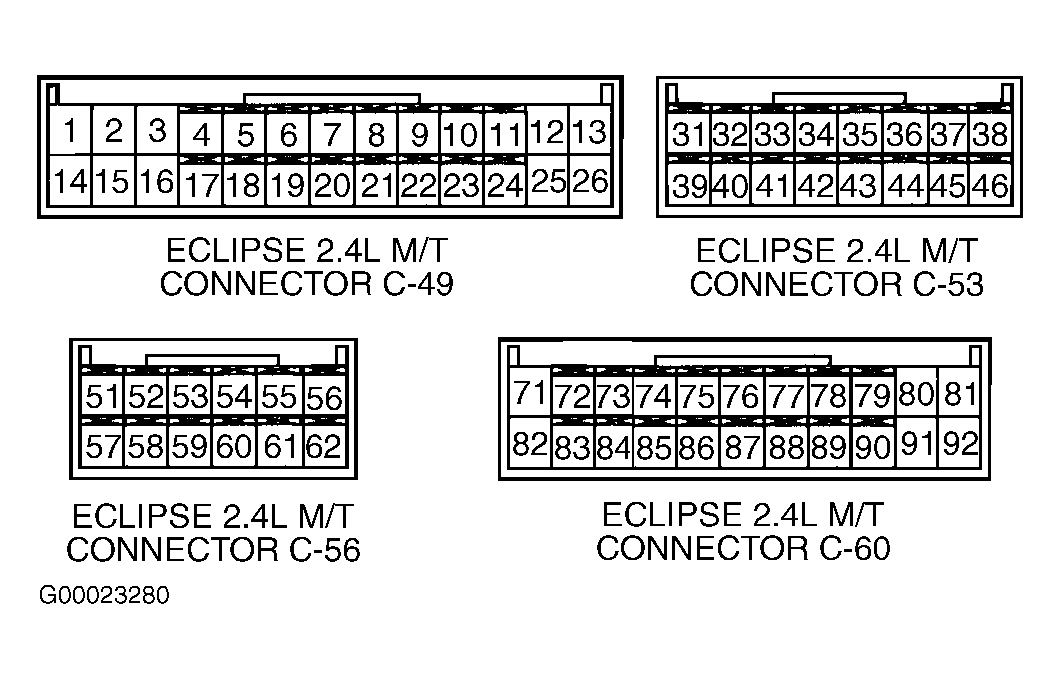

Fig 8: Identifying Engine Control Module (ECM) Connector Terminals (2.4L M/T)

G00023280

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

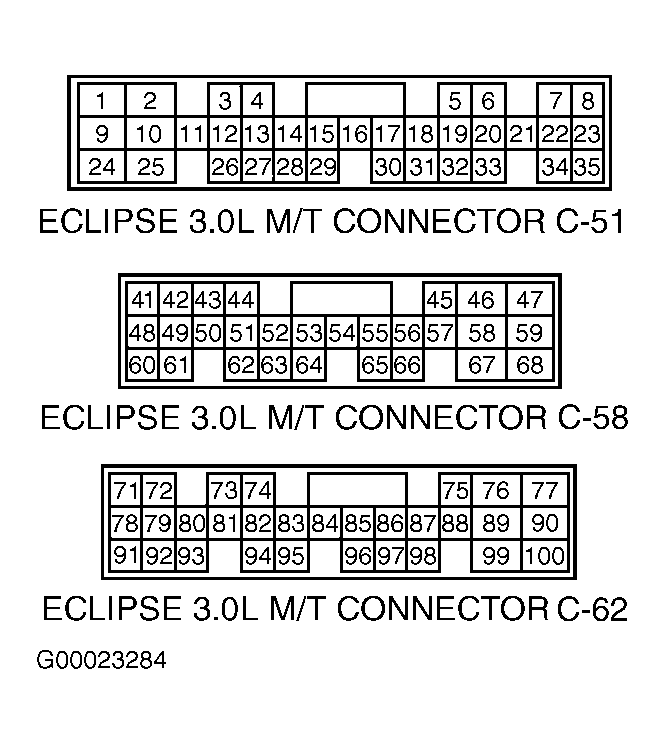

Fig 9: Identifying Engine Control Module (ECM) Connector Terminals (3.0L M/T)

G00023284

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 10: Identifying Fuel Injector Connector Terminals

G95B31147

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 11: Identifying Fuel Injector Intermediate Connector B-48 Terminals (3.0L - Right Bank)

G95G31159

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 12: Identifying Fuel Tank Differential Pressure (FTDP) Sensor Connector Terminals

G93J80266

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 13: Identifying Generator Field Connector Terminals

G96B09826

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 14: Identifying Heated Oxygen Sensor (HO2S) Connector Terminals (Except 2.4L - Rear)

G95G31159

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 15: Identifying Heated Oxygen Sensor (HO2S) Connector Terminals (2.4L - Rear)

G00005846

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 16: Identifying Idle Air Control (IAC) Motor Connector Terminals

G95I31151

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 17: Identifying Immobilizer ECU Connector Terminals

G94C46609

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

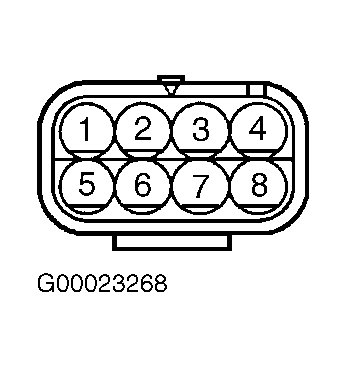

Fig 18: Identifying Intermediate Connector B-13 Terminals

G00023268

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 19: Identifying Intermediate Connector D-16 Terminals

G97H07043

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 20: Identifying Knock Sensor (KS) Connector Terminals

G93I80265

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 21: Identifying Manifold Differential Pressure (MDP) Sensor Connector Terminals

G93J80266

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 22: Identifying MFI Relay & Fuel Pump Relay Connector Terminals

G00005858

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 23: Identifying OBD-II DLC Terminals

G96G06364

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 24: Identifying Powertrain Control Module (PCM) Connector Terminals (2.4L A/T & 3.0L A/T)

G00005862

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 25: Identifying Purge Solenoid Connector Terminals

G00005870

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 26: Identifying Throttle Position (TP) Sensor Connector Terminals

G95A31534

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 27: Identifying Vehicle Speed Sensor (VSS) Connector Terminals

G93J80266

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 28: Identifying Ventilation Solenoid Connector Terminals

G00005870

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 29: Identifying Volume Airflow (VAF) Sensor Connector Terminals

G98A12435

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
