Relieving Fuel Pressure

On Eclipse, Eclipse Spyder, Galant and Montero Sport, remove fuel pump relay. On all other vehicles, remove fuel pump relay or disconnect fuel pump wiring harness connector. For fuel pump relay location, see FUEL PUMP RELAY LOCATION table. On Montero, fold down second seat, remove upper and lower service covers and disconnect fuel module connector. On Diamante and Mirage, remove rear seat cushion and lift carpet, or remove floor plate, to access fuel pump wiring harness connector.
Start engine. Let engine run until it stops. Turn ignition off. Disconnect negative battery cable. Install fuel pump relay, or reconnect fuel pump harness connector.

FUEL PUMP RELAY LOCATION

Application

Location

Diamante

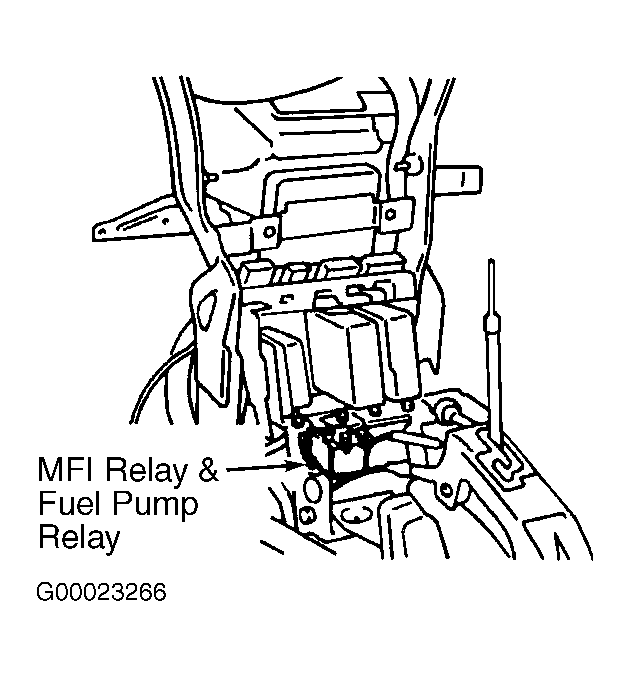

⁽¹⁾ Under Center Console, Forward

Eclipse

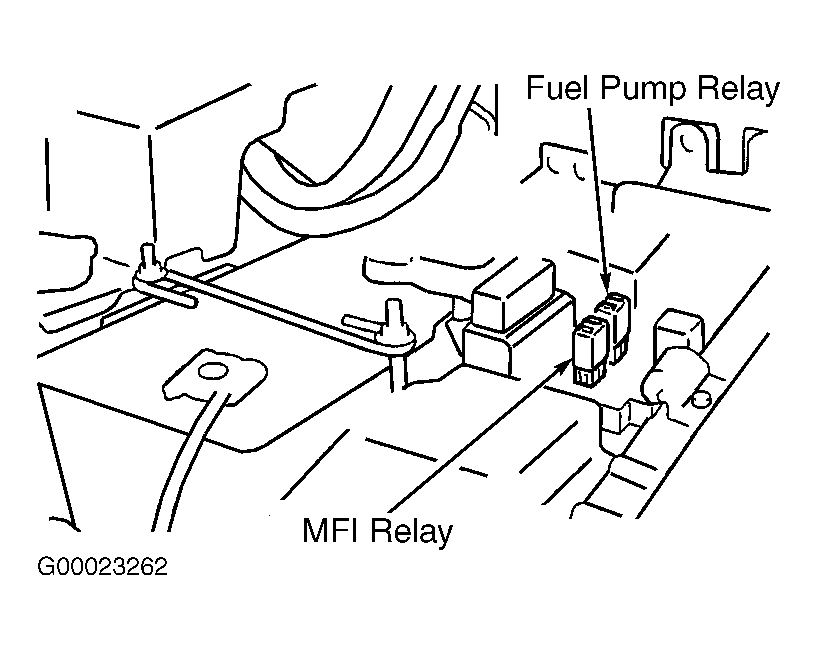

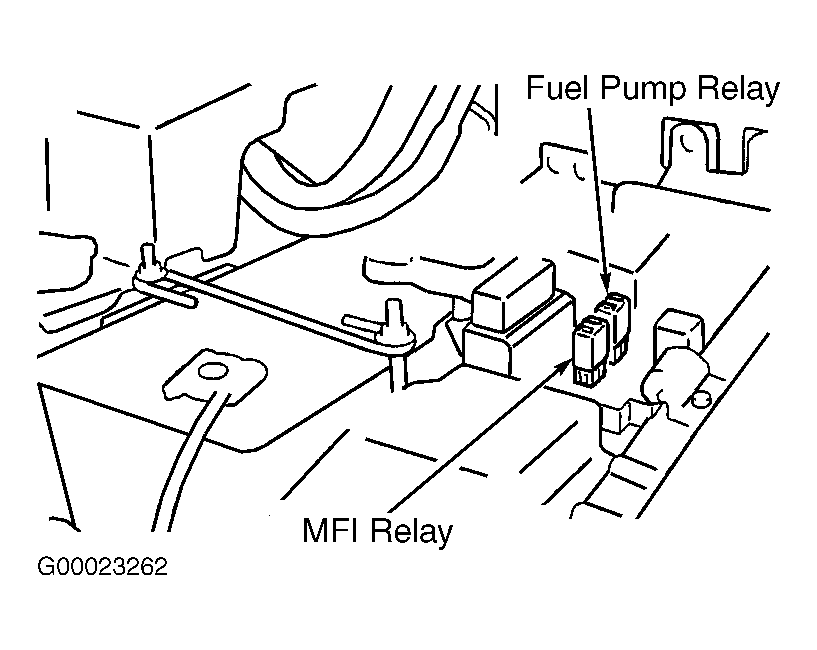

⁽²⁾ Left Side Of Engine Compartment

Galant

⁽²⁾ Left Side Of Engine Compartment

Mirage (Fuel Pump Relay 1)

⁽³⁾⁽⁴⁾ Behind Center Of Instrument Panel

Mirage (Fuel Pump Relay 2)

A/T

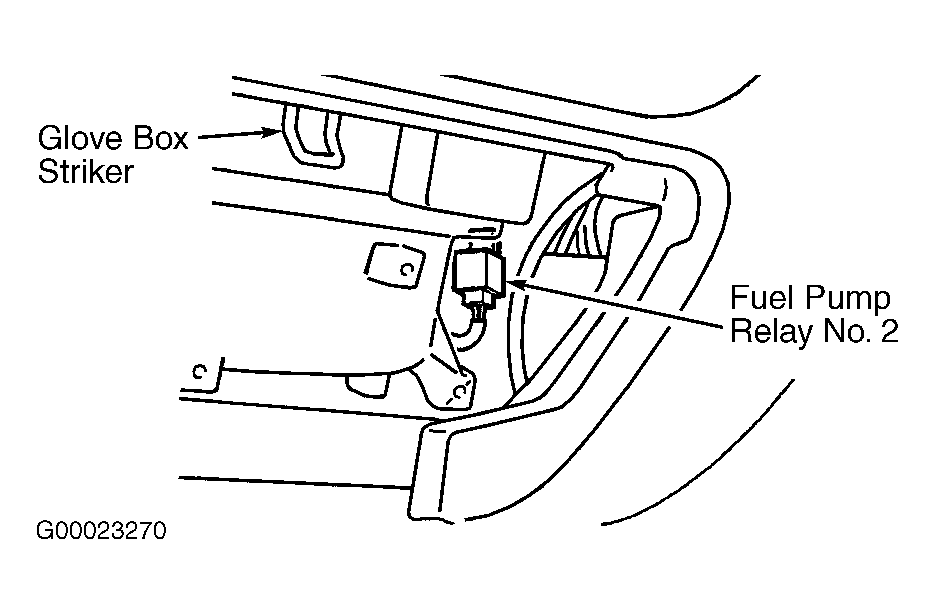

⁽⁵⁾ Behind Far Right Side Of Instrument Panel

M/T

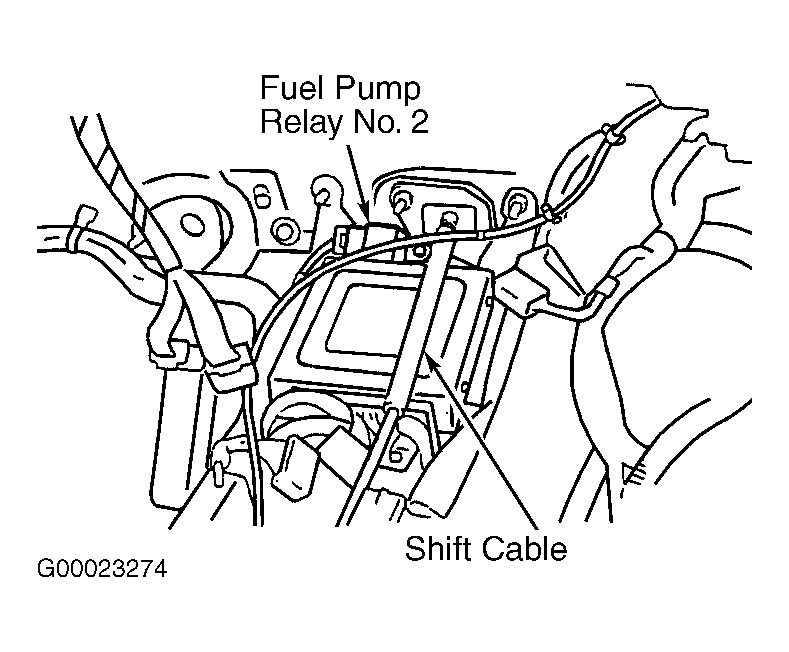

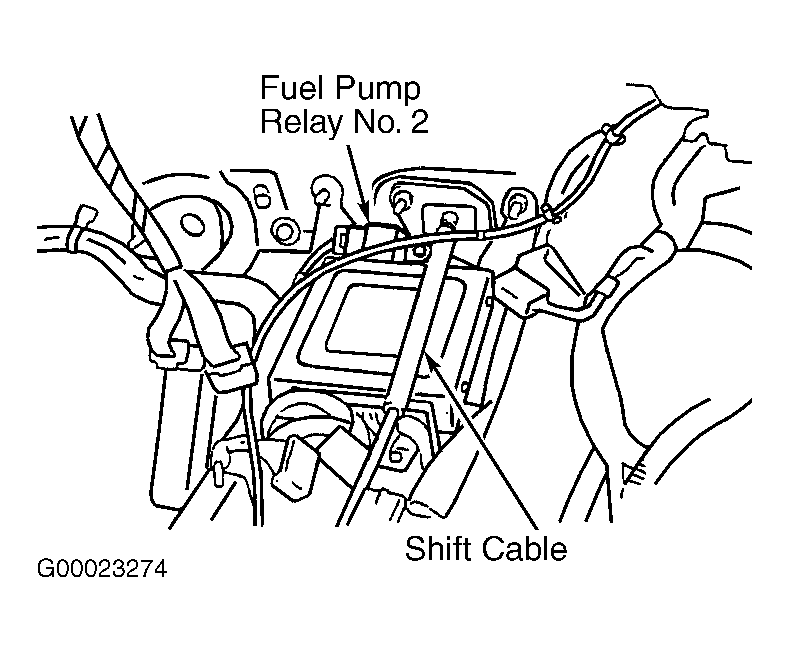

⁽⁶⁾ Under Center Console, Forward

Montero

⁽⁷⁾ Left Side Of Engine Compartment

Montero Sport

⁽⁸⁾ Right Side Kick Panel

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 .

⁽³⁾	See Fig 3 .

⁽⁴⁾	On Mirage models, either of the 2 relays may be removed.

⁽⁵⁾	See Fig 4 .

⁽⁶⁾	See Fig 5 .

⁽⁷⁾	See Fig 6 .

⁽⁸⁾	See Fig 7 .

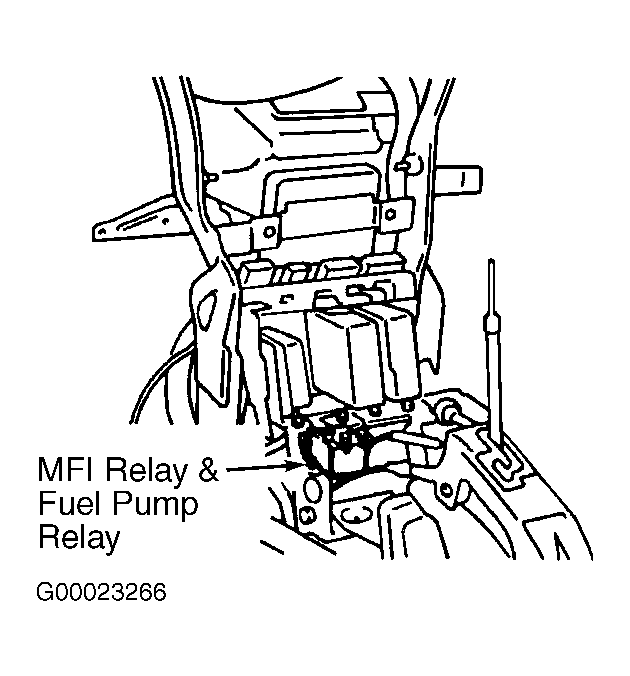

Fig 1: Locating Fuel Pump Relay (Diamante)
