Power Window Switch Continuity Check
>>
Main Switch
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Main Switch

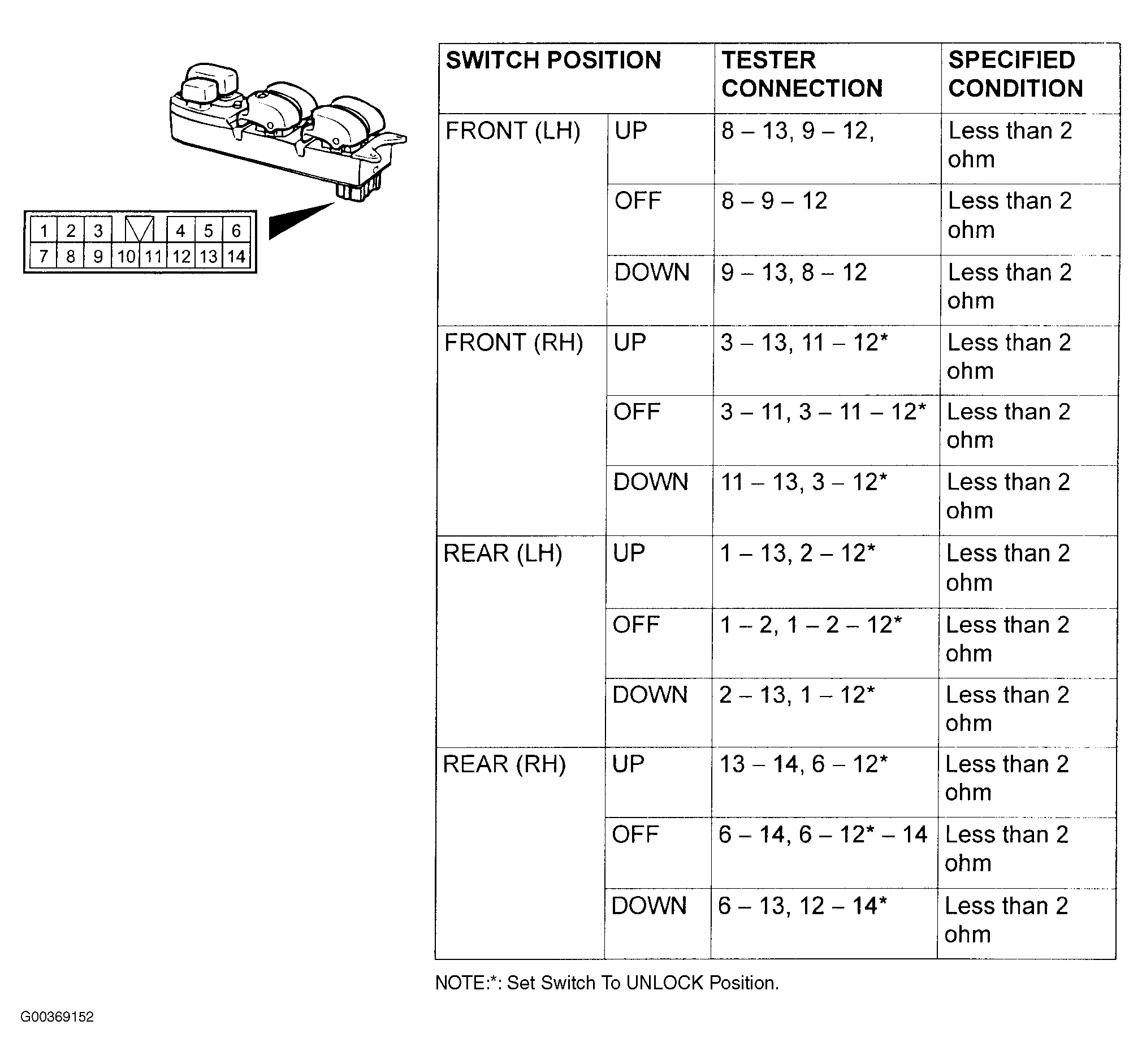

Fig 1: Checking Power Window Main Switch Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
