Power Window Switch Continuity Check
>>
Sub Switch
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Sub Switch

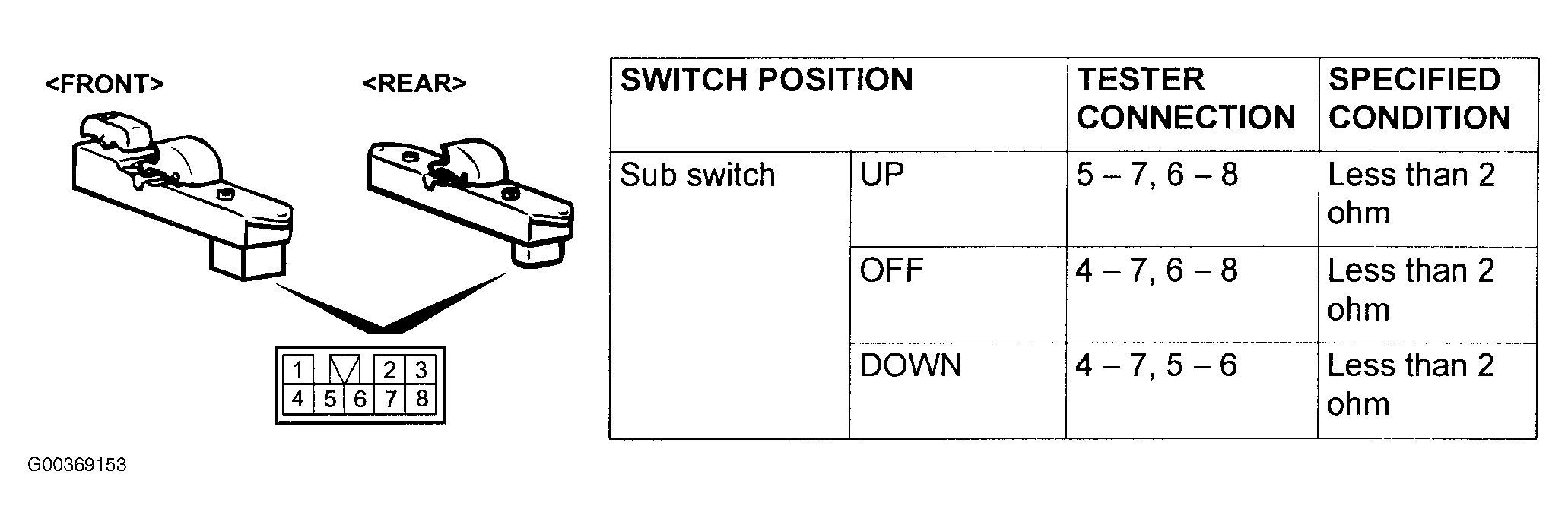

Fig 1: Checking Power Window Sub Switch Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
