Bench Testing: Stator

  1. Check continuity between coil lead. See Fig 1 . If there is no continuity, replace stator.

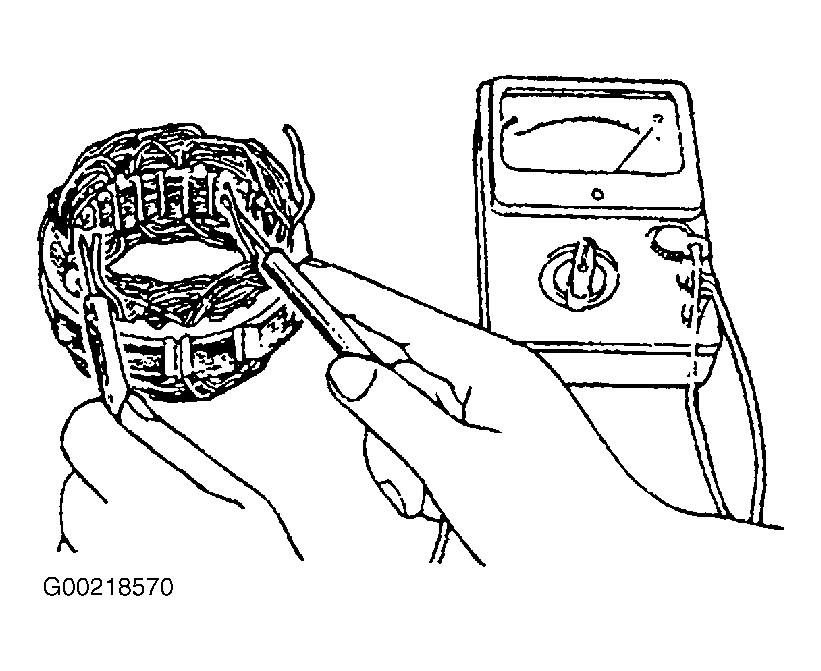

    Fig 1: Checking Continuity Between Coil Lead
    G00218570Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Check continuity between coil and core. See Fig 2 . If there is continuity, replace stator.

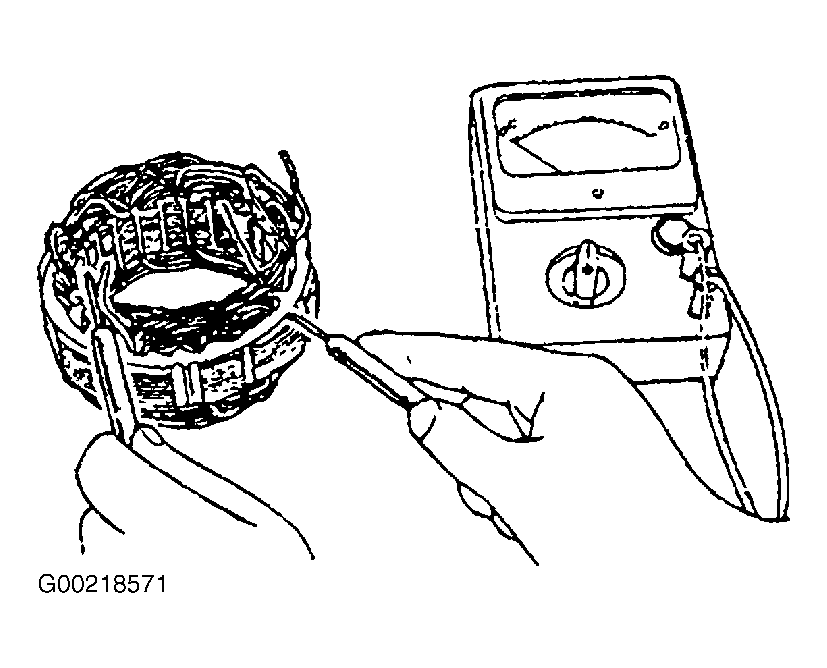

    Fig 2: Checking Continuity Between Coil & Core
    G00218571Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
