Generators & Regulators: Operation: Notes
Rotation of the excited field coil generates AC voltage in the stator.

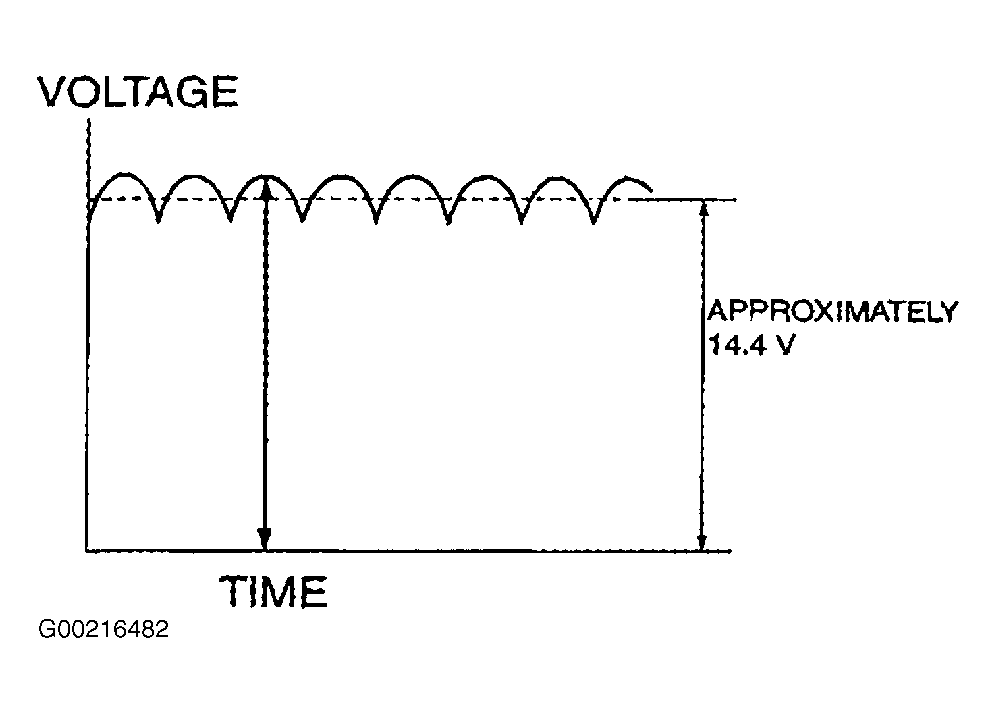

This alternating current is rectified through diodes to DC voltage having a waveform. See Fig 1 .
The average output voltage fluctuates slightly with the generator load condition.
When the ignition switch is turned ON, current flows in the field coil and initial excitation of the field coil occurs.
When the stator coil begins to generate power after engine is started, field coil is excited by the output current of the stator coil.
The generator output voltage rises as the field current increases and it falls as the field current is cut off. When the battery positive voltage (generator S-terminal voltage) reaches a regulated voltage of approximately 14.4V, field current is cut off. when battery positive voltage drops below the regulated voltage, voltage regulator regulates the output voltage to a constant level by controlling the field current.
In addition, when the field current is constant, generator output voltage rises as the engine speed increases.
