Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS ECU | On right rear of engine compartment. See Figure . |
| A/C ECU | Behind center of dash, below radio. |
| Auto-Cruise Control ECU | Behind right end of dash. See Figure . |
| Column ECU | On top of steering column. |
| Engine Control Module (M/T) | Behind glove box. See Figure . |

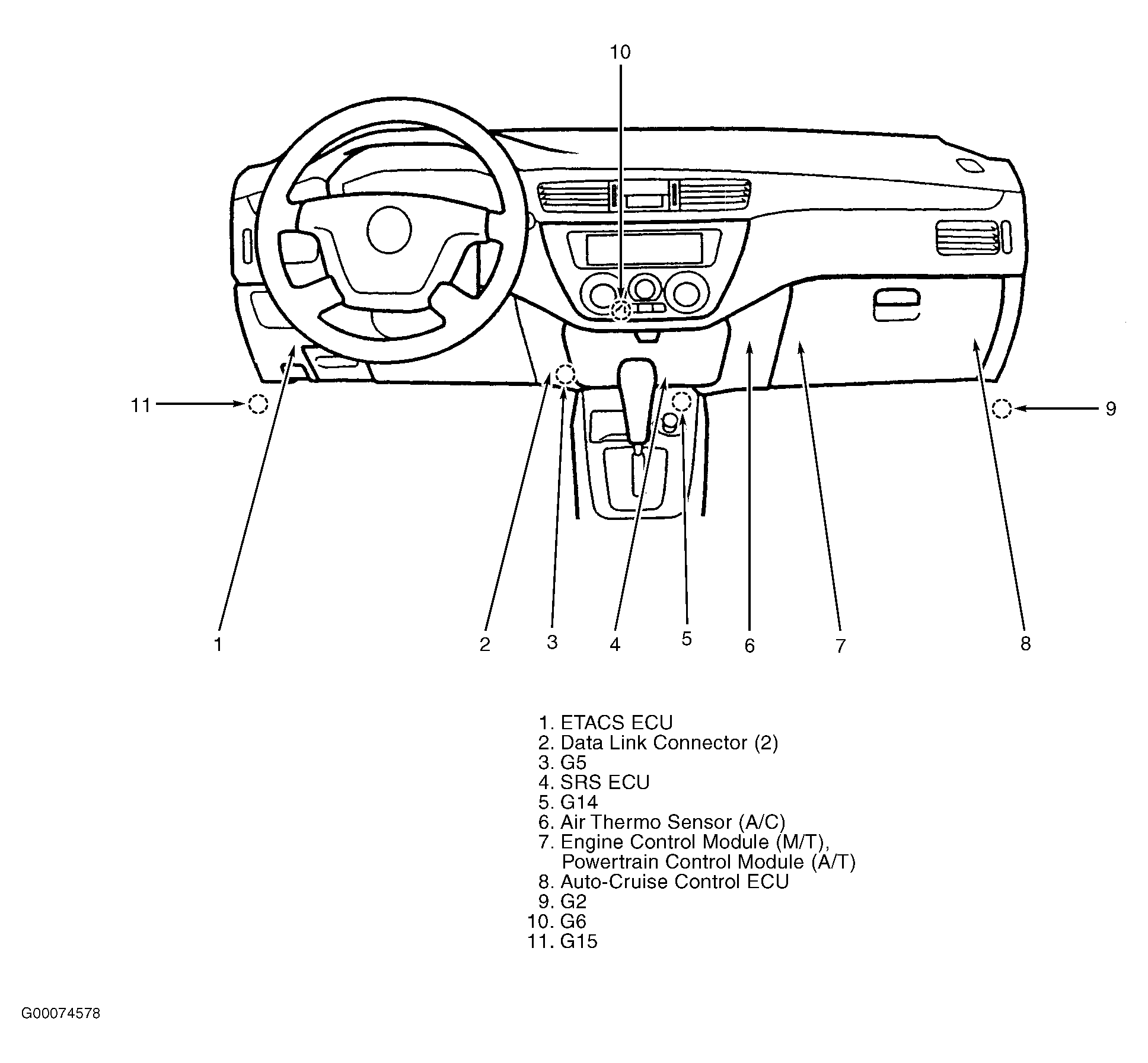

| ETACS ECU | On rear of junction block, behind left end of dash. See Figure . |
| Fan Controller | On fan shroud, at right front of engine compartment. |
| Front ECU | In engine compartment relay box. See Figure . |
| Powertrain Control Module (A/T) | Behind glove box. See Figure . |
| SRS ECU | Behind lower center of dash. See Figure . |
