Starter Relay: Eclipse

For starter relay location and testing, see Fig 1 .

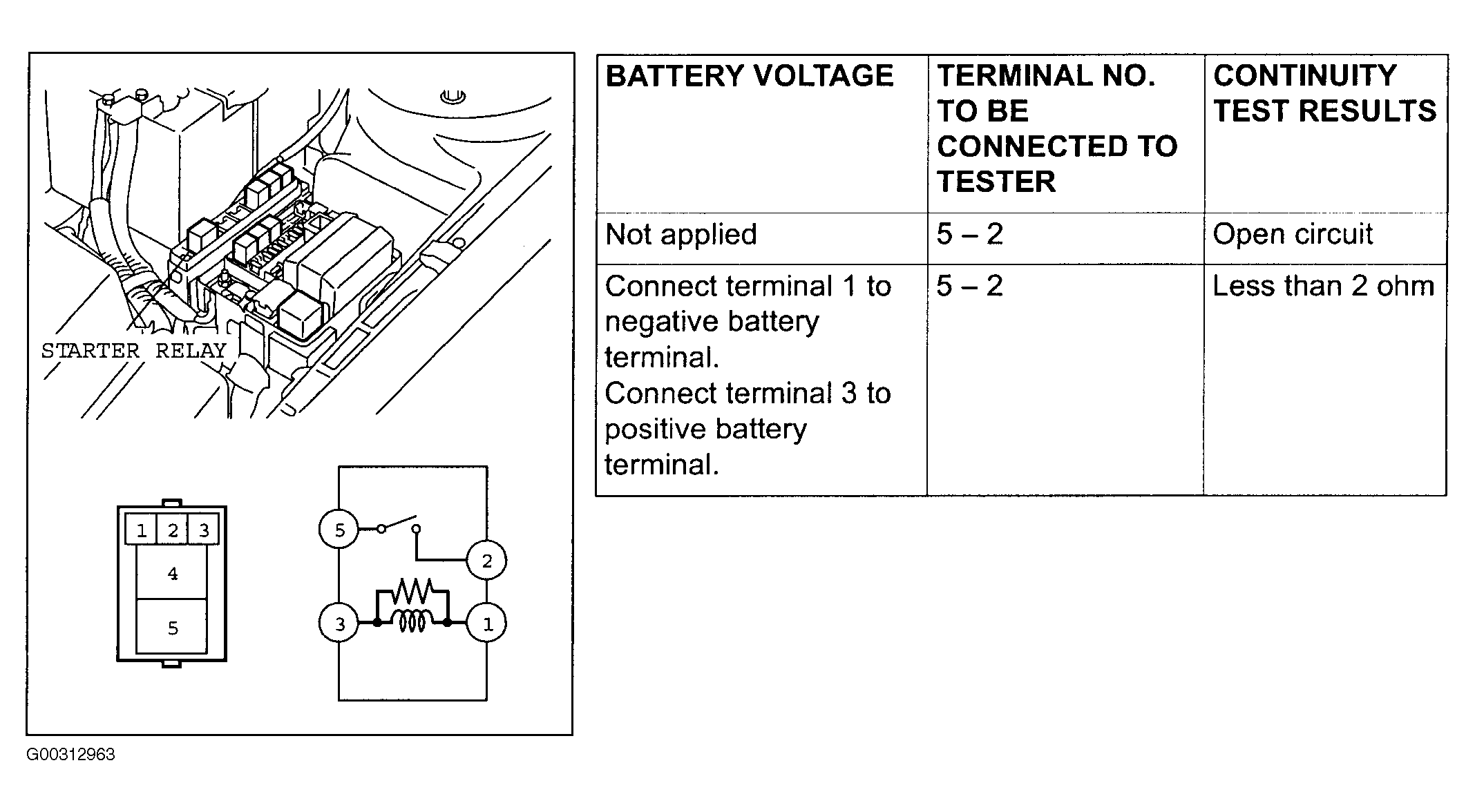

Fig 1: Locating & Testing Starter Relay (Eclipse)
G00312963Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
