Repair and Diagnosis: Electrical: Starters: Overhaul

Check commutator for out-of-round and proper amount of undercut. Replace or repair armature if not within specification. See STARTER SPECIFICATIONS  table. Ensure brushes are not worn beyond wear line (outer line closest to commutator contact surface). Check pinion gap. See PINION GAP MEASUREMENT  under BENCH TESTING. See Fig 1 , Fig 2 , Fig 3 , Fig 4 or Fig 5 .

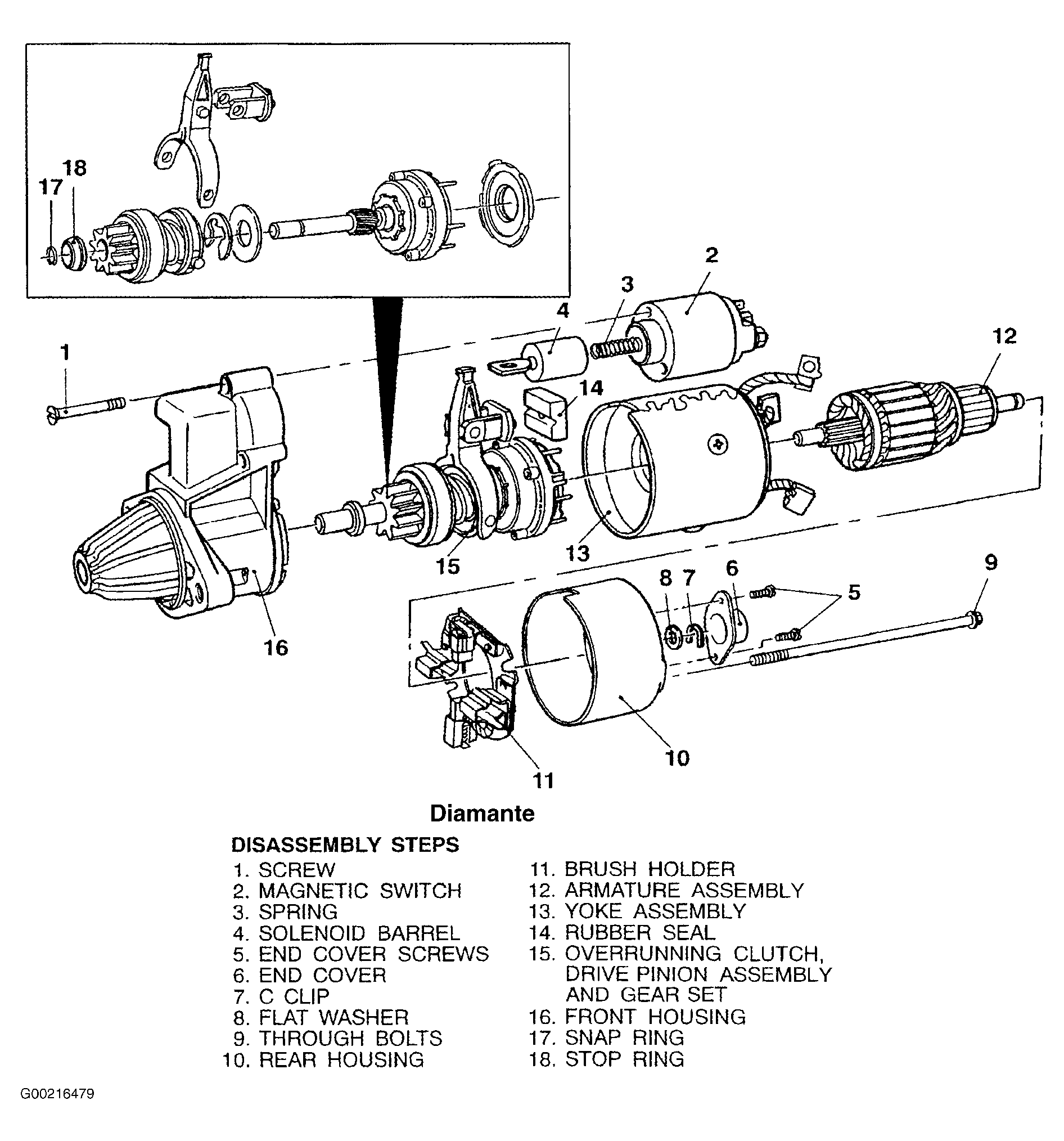

Fig 1: Exploded View Of Starter Motor (Diamante)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Exploded View Of Starter Motor (Eclipse & Galant)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Exploded View Of Starter Motor (Lancer & Mirage - Reduction Drive)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

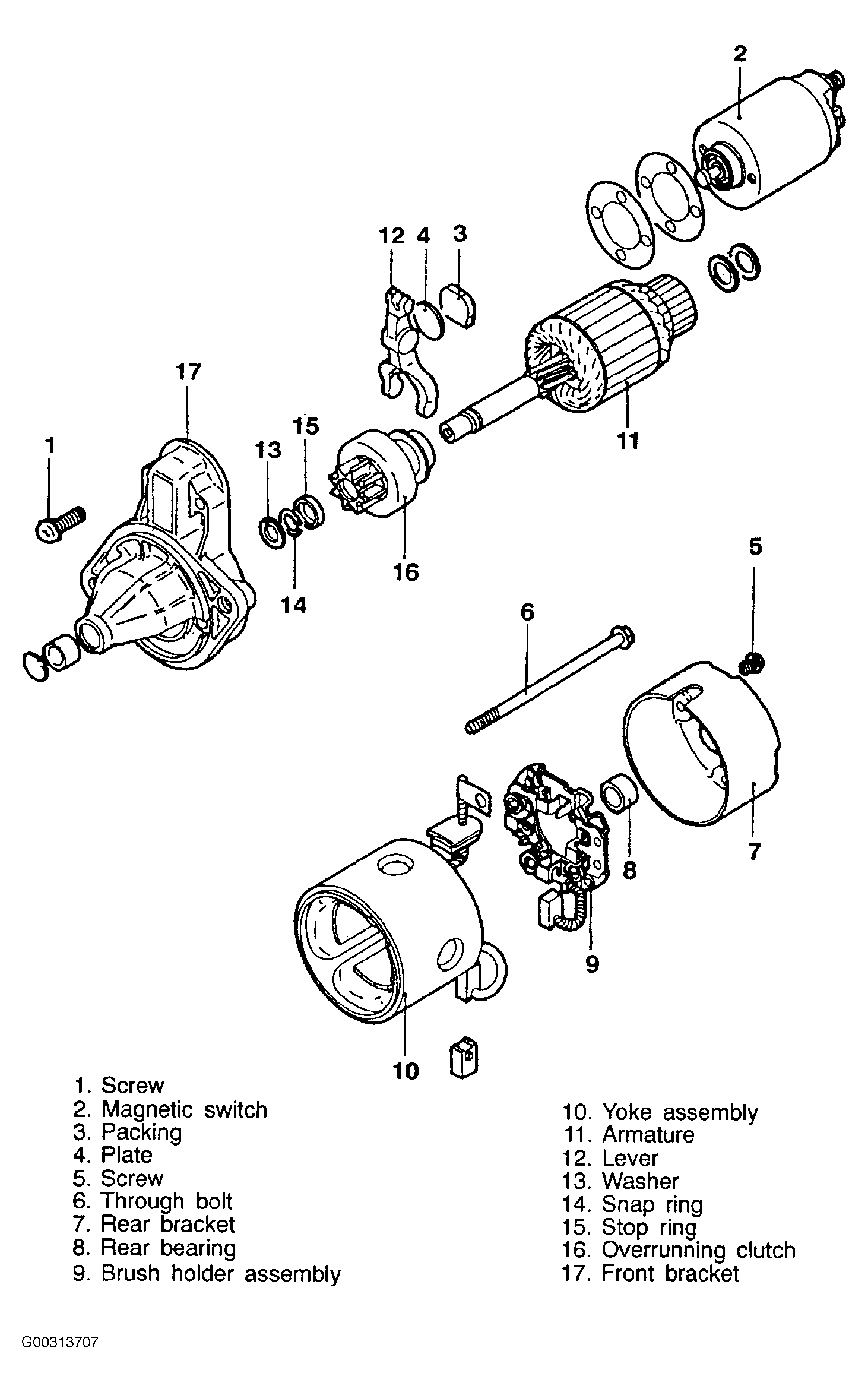

Fig 4: Exploded View Of Starter Motor (Mirage - Direct Drive)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Exploded View Of Starter Motor (Montero & Montero Sport)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
