Ignition Coil
Ignition coil is located in distributor. On Diamante, check primary coil resistance between distributor connector terminals No. 1 and 4. On Eclipse, Eclipse Spyder and Galant 3.0L and Mirage 1.5L, check primary coil resistance between distributor connector terminals No. 1 and 2. See Fig 1. On Diamante, check secondary coil resistance between distributor tower and distributor assembly connector terminal No. 1 or 4. On Eclipse, Eclipse Spyder, Galant 3.0L and Mirage 1.5L, check secondary coil resistance between distributor assembly connector terminal No. 1 and ignition coil tower. Primary and secondary coil resistance should be within specification. See IGNITION COIL RESISTANCE .
IGNITION COIL RESISTANCE - Ohms @ 68°F (20°C)
| Application | Primary | Secondary | ||
|---|---|---|---|---|
| Diamante 3.5L | 0.50-0.70 | 9,000-13,000 | ||
| Eclipse 3.0L, Eclipse Spyder 3.0L & Galant 3.0L | 0.56-0.68 | 9,400-12,800 | ||

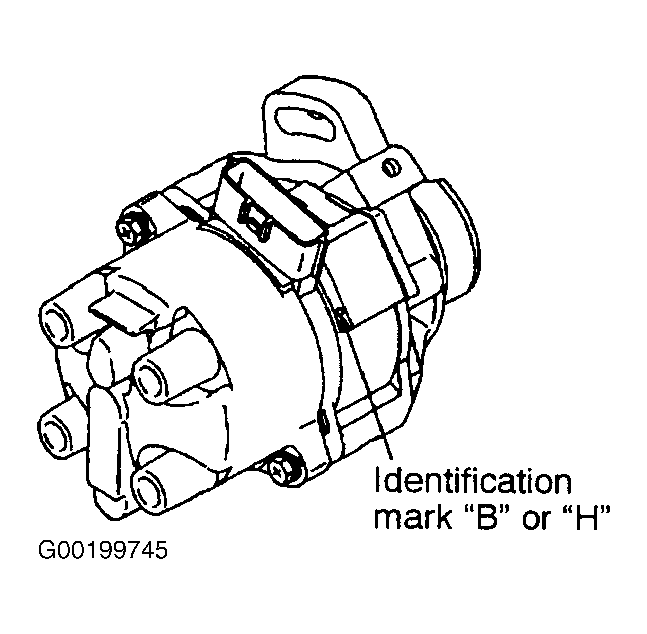

| Mirage 1.5L ID Mark "B" (1) | 0.53-0.65 | 15,000-22,000 | ||
| Mirage 1.5L ID Mark "H" (1) | 0.61-0.75 | 12,000-16,500 | ||
|
||||
