Malfunction Indicator Light: Notes

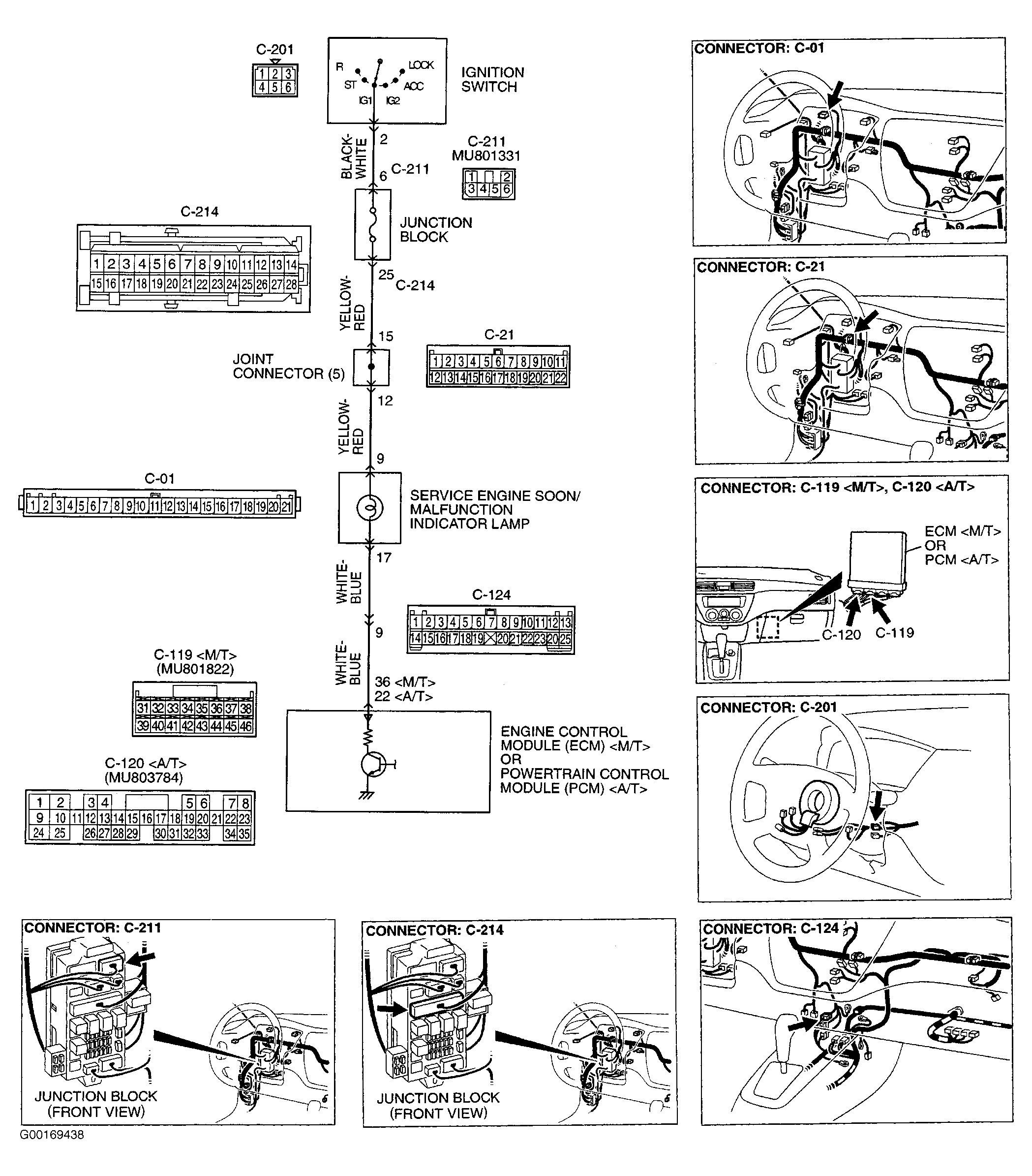

Fig 1: Identifying MIL Circuit, Component & Connector Location
G00169438Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Identifying Power Supply Circuit, Ignition Switch Circuit, Component & Connector Location
G00169439Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
